10
En
(North American models)
DIGITAL IN COAXIAL and OPTICAL jacks
REMOTE CONTROL jack
UNIVERSAL PORT jack
ETHERNET port
MONITOR OUT V and S jacks
HDMI IN and OUT jacks
COMPONENT VIDEO IN and MONITOR OUT
jacks
FM ANTENNA jack and AM ANTENNA terminal
PC IN jack
Power cord (North American models)
GND screw
Composite, S-Video and analog audio jacks
( BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, PC IN, TV/CD IN and PHONO IN)
Multichannel input jacks
( FRONT L/R, CENTER, SURR L/R, SURR BACK
L/R and SUBWOOFER)
PRE OUT jacks
( FRONT L/R, CENTER, SURR L/R,
SB/FH/FW * L/R, SUBWOOFER)
* SB···Surround Back, FH···Front High, FW···Front Wide
ZONE 2 LINE OUT jacks
Speaker Terminals
( FRONT L/R, CENTER, SURR L/R,
SURR BACK L/R, FRONT HIGH L/R and
FRONT WIDE/ZONE 2 L/R)
AC INLET (Chinese models)

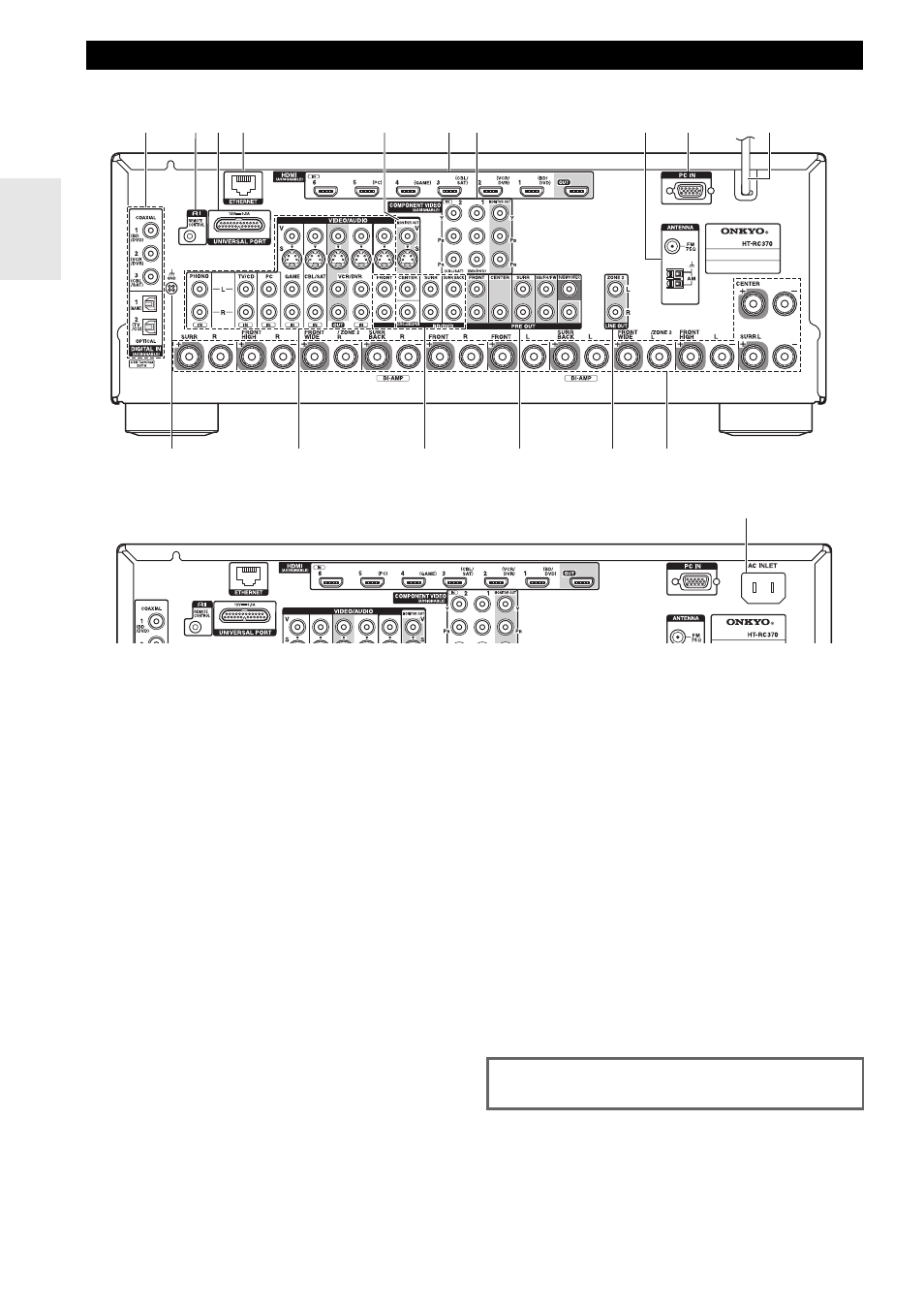

Rear Panel
(Chinese models)
See “Connecting the AV Receiver” for connection
(
➔
pages 12 to 21).
