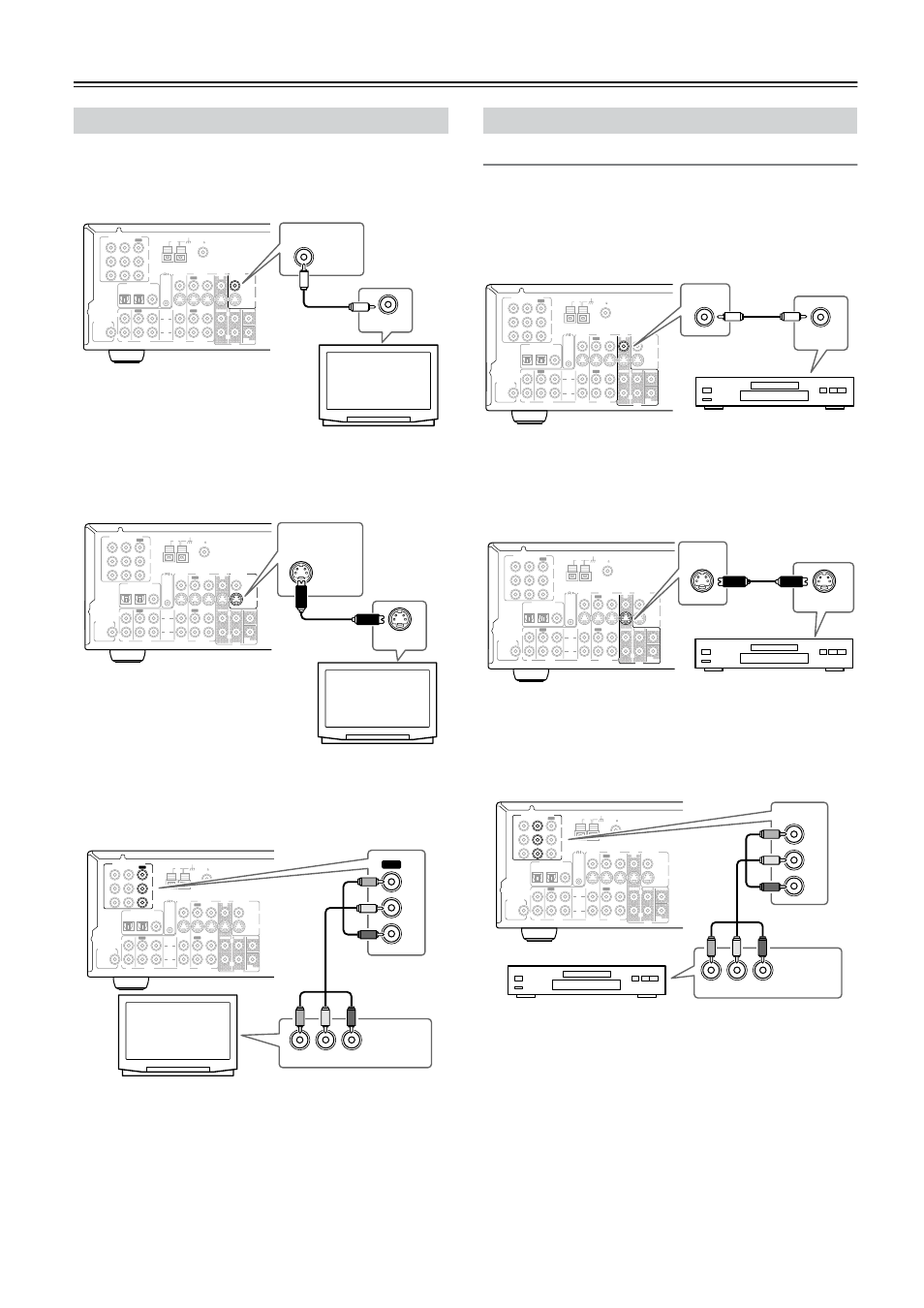

Connecting Your AV Components—Continued
■
Using Composite Video
Use a composite video cable to connect the TX-SR501/
TX-SR501E’s VIDEO MONITOR OUT to a composite
video input on your TV, as shown.
■
Using S-Video
Use an S-Video cable to connect the TX-SR501/
TX-SR501E’s S VIDEO MONITOR OUT to an S-Video
input on your TV, as shown.
■
Using Component Video
Use a component video cable to connect the TX-SR501/
TX-SR501E’s COMPONENT VIDEO OUT connectors to
the component video inputs on your TV, as shown.
Video Connections
■
Using Composite Video
Use a composite video cable to connect the TX-SR501/
TX-SR501E’s VIDEO DVD IN to the composite video out-
put on your DVD player, as shown.
• Your TV must also be connected via composite video.
■
Using S-Video
Use an S-Video cable to connect the TX-SR501/
TX-SR501E’s S VIDEO DVD IN to the S-Video output on
your DVD player, as shown.
• Your TV must also be connected via S-Video.
■
Using Component Video
Use a component video cable to connect the TX-SR501/
TX-SR501E’s COMPONENT DVD IN connectors to the
component video outputs on your DVD player, as shown.
• Your TV must also be connected via component video.
Connecting Your TV or Projector
