Oster Juice Extractor 3157 - Manual (Page 7)

6
AFTER USING YOUR JUICE EXTRACTOR
Before cleaning and storing your juice extractor, follow the instructions below to
disassemble the unit:
• Turn juice extractor off “O” and unplug it
from the electrical outlet
(Figure 1)
• Remove the jar and the pulp collector
container by tilting it slightly
(Figure 2)
• Unlock the safety locking arms to release
the cover/lid
(Figure 3)
• Lift the lid up and remove it from the juice
extractor
(Figure 4)
• In order to remove the filter basket and the
filter, hold the filter basket with two hands
and then lift it straight up
(Figure 5)
WARNING: THE STAINLESS STEEL FILTER BASKET CONTAINS SMALL SHARP BLADES
TO CUT AND PROCESS FRUITS AND VEGETABLES. DO NOT TOUCH BLADES WHEN
HANDLING THE FILTER BASKET.

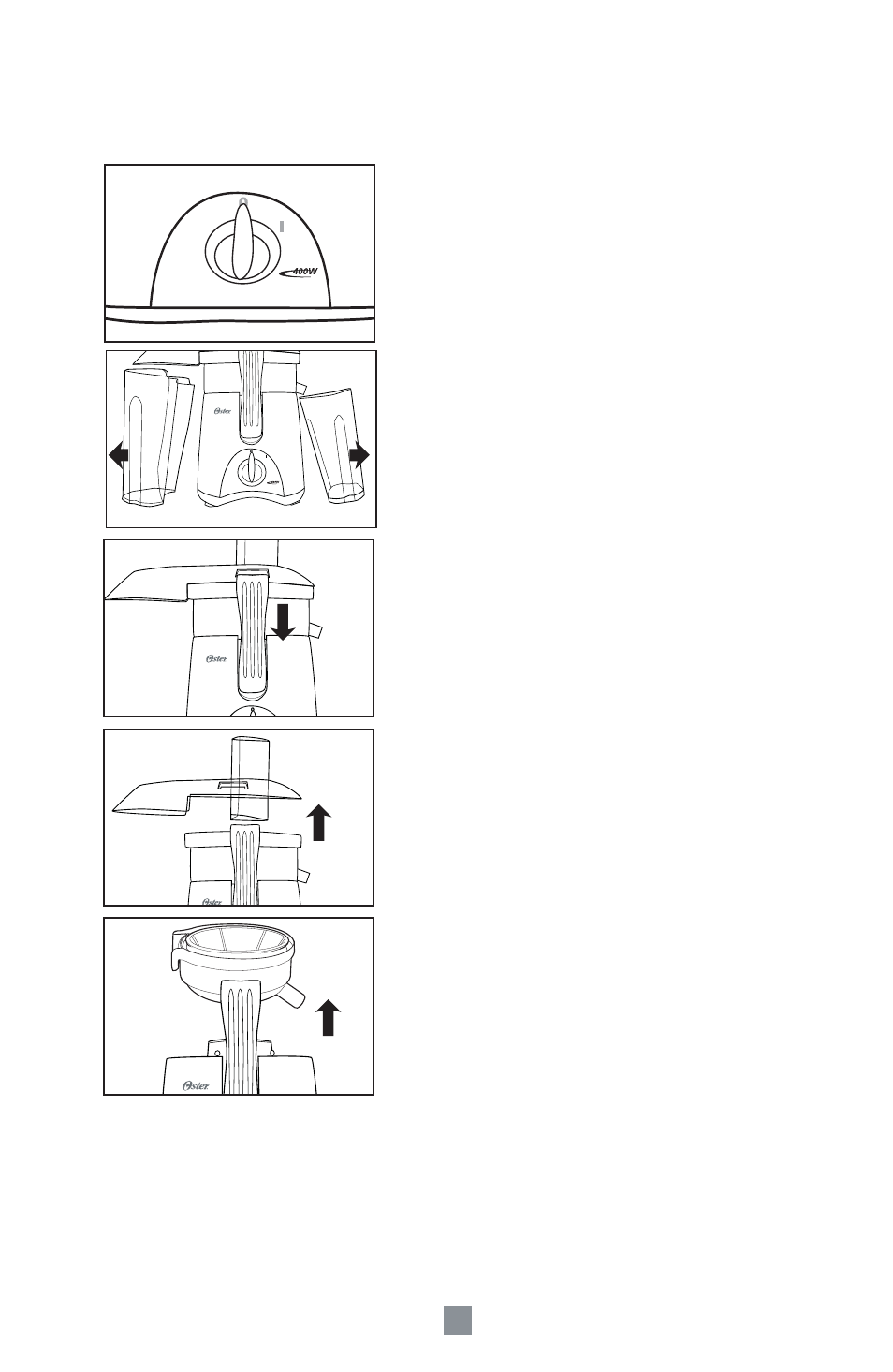

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
