1. Three-line display
Facilitates easy reading of remote and indoors temperatures
and calendar clock.
2. Down ( ) button
Decreases the value of a setting.
3. Up ( ) button
Increases the value of a setting.
4. MODE/SET button
Toggles the display modes and confirms entry while setting
the values for display.
5. Memory (MEM) button
Recalls the maximum or minimum temperature of main and
remote unit.
6. Alarm ( ) button
Displays the alarm time or sets the alarm status.
7. Wall-mount recess hole
For mounting the main unit on a wall.
8.
°
C /
°
F button
Selects between degrees Centigrade (
°
C) and Fahrenheit
(
°
F).
9. RESET button
Returns all settings to factory defaults.
10. Battery compartment
Accommodates 2 X UM-4 “AAA” size 1.5V alkaline batteries.
11. Removable table stand
For standing the main unit on a flat surface.

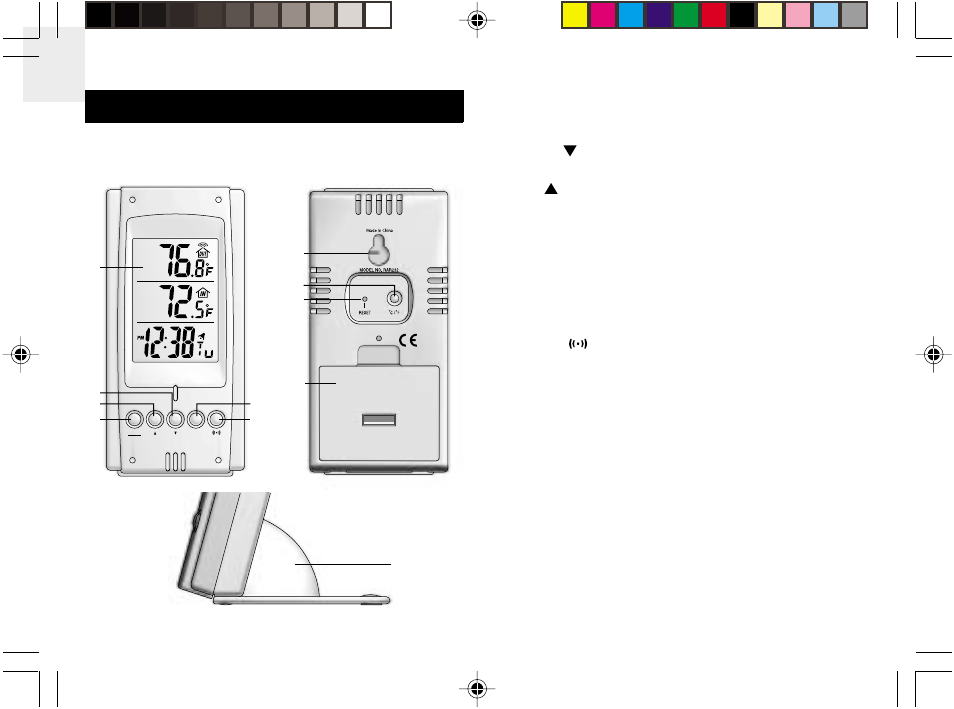

PRODUCT OVERVIEW
MAIN UNIT
FRONT VIEW BACK VIEW
11
