11
Getting to Know the CD Receiver—Continued
The page numbers in parentheses show where you can find the main explanation for each item.
A LINE 1 IN (CR-515DAB) (25)
This analog audio input is for connecting a compo-
nent with an analog output, such as a TV, or a turn-
table with a built-in phono equalizer.
B MD/TAPE IN/OUT (20, 21)
These analog audio inputs and outputs are for con-
necting a recorder with an analog input and output,
such as a MiniDisc recorder or cassette deck.
C DAB ANTENNA (17)
This jack is for connecting a DAB antenna.
D AM ANTENNA (16, 17)
These push terminals are for connecting an AM
antenna.
E FM ANTENNA (16, 17)
This jack is for connecting an FM antenna.
F SUBWOOFER PRE OUT (19)
This jack is for connecting a powered subwoofer.
G DC OUT (CR-515DAB only)
This jack is for powering the Onkyo UWL-1 Wire-
less USB Audio Transport. Only connect the special
cable included with the UWL-1. Do not connect any
other cable, as it will cause a malfunction. See the
UWL-1’s instruction manual for more information.
H SPEAKERS (18)
These terminal posts are for connecting speakers.
I REMOTE CONTROL (20–24)
This (Remote Interactive) jack can be con-
nected to an jack on another Onkyo component.
The CD receiver’s remote controller can then be
used to control that component. To use
, you
must make an analog audio connection (RCA)
between the CD receiver and the other component,
even if they are connected digitally.
J OPTICAL DIGITAL IN (CR-515DAB only) (24)
This optical digital audio input can be used to con-
nect a component with an optical digital output,
such as a CD recorder, MD recorder, games con-
sole, satellite tuner, or personal computer. Use a
commercially available optical digital audio cable
to make the connection.
K DOCK/CDR IN/OUT (CR-515DAB) (22, 23)
These analog audio inputs and outputs are for con-
necting a recorder with an analog input and output
such as a CD recorder, or an Onkyo RI Dock.
L AC INLET (25)
The supplied power cord is connected here.
M DOCK IN (CR-315DAB) (22)
This analog audio input is for connecting an Onkyo
RI Dock.

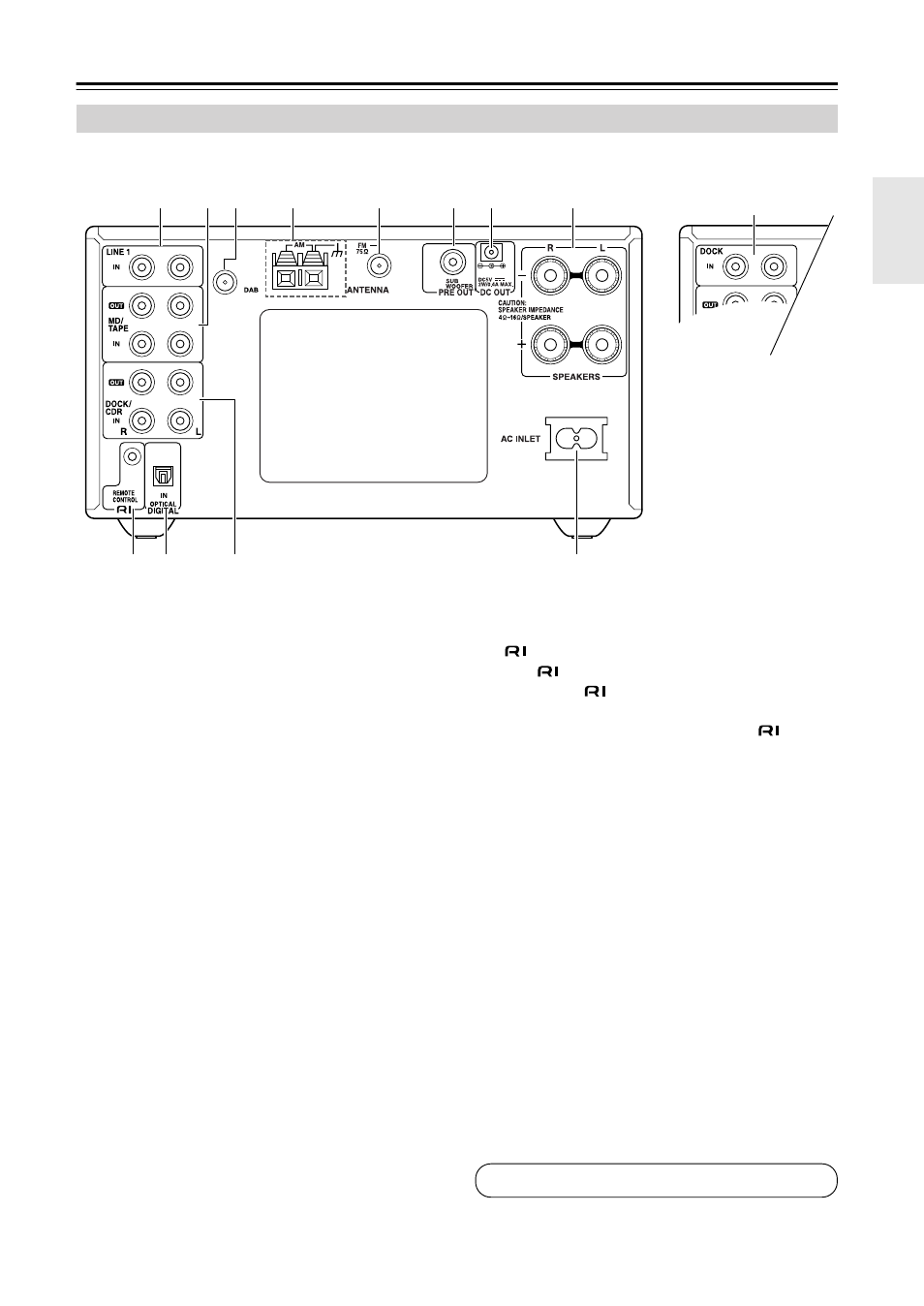

Rear Panel
1 2 H
M
7 4 5 6
I J K L
3
CR-515DAB CR-315DAB
See pages 16–25 for connection information.
