1C29
CABLE WITH CONVERTER/
DESCRAMBLER BOX OR SATELLITE
BOX
If your cable service supplies you with a converter
box or if you use a satellite system, you can use the
basic connection shown in the illustration.
By using this connection you can also record scram-
bled channels. However, channel selection must be
made with the converter box or satellite box. This
means that channels cannot be changed using the
TV/DVD/VCR Remote Control. Unattended timer
recording is limited to one channel at a time.
PREPARATION FOR USE
CABLE WITHOUT CONVERTER/
DESCRAMBLER BOX
Use this connection if your cable system connects
directly to your TV/DVD/VCR without a converter
box.
By using this connection you can:
1) Use the TV/DVD/VCR remote to select channels.
2) Program one or more unscrambled channels for
Automatic Timer Recording.
NOTE: This TV/VCR/DVD will ONLY record and
view the same channel.
VHF/UHF SEPARATE ANTENNAS
In some areas it will be necessary to use an outdoor
antenna.
Antenna/Cable Connections
Continued on the Next Page.
ANT.
IN
OUT
or
VHF/UHF Antenna
(Not supplied)
VHF/UHF
Combiner
(Not supplied)
Flat twin-lead cable
UHF Antenna
(Not supplied)
VHF Antenna (Not supplied)
From Cable
System
75-ohm Coaxial
Cable (Not
supplied)
75-ohm
Coaxial
Cable
(Not sup-
plied)
Satellite Box or
Cable Box (Not supplied)
From Cable System or
Satellite Dish
43. MUTE Button
Mutes the sound. Press it again to resume sound.
44. SLEEP Button [TV/VCR P.34]
Sets the Sleep Timer.
45. SELECT Button
Press to switch TV/VCR and DVD mode. You
can see the mode (TV/VCR or DVD) on the front
panel indicator.
46. ANT. in Jack
Connect to an antenna, cable system, or satellite
system.
47. Power cord
Connect to a standard AC outlet (120V/60Hz).
NOTE: Remove the power cord from the hook to
avoid breaking a wire before you connect
to a standard AC outlet.
48. COAXIAL digital audio out Jack
Connect to the digital input of an external
amplifier or decoder for DVD audio only.
49. AUDIO L/R output Jack
Connect to the analog audio input of an external
amplifier or decoder.

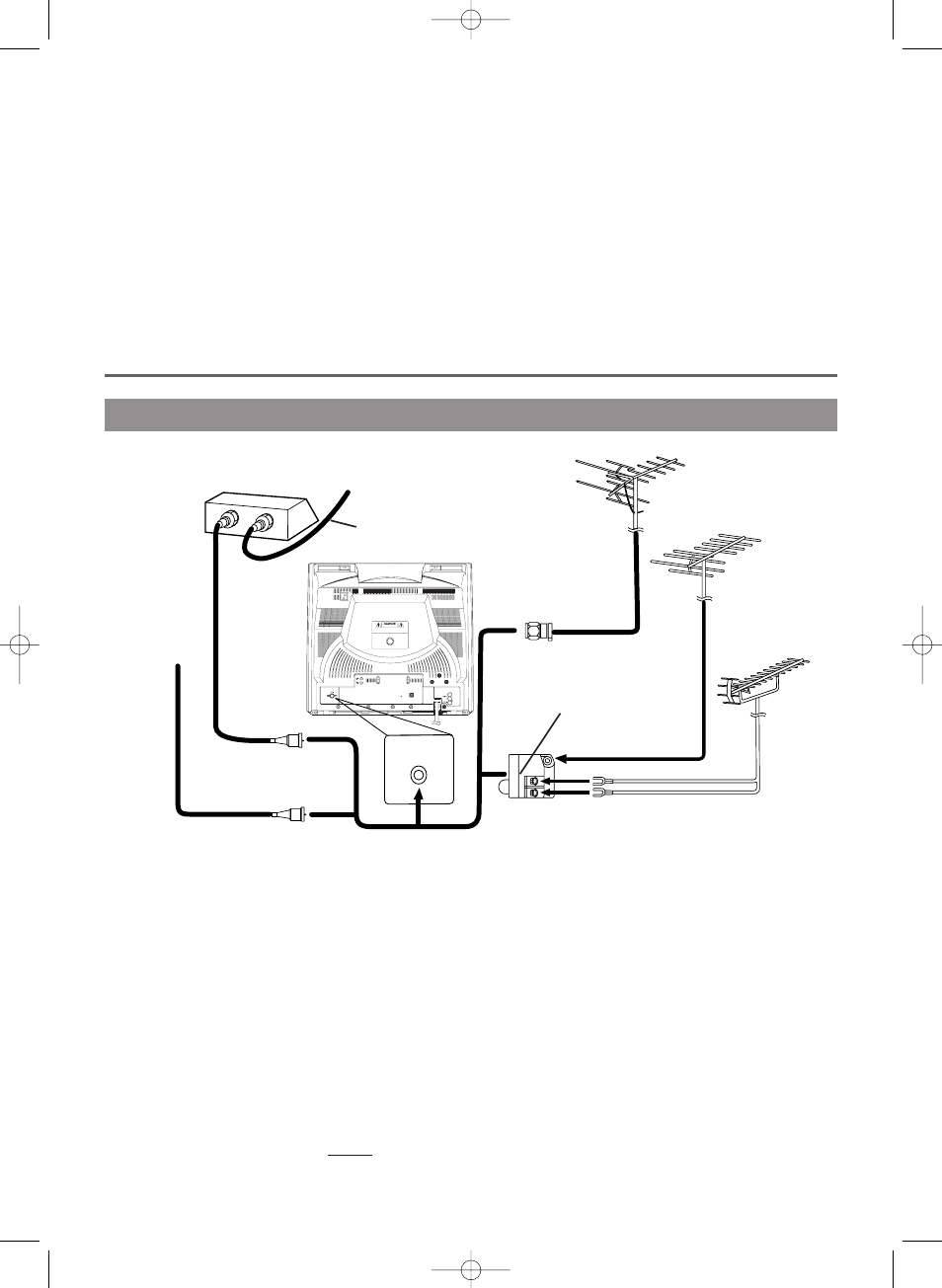

[Fig. 4]
ANTENNA/CABLE CONNECTION
or
or
