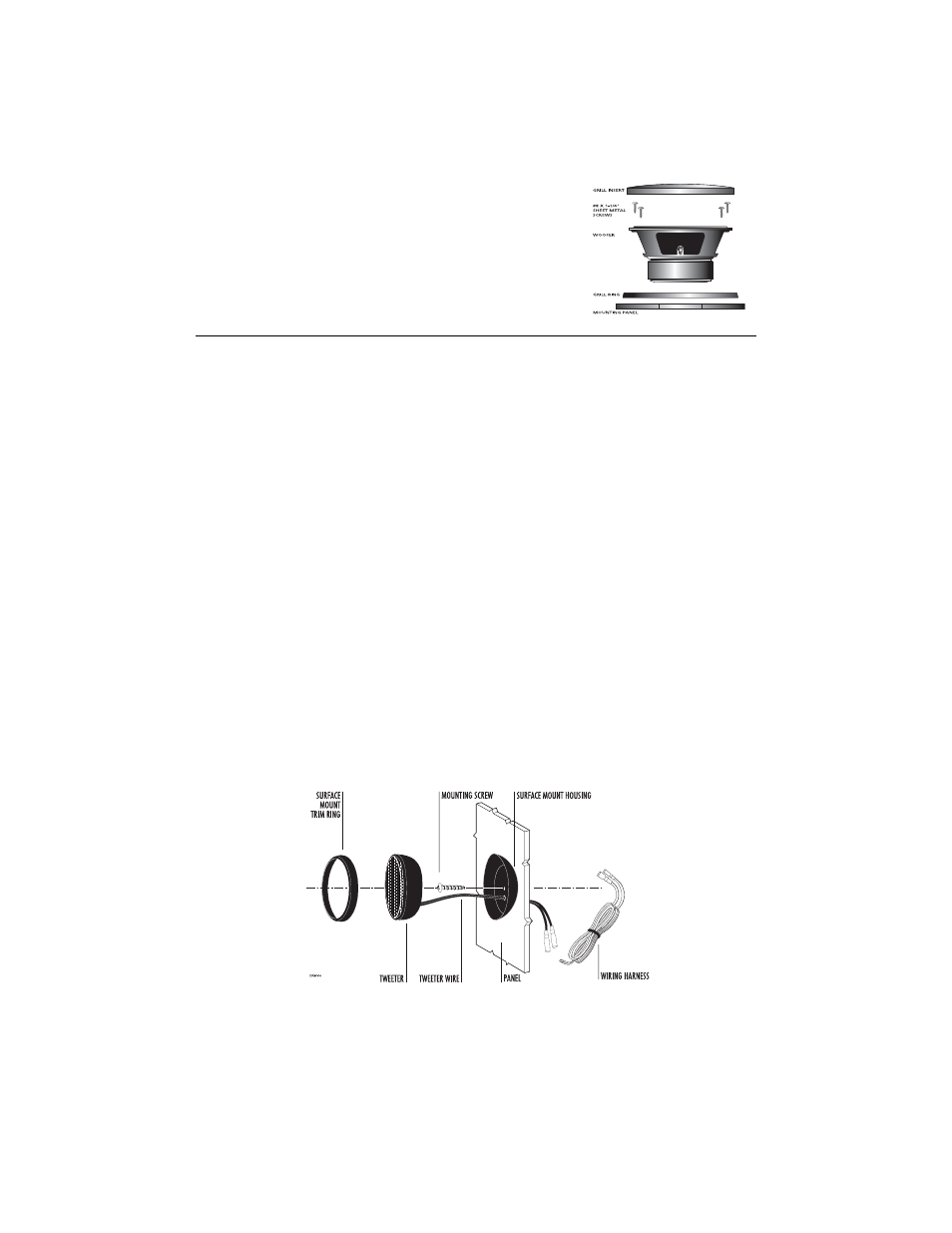

Step 9: Mount the speaker- The speaker is placed
in the grille ring from the front. Place the
speaker and the grille ring in the installa-
tion hole. Align the mounting screw holes
and drive in the four mounting screws. Push
the perforated metal grille back into the
grille ring.
INSTALLING THE TWEETER
SURFACE MOUNTING
Step 1: Determine the tweeter mounting location, then route the wires
from the crossover to the tweeter location.
Step 2: Place the surface mount housing against the panel and mark the
two holes at the rear of the housing.
Step 3: Drill the smaller center hole using a 1/8" drill bit. This is the
mounting screw hole.
Step 4: Drill the larger off-center hole using a 3/8" drill bit, insert a
grommet and route the speaker wire from the crossover through
the grommet.
Step 5: After removing the surface mount tweeter assembly trim ring, route
the tweeter wires through the larger hole in the housing and
connect to the speaker wires from the crossover. (See Figure 4.)
Step 6: Insert the excess speaker wire into the hole and position the housing
so the housing will not pinch the wires after final mounting.
Step 7: Attach the housing using the supplied screws of the correct length
for a solid mount.
Step 8: Insert the tweeter into the housing and attach the trim ring.
