TOOLS OF THE TrADE
Listed next are the majority of the tools required to perform an installation . Having the proper
tools will make the installation that much easier . Some of these tools are necessities; some will
just make the job easier .
●
Allen Wrenches (2mm and 4mm)
●
DMM or VOM
●
Electric drill with assorted drill bits
●
Grommets
●
Heat shrink tubing
●
Marking pen
●
Phillips and flat blade screw drivers
●
Nylon tie straps
●
Pliers (standard and needle nose)
●
Wire crimper
●
rTA (real time analyzer)
●
Wire cutters
●
Soldering iron and solder
●
Wire strippers
●
Utility knife
●
Wire brush or sandpaper for chassis grounding
●
reference CD with kHz Sine Wave at 0dB level (all bits high)

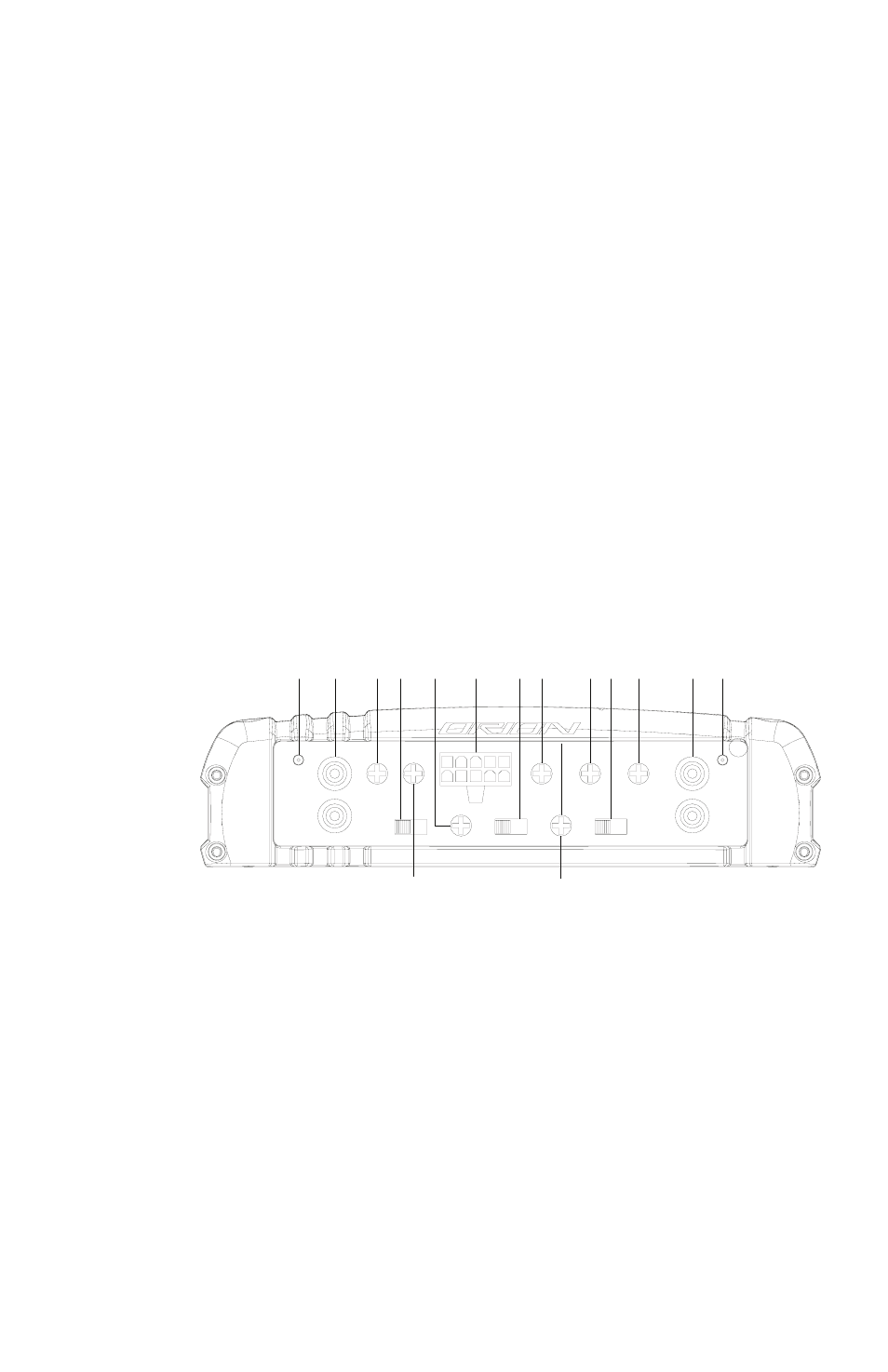

END PANEL LAyOUTS
Input Plate
Figure
Figura
Abbildung
2
3 4
5
6
7 8
9 10 11
13
14
15
12
1
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
2
3
2
2
3
2
1
CO600.2
CO800.1
CO500.1
CO300.2
5
4
4
5
CO600.4
1
1
2
3
2
4
5
1
11
10
9
8
7
6
5
4
3
2
2
3
1
4
5
. Power LED - when lit indicates that the amplifier is on .
2 . RCA Front Inputs - accepts rCA input from the front channels of a source unit .
3 . Front Gain Control - continuously adjusts from 250mV to 5V for full front channel
output power .
4 . Front FULL, HPF Switch - selects either Hi-pass crossover or Full range for front chan-
nels .
5 . Front Variable Bass Control - Adjust bass gain on front channels from 0dB to
+8dB .
6 . High Level Input - connect speaker output from factory radio to amplifier, will auto
sense signal from radio and turn amplifier on when needed, turn off after minute
without signal .
7 . 2 ch / 4 ch switch - allows all amplifier channels to have input from either 2 channel
input (front) or all 4 channel inputs
