With this hookup, you can use the tuner in your VCR or DVR to listen to your favorite TV programs
via the AV receiver, which is useful if your TV has no audio outputs.
• To enjoy Dolby Digital and DTS, use connection
or
.
Connecting a VCR or DVR for Playback

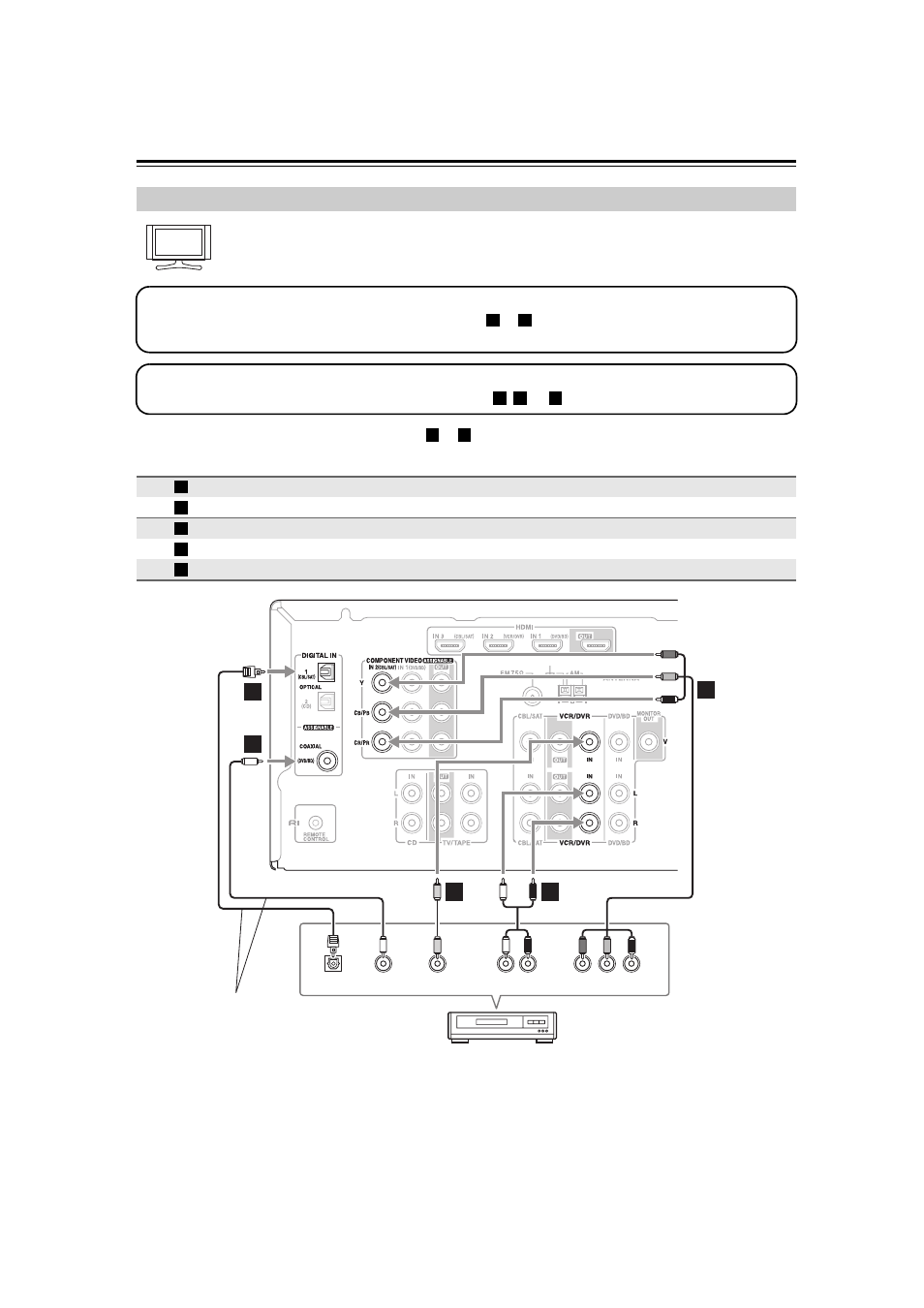

Connection
AV receiver
Signal flow
VCR or DVR
COMPONENT VIDEO IN 2 (CBL/SAT)
⇐
Component video output
VCR/DVR IN V
⇐
Composite video output
VCR/DVR IN L/R
⇐
Analog audio L/R output
DIGITAL IN COAXIAL (DVD/BD)
⇐
Digital coaxial output
DIGITAL IN OPTICAL 1 (CBL/SAT)
⇐
Digital optical output
Hint!
Step 1: Video Connection
Choose a video connection that matches your VCR or DVR (
or
)
, and then make the connection. You must
connect the AV receiver to your TV with the same type of connection.
A
B
Step 2: Audio Connection
Choose an audio connection that matches your VCR or DVR (
,
, or
), and then make the connection.
a
b
c
b
c
A
B
a
b
c
Y
COAXIAL
OUT
P
B
COMPONENT VIDEO OUT
P
R
AUDIO
OUT
VIDEO
OUT
L
R
OPTICAL
OUT
b
c
A
C
a
B
VCR or DVR
Connect one or the other
These connection must be
assigned (see page 36)
