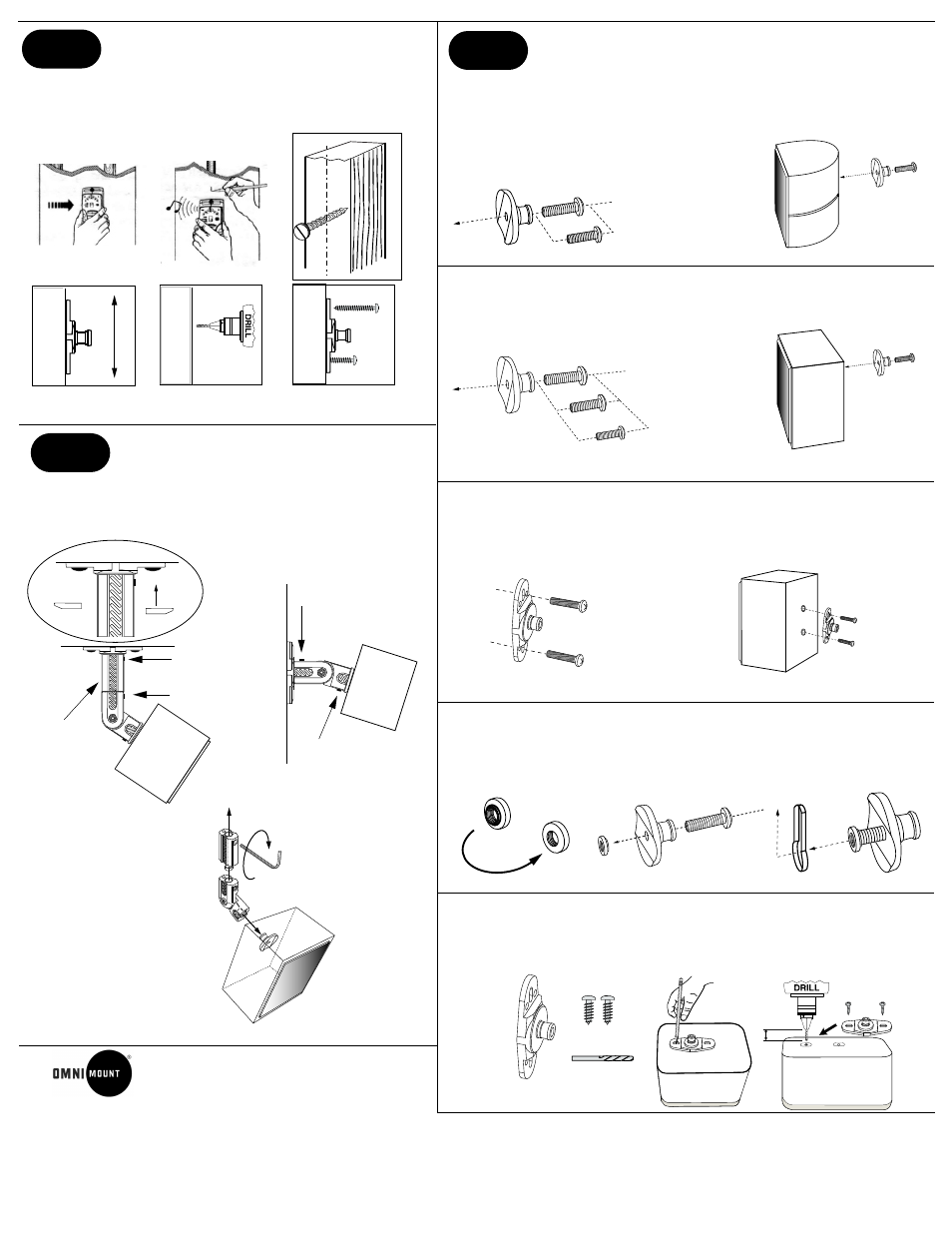

Step 3 Installation of wall plate (continued)
Step 4 Installation of speaker plate onto speaker
Mounting to solid wood or wood studs
.
Drill a pilot hole into center of each location using 3/32" drill bit (provided),
Drill 1-1/4'' into stud. Attach the plate with two #12 x 1-3/4" wood screws.
2. Speakers with single factory installed threaded insert.
3. Speakers with 2 installed 1/4''-20 or 6
MM
x 15
MM
threaded inserts.
5. Speakers without mounting holes - wood cabinet only.
fig. 4
wall � � ��
��� ���
wall
fig. 6
�
�
� �
� �
� �
#12 x 3/4''
3/32'' drill bit
1. Bose ® speakers with 4
MM
or 5
MM
inserts.
� Set screw location
Set screw location
Extension
Set screw locations
Screw covers
�
Step 5 Installation of adjusting knuckle
and extension.
OmniMount Systems, Inc.
The Pointe at South Mountain
8201 South 48th Street
Phoenix, Arizona 85044-5355
Toll free 1-800-MOUNT-IT
(480) 829-8000
Fax: (480)756-9000
email: [email protected]
Copyright 2004 OmniMount Systems, Inc.
All rights reserved. OmniMount products
are covered by patents issued and/or
pending. “OmniMount” is a registered
trademark of OmniMount Systems, Inc.
"Audio Basics" is a trademark of
OmniMount Systems, Inc.
AB-2 revision 2, 1/04 Part #1000254.
100% Replacement Warranty
Audio Basics products are engineered and manufactured to the highest standards. In the event that there are defects in materials,
workmanship, or missing parts, OmniMount Systems will, at its discretion, repair or replace your Audio Basics product. Claims that
are submitted must include either the sales slip or proof of purchase.
If OmniMount products are used for purposes other than their original intent, OmniMount Systems, its distributors and retailers shall
not be held responsible or liable for injuries or property damage, direct, indirect or consequential, which may arise from the inability
to use this product safely, properly, and in the manner for which it has been designed and manufactured.
This warranty does not apply to products which have been lost, damaged by misuse, abuse or accident, altered or repaired in any
way other than specified by OmniMount Systems, Inc.
This warranty is non-transferable.
For installation assistance please call our toll free help line at 1-800-MOUNT-IT
4. Speakers with a single keyhole in back.
Insert into keyhole and slide upward then tighten.
�
� �� �
1/4''-20 x 5/8'' or
6 MM x 15 MM
(not supplied)
�
� � � �� �� �� � � �
��� ���
fig. 2
fig. 3
