Getting to know Your Speaker Package
A POWER switch and indicator
To turn on the SKW-150X, set the POWER switch
to the ON position (the indicator lights up).
To turn off the SKW-150X, set the POWER switch
to the OFF position (the indicator goes out).
Red: The unit is in standby mode
Green: The unit is in operation mode
If the power is turned on, the SKW-150X automati-
cally enters Operational mode when a signal is input.
The SKW-150X automatically returns to Standby
mode when no signal has been input for a while.
B OUTPUT LEVEL control
This control is used to adjust the output level of the
subwoofer.
C LINE INPUT
The RCA input should be connected to the sub-
woofer preout on your AV receiver, amp, or other
receiver with supplied RCA cable.
Note:
The Auto Standby function turns the subwoofer on when the input signal exceeds a certain level. If the Auto Standby
function does not work reliably, try slightly increasing or decreasing the subwoofer output level on your receiver or amp.
A Speaker terminals
These push terminals are for connecting the speaker
to your AV Receiver, amp, or other receiver with the
supplied speaker cables. The supplied speaker
cables are color-coded for easy identification. Sim-
ply connect each cable to the same-colored positive
speaker terminal.
B Keyhole slots
These keyhole slots can be used to wall-mount the
speaker.
C Speaker mount/bracket inserts
These threaded inserts can be used to attach the
speaker to a speaker mount or bracket.
Note:
Use commercially available 5 mm screws to attach
the speaker to a speaker mount or bracket.
Using Rubber Stoppers with the Speakers
We recommend using the provided rubber stoppers to achieve the best possible sound from your speakers. The rubber
stoppers prevent the speakers from moving, providing a more stable setup.

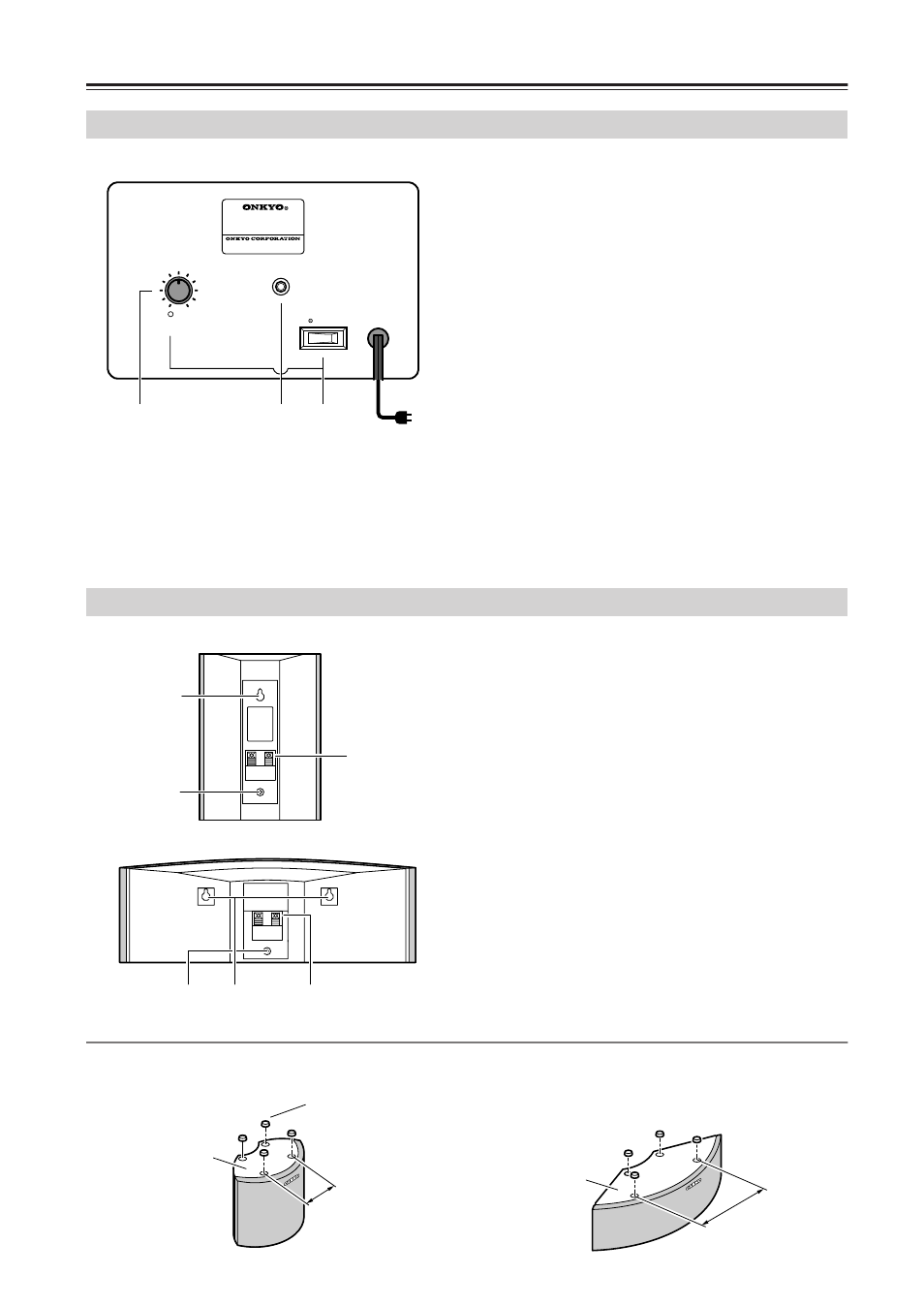

Subwoofer (SKW-150X)
2 3 1
OUTPUT
LEVEL
LINE
INPUT
MIN MAX
POWERED SUBWOOFER
MODEL NO. SKW- 150X
POWER
ON OFF
RED : STANDBY
GREEN : ON
■ Rear
To AC outlet
Front, Center & Surround speakers (SKF-330XF, SKC-330XC, SKM-330XS)
3
2
1
3 2 1
SKF-330XF/SKM-330XS Rear Panel
SKC-330XC Rear Panel
Rubber stoppers
Bottom of the
SKF-330XF/
SKM-330XS
Bottom of the
SKC-330XC
75 mm
175 mm
