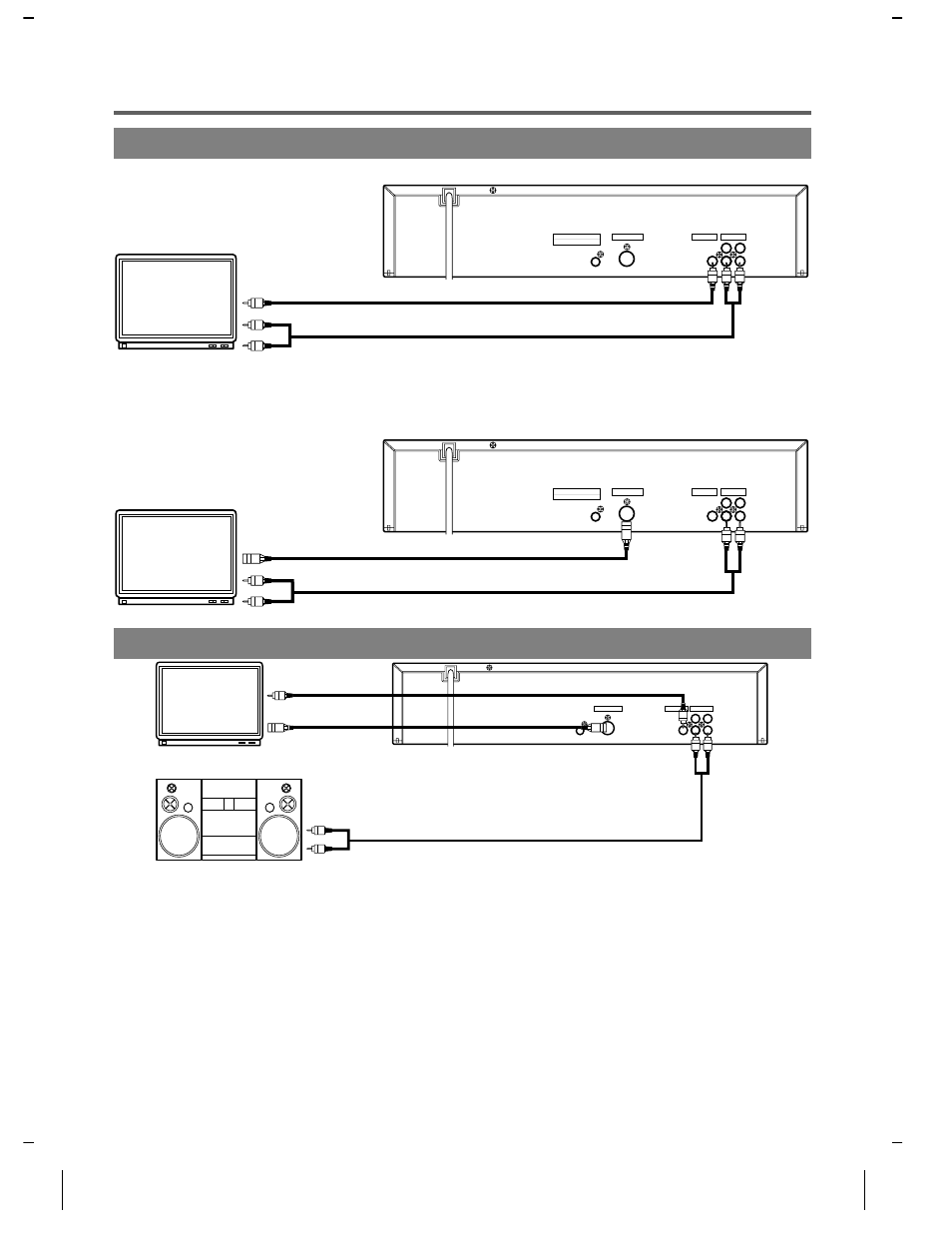

HOOKUPS
CONNECTING TO A TV
FOR TVs WITH S-VIDEO INPUT JACK
Use an S-Video cable (commercially available) in place of the yellow video cable to enjoy pictures at higher quality.
CONNECTING TO A STEREO SYSTEM
Notes
●
Connect the DVD player directly to a TV. If the A/V cables are connected to a VCR, pictures may be distorted
due to the copy protection system.
●
Be sure to turn off the power to all components in the system before connecting another component.
●
Refer to the Owner’s Manuals for your TV, stereo system and any other components to be connected to the
DVD player.
DIGITAL AUDIO OUT
PCM / BITSTREAM
AUDIO OUT
VIDEO OUT
S-VIDEO OUT
COAXIAL
R
L
1
2
To VIDEO INPUT jack
To VIDEO OUT jack
To Right (red) and Left (white)
AUDIO INPUT jacks
To Right (red) and Left (white)
AUDIO OUT jacks
A/V-compatible or
wide screen TV
DIGITAL AUDIO OUT
PCM / BITSTREAM
AUDIO OUT
VIDEO OUT
S-VIDEO OUT
COAXIAL
R
L
1
2
To S-VIDEO INPUT jack
To S-VIDEO OUT jack
To Right (red) and Left (white)
AUDIO INPUT jacks
To Right (red) and Left (white)
AUDIO OUT jacks
A/V-compatible or
wide screen TV
DIGITAL AUDIO OUT
PCM / BITSTREAM
AUDIO OUT
VIDEO OUT
S-VIDEO OUT
COAXIAL
R
L
1
2
To Right (red) and Left (white)
AUDIO OUT jacks
A/V-compatible
or
wide screen TV
Stereo system
To VIDEO INPUT jack
To VIDEO OUT jack
To S-VIDEO
INPUT jack
To S-VIDEO OUT jack
or
To ANALOG AUDIO INPUT jacks
[Fig. 1]
[Fig. 2]
[Fig. 3]
