6
C
OMPONENT NAMES
1
POWER button: Turns the power ON or in
STANDBY.
2
ON indicator: Lights up when the power is
ON.
3
STANDBY indicator: Lights up when the
power is in the standby mode. Disappears
when the power is ON.
4
INPUT SELECT button: Selects input termi-
nals.
5
VOLUME K (up) / L (down) button:
Increases or decreases the volume.
6
AUDIO OUT: Output terminals for audio.
7
AUDIO/VIDEO/S-VIDEO: Input terminals for
an audio and video signal. You can select
either VIDEO or S-VIDEO.
8
COMPONENT: Input terminals for a compo-
nent signal. You can make Y-Pb-Pr progres-
sive or interlaced connection.
9
AC IN terminal: Connect the supplied power
cable for a standard AC outlet.

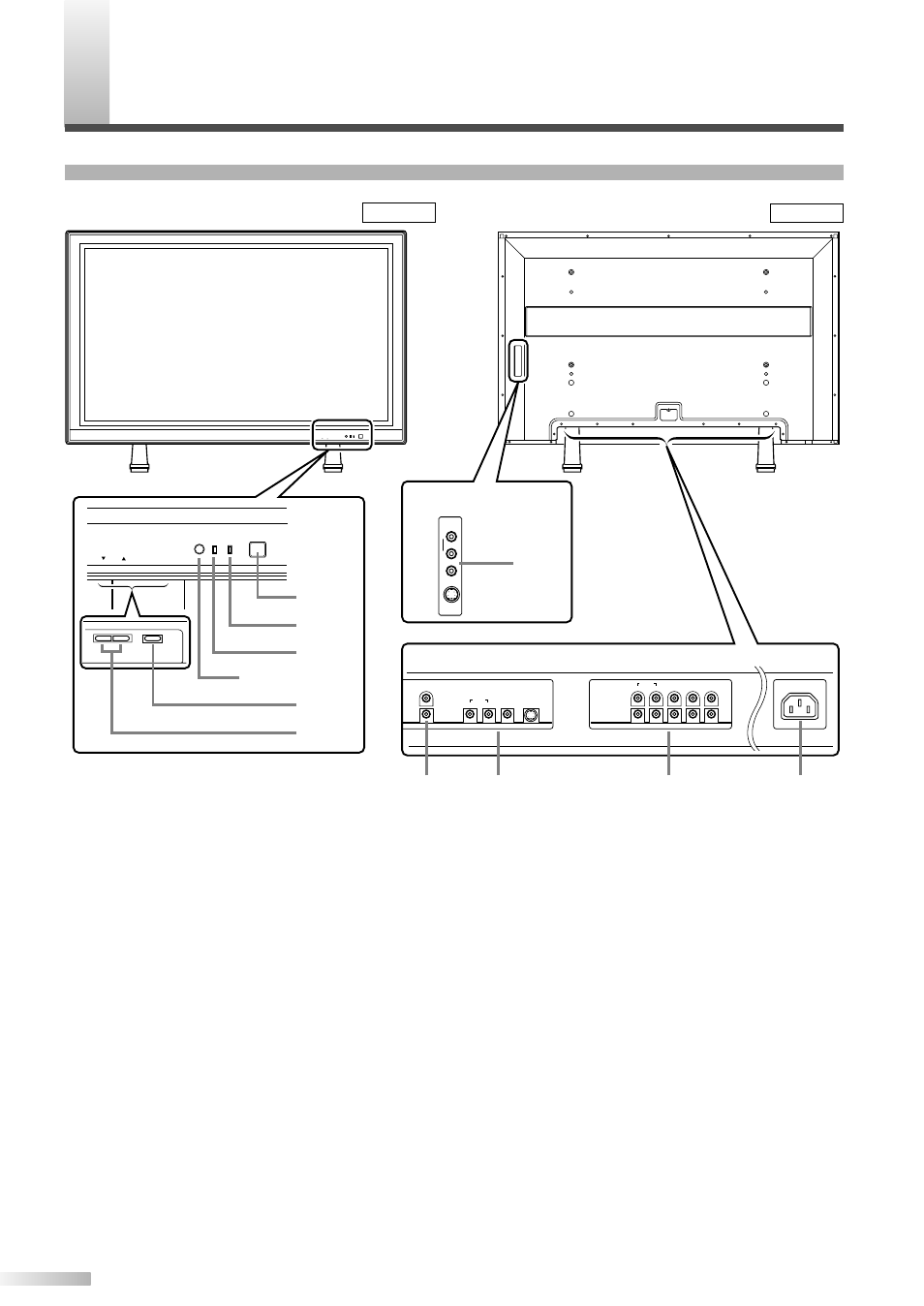

MAIN UNIT
VOLUME INPUT SELECT
STANDBY ON POWER
VOLUME INPUT SELECT
STANDBY ON POWER
1
2
3
4
Infrared Sensor
5
Output / Input Terminals
Input Terminals
A C I N
AUDIO
VIDEO2
S-VIDEO2
R
L
6 7
7
8 9
VIDEO1
AUDIO
S-VIDEO1 L R
R
L
AUDIO OUT R L Y P b P r
R L Y P b P r
AU D I O
COMPONENT 1
COMPONENT 2
INNER JACKS
Front Rear Figure 2 Figure 3
