Connections
Connecting the AV Receiver
Connecting the Speaker Cables

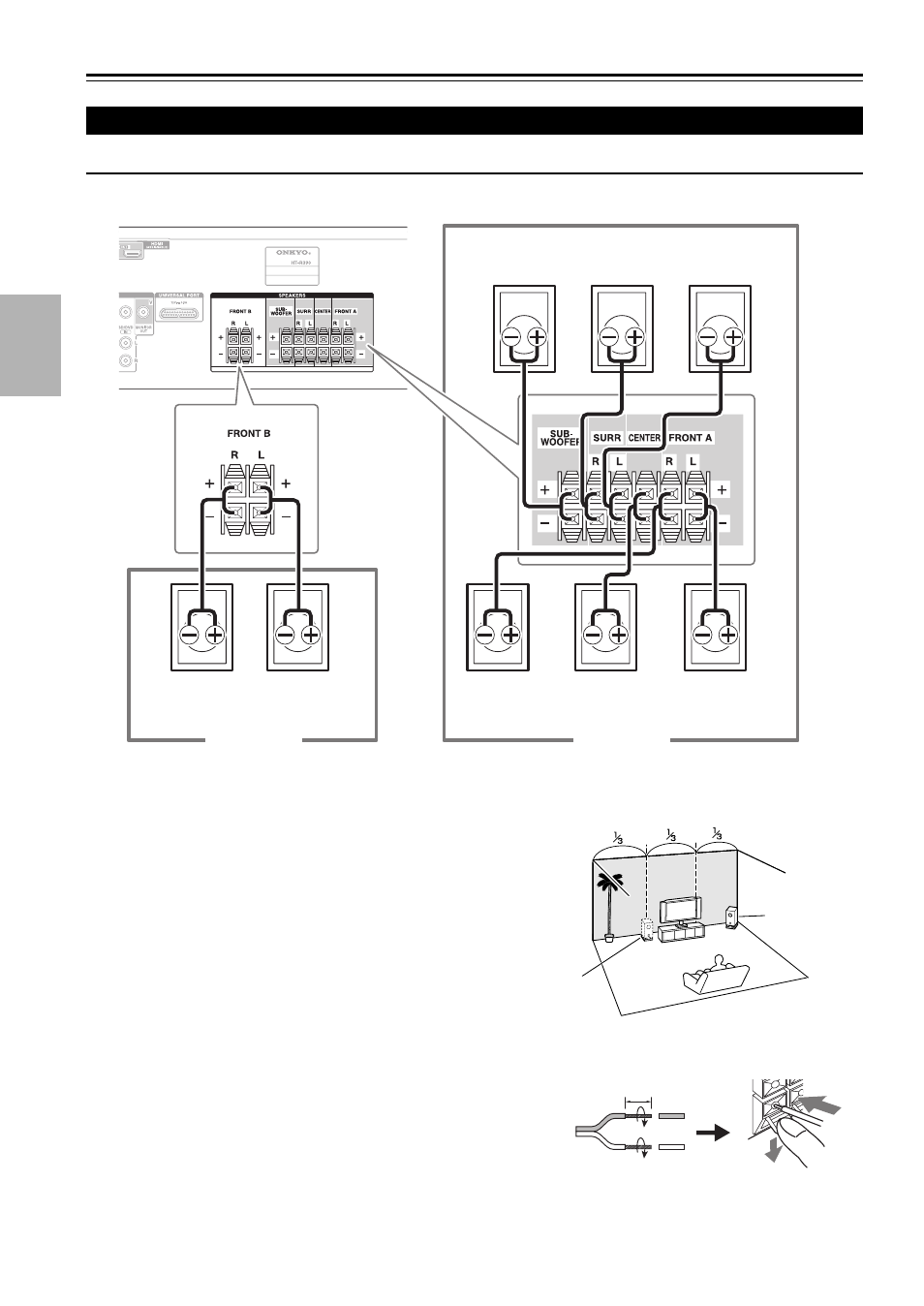

The following illustration shows which speaker should be connected to each pair of terminals.
■
Using a Passive Subwoofer.
To find the best position for your subwoofer, while playing a
movie or some music with good bass, experiment by placing
your subwoofer at various positions within the room, and
choose the one that provides the most satisfying results
■
Push-type speaker terminals
Strip 3/8" to 1/2" (10 to 12 mm) of insulation from the ends of the
speaker cables, and twist the bare wires tightly, as shown.
Connecting Your Speakers
Surround
right
Surround
left
Front B right Front B left Front A left Front A right Center
Speakers A Speakers B
Passive
Subwoofer
Corner
position
1/3 of wall
position
3/8" to 1/2" (10 to 12 mm)
