• Be sure to turn off your amplifier before connecting
the speaker system. Connecting it while the amplifier
is on may result in damage to the amplifier or the
speaker system.
• The nominal impedance of this speaker system is 8 Ω .
Use only amplifiers capable of handling this imped-
ance.
• Use the supplied speaker cable to connect between
the speaker’s input terminals and the amplifier’s
speaker terminals as illustrated below.
• Be sure to connect the Surround Back speaker with
the amplifier’s corresponding speaker terminals.
Also, be sure that you are connecting the speaker’s
positive (+) and negative (–) input terminals with the
amplifier’s corresponding positive and negative
speaker terminals. Otherwise, undesirable sound field
or impaired bass-range reproduction will result.
• Before turning on the amplifier’s power switch, pull
lightly on the speaker cable to ensure that they are
connected securely.
• To prevent damage to cir-
cuitry, never short-circuit the
positive (+) and negative (–)
speaker wire.
• This speaker system can handle the specified input
power when it is used for ordinary music reproduc-
tion. If the following abnormal signals are fed to the
speaker, however, an overcurrent may flow in the
internal circuits, causing burning or breakage of the
wires even if the input power is below the specified
rating.
1. Noise produced when FM station is not tuned in.
2. Sound produced when fast-forwarding cassette
tape deck.
3. High-frequency sound generated by an oscillator,
an electronic musical instruments, etc.
4. Oscillating amplifier signals.
5. Special test signals produced by audio checking
CD, etc.
6. Sound produced when connecting or disconnect-
ing audio connection cables. (Always turn off the
amplifier’s power before connecting or discon-
necting cables.)
7. Howling when a microphone is used.
• Do not place magnetic objects such as screwdrivers
and iron parts near the speaker system since they use
speaker with strong magnets. Otherwise, the objects
may be attracted, causing injury or damaging the dia-
phragm.
Type: 2-way bass reflex
Impedance: 8
Ω
Maximum input power: 100 W
Output sound pressure level: 81 dB
Frequency response: 60 Hz - 35 kHz
Crossover frequency: 6000 Hz
Cabinet capacity: 1.2 l
Speaker (woofer): 8 cm cone
Speaker (tweeter): 2.5 cm balanced dome
Dimensions: 104 (W)
×
169 (H)
×
127 (D) mm
(Overall dimensions)
Weight: 1.1 kg
Specifications and appearance are subject to change for
improvement without prior notice.
In catalogs and on packaging, the letter added to the end
of the product name indicates the color of the SKR-
3600. Specifications and operation are the same regard-
less of color.

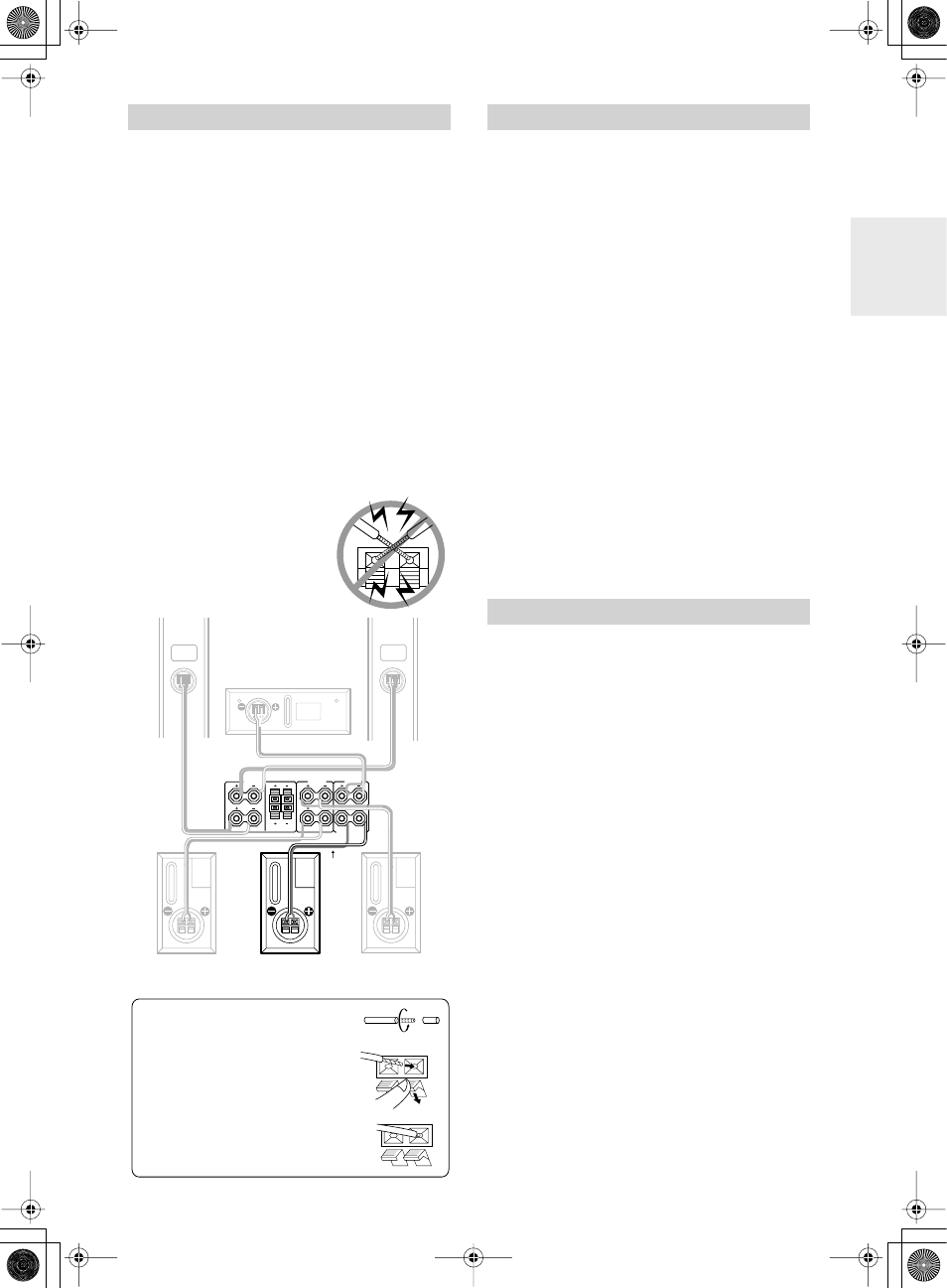

Connections
SURROUND BACK SPEAKER
FRONT SPEAKERS SURROUND SPEAKERS CENTER SPEAKER
R
L
R
L
A B
R
L
SKF-3600
Front right
speaker SKF-3600
Front left
speaker
SKC-3600
Center speaker
SKM-3600
Surround right
speaker SKM-3600
Surround left
speaker
Brown
1. Strip the insulation of speaker
cables, and twist the core wires
tightly.
2. While pressing the lever, insert
the wire into the hole, and then
release the lever.
3. Make sure that the terminals
are gripping the core wires, not
the insulation.
SKR-3600
Surround back
speaker
Precaution on use
Specifications
