4.2 Wiring (Continued)
115Vac - Single phase power wiring

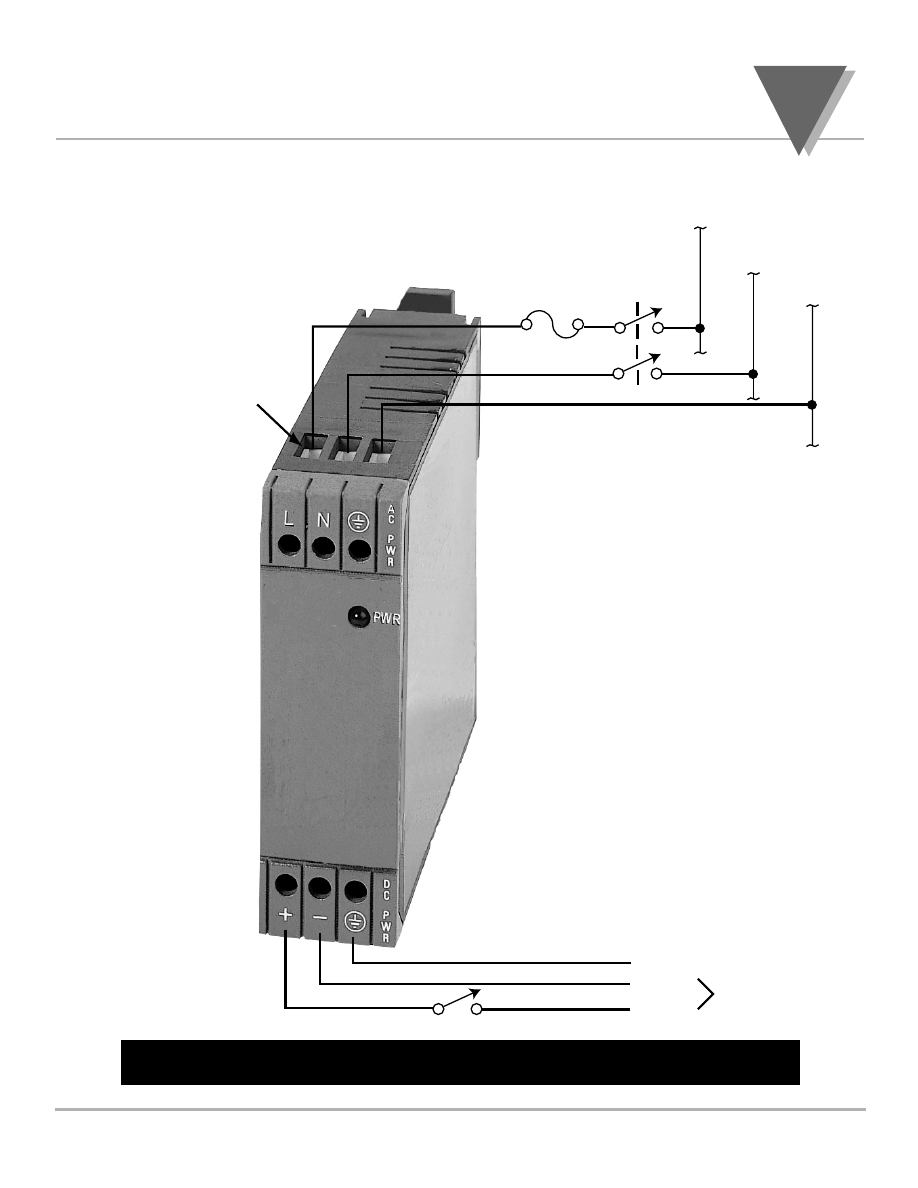

Figure 4.2Ñ Wiring for 115Vac - Single Phase
Input Power
* • USE A SWITCH TO APPLY
• +24V POWER TO THE LOAD,
• IF THE CAPACITANCE OF
• THE LOAD WILL DRAW MORE
• THAN 7 AMPS AT TURN ON.
USE AWG 12-26 WIRE
(for shielded wire
connections, if necessary)
Earth
FUSE
Line
Switch
N e u t r a l
Output Voltage
Switch *
Earth
Return
+24 V
To Signal
Conditioner
Modules
