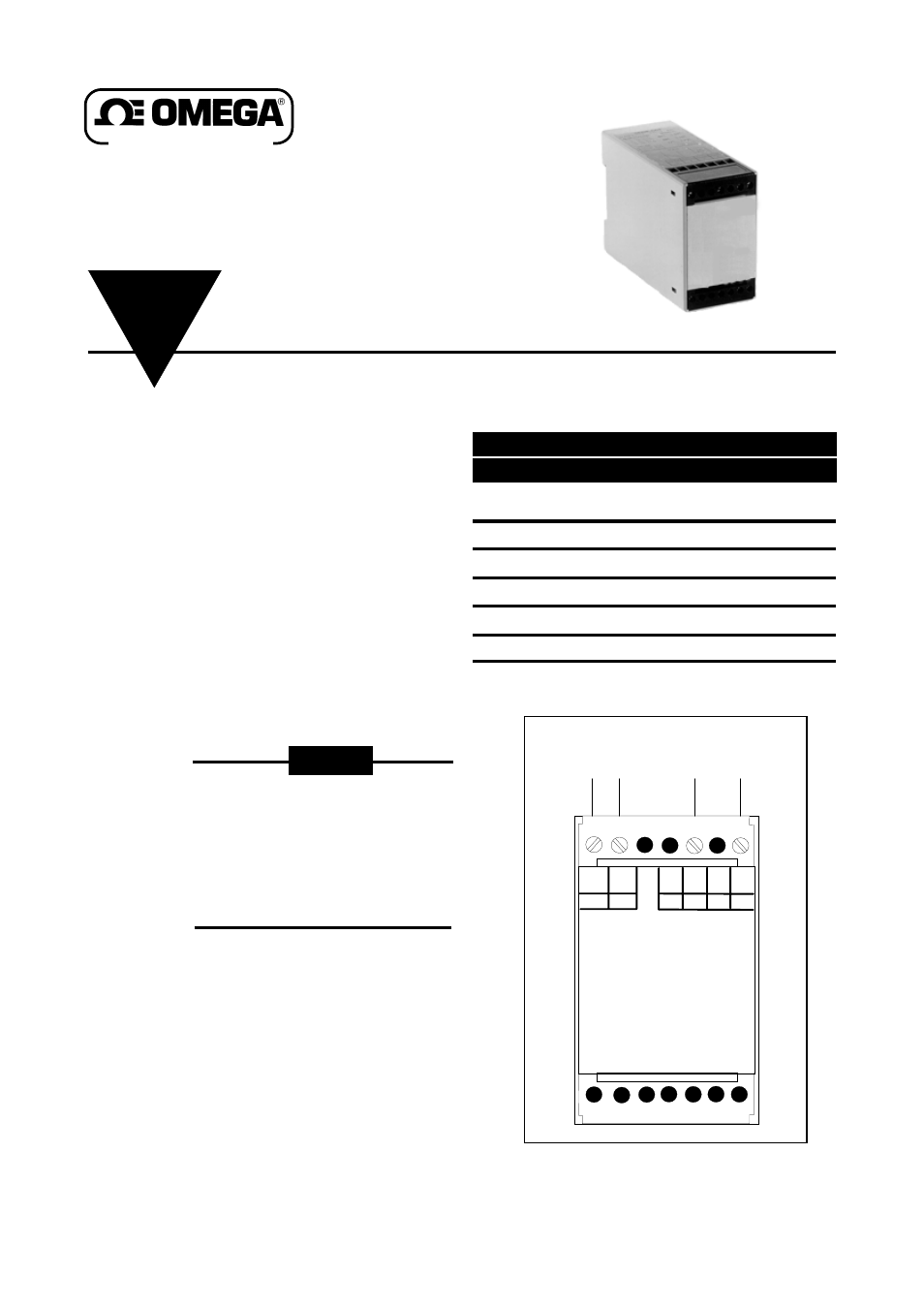

Figure 1. Connections Diagram
The FAR-2 Series power supply is for general
purposes, ideal for use with sensors, pressure
transducers, etc. This model does not
incorporate the excitation sense option. If you
want the sense option, order a FAR-1 power
supply.
Description
Remove the Packing List and verify that you
have received all equipment, including the
following (quantities in parentheses):
FAR-2 Series Power Supply (1)
Instruction Sheet (1)
If you have any questions about the
shipment, please call the OMEGA Customer
Service Department.
When you receive the shipment, inspect the
container and equipment for signs of
damage. Note any evidence of rough
handling in transit. Immediately report any
damage to the shipping agent.
The carrier will not honor damage
claims unlees all shipping material
is saved for inspection. After
examining and removing
contents, save packing material
and carton in the event
reshipment is necessary.
Unpacking Instructions
A n O M E G A Tech n olo gies C o m p an y
FAR-2 Series
Power Supply
POWER SUPPLY
FUENTE ALIMENTACION
OUTPUT / SALIDA
3 4 5 6
~ ~
1 2
AC
VOLTAGE
+ +
_ _
SENSE OUT SENSE OUT
POWER SUPPLY OUTPUT
- +
Table 1. Available Models
Part Number Voltage (V) Max. Current (mA)
FAR-2-5 5 225
FAR-2-9 9 225
FAR-2-12 12 200
FAR-2-15 15 100
FAR-2-18 18 100
FAR-2-24 24 150
Wiring
NOTE
