AMPLIFICATION
• THX Ultra2 Certified 7 channel amplifier
• 7 x 200 Watts/Channel at 6
Ω
• 7 x 150 Watts/Channel at 8
Ω
• WRAT — Wide Range Amplifier Technology (5 Hz – 100 kHz)
• Linear Optimum Gain Volume Circuitry
PROCESSING
• THX Surround EX 7.1 Processing
• Dolby Digital EX and Pro Logic IIx
• DTS and DTS-ES, DTS Neo:6, DTS 96/24
• Dolby Headphone and Dolby Virtual Speaker
• Dual 32-Bit DSP chips for main and Zone 2
• Non-scaling configuration
• Wolfson 192 kHz/24-bit D/A converters for all channels
• 39 Exclusive DSP soundfields with Direct/Pure bypass modes
• VLSC — Vector Linear Shaping Circuitry
• A-Form listening mode memory and IntelliVolume input level calibration system
VIDEO
• Conversion of composite and s-video to component and HDMI with time-base correction**
• New 5-line digital comb filter for composite to s-video conversion
• 50 MHz bandwidth, professional grade component video switching (4 in, 2 out)
• 7 Composite / S-Video inputs and 4 outputs
CONNECTIONS
• High Definition Multimedia Interface (2 in, 1 out)**
• 2 i.Link inputs for all audio formats**
• Ethernet for Net-Tune streaming audio**
• Three zone multi-room capability (Main, Zone 2 and Zone 3)
• Independent IR inputs for all 3 zones w/12VDC for IR receivers
• Bi-directional RS-232 port
• Five assignable 12VDC trigger outputs
• Programmable speaker A/B for all 7.1 channels
• Bridging capable for FL/FR using SBL/SBR
• 13 Digital inputs (7 optical, 6 coaxial, 12 assignable)
• 4 Assignable digital outputs (2 optical, 2 coaxial)
• Two sets of color-coded 7.1 multi-channel inputs, or one multi-channel input
and one AES/EBU input**
• 7.1 Channel color-coded pre-outputs
• Hardware & software upgradable for future additions
MISCELLANEOUS
• Direct access tuning via IR & RS-232
• Variable subwoofer crossover (40 - 150 Hz, 10 Hz steps)
• PC set-up application available via Ethernet and RS-232
*Base model configuration
**Reflects optional cards
D
T
R
-10.5
18 Park Way, Upper Saddle River, NJ 07458 • Telephone: 201.818.9200 • Fax: 201.785.2650 • www.intergrahometheater.com
AMPLIFIER
Continuous average power output (FTC)
All channels:
150 W per channel min. RMS at 8 ohms,
2 channels driven from 20 Hz to 20
kHz with no more than 0.08% total
harmonic distortion.
200 W min. RMS at 6 ohms, 2 channels
driven from 1 kHz with no more
than 0.08% total harmonic distortion.
Dynamic power output (stereo):
2 x 340 W at 3 ohms
2 x 260 W at 4 ohms
2 x 175 W at 8 ohms
Frequency response:
5 Hz to 100 kHz: +1/–3 dB
Signal-to-noise ratio:
110 dB (IHF A, 0.5 V input)
Total harmonic distortion:
0.08% at rated power
IM distortion:
0.08% at rated power
Damping factor:
60 at 8 ohms
Muting:
Set by user
INPUT SENSITIVITY AND IMPEDANCE
Line (CD, Tape, etc.):
200 mV, 50 k ohms
Multi-Channel inputs (Front L/C/R, Surround L/R,
Surround Back L/R)**:
200 mV, 50 k ohms
(Subwoofer)**:
36 mV, 50 k ohms
OUTPUT LEVEL AND IMPEDANCE
Rec out (Tape, Video 1, 2):
200 mV, 470 ohms
Pre out:
1 V, 470 ohms
Zone 2/3 line output:
100 mV, 470 ohms
TONE CONTROL
Bass:
±12 dB at 50 Hz
Mid range:
±12 dB at 1,000 Hz
Treble:
±12 dB at 20,000 Hz
FM
Tuning range:
87.5–108.0 MHz (100-kHz steps)
Usable sensitivity, stereo:
17.2 dBf, 2.0 µV (75 ohms IHF)
AM
Tuning range:
530–1,710 kHz (10-kHz steps)
Usable sensitivity:
30 µV
PHONO
Input sensitivity:
2.5 mV, 50 k ohms
Overload:
70 mV RMS at 1 kHz, 0.5% THD
RIAA Deviation:
20 Hz to 20 kHz: ±0.8 dB
Signal-to-noise ratio:
80 dB (IHF A, 0.5 V input)
GENERAL
Power supply:
AC 120 V, 60 Hz
Power consumption:
13.0 A*
Dimensions (W x H x D):
17-1/8" x 8-11/16" x 18-15/16"
435 x 175 x 429 mm
Weight:
70.8 lbs. (32.1 kg)*
FEATURES
SPECIFICATIONS

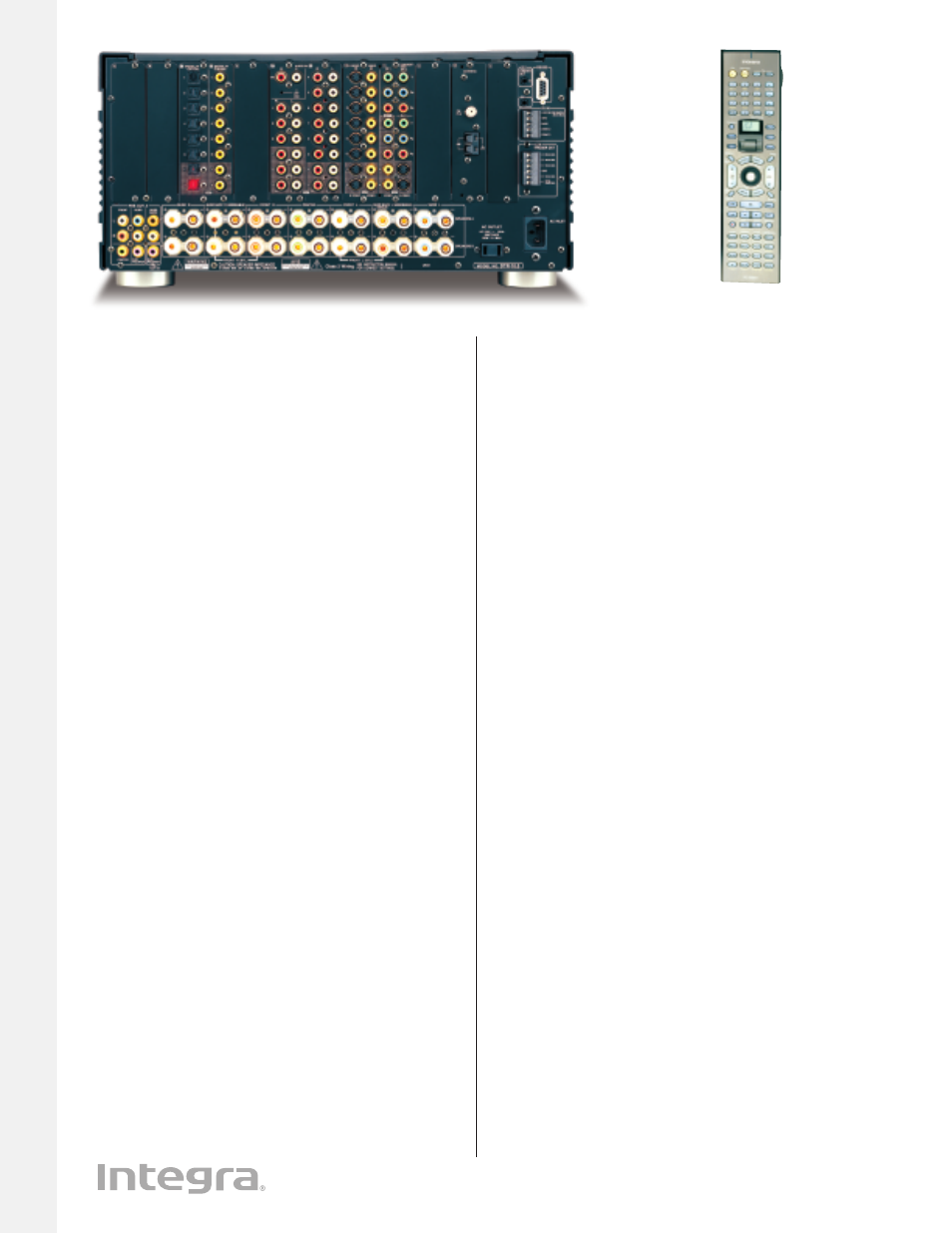

DTR-10.5
(base model shown)
