Stereo system

COAXIAL

AUDIO OUT

COAXIAL

R

L

DIGITAL AUDIO OUT

AUDIO

This unit

Method 1

Analog audio
input jacks

Digital audio
input jack

(Analog)
AUDIO OUT

DIGITAL
AUDIO OUT

Method 2

Audio cable

(supplied)

Audio Coaxial

Digital cable

(commercially

available)

Dolby Digital decoder,

MD deck or DAT deck

PCM

SETUP > AUDIO menu >

DOLBY DIGITAL

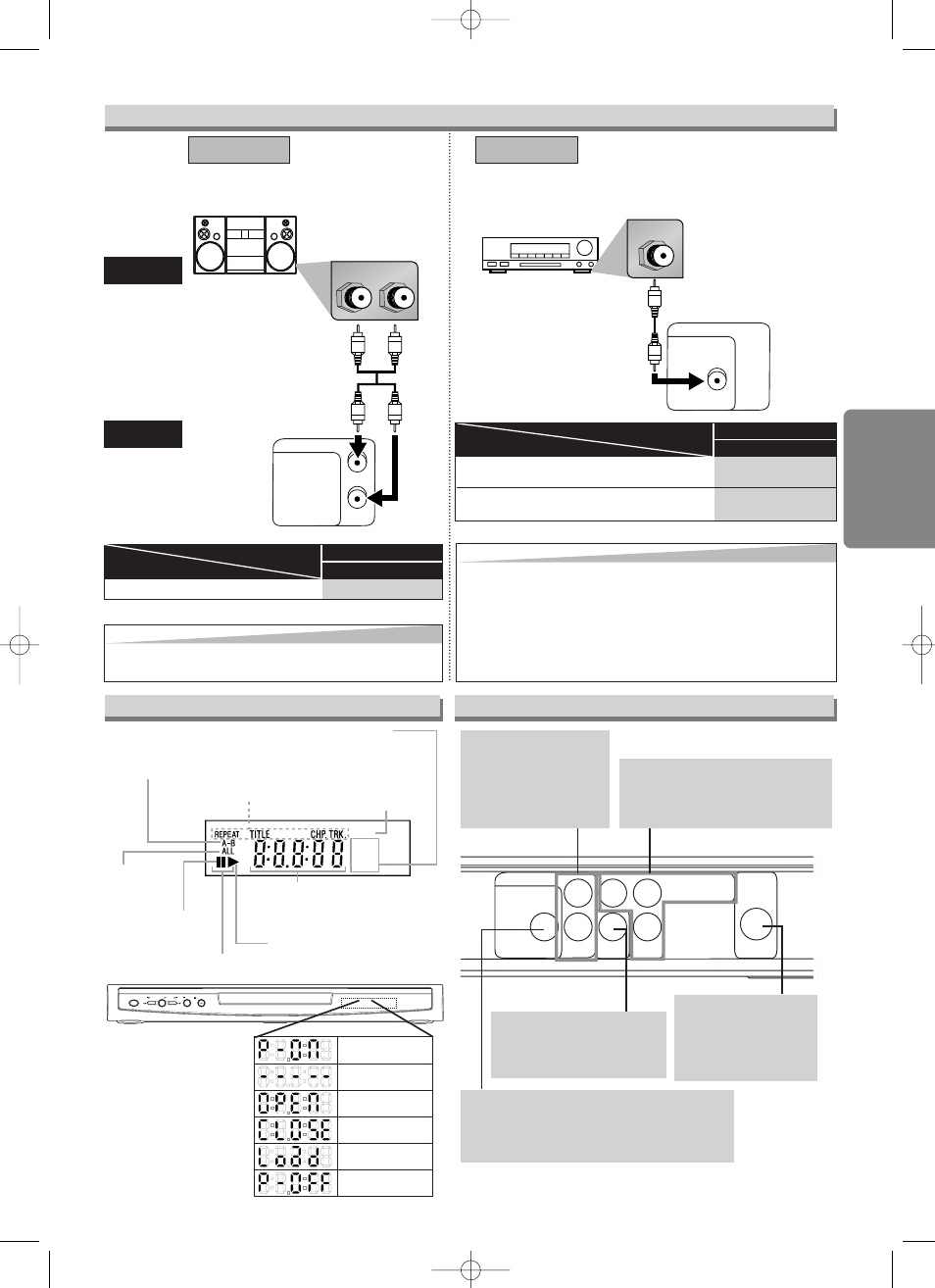

Connecting to Stereo System.

Setting

Connection

* To complete these settings, refer to pages 14-15.

Hint

Hint

• Playing a DVD using incorrect settings may generate noise

distortion and may also damage the speakers.

– 7 –

EN

Setup

Rear Terminals

Connection to an Audio System

BITSTREAM

PCM

SETUP > AUDIO menu >

Setting

Connection

DOLBY DIGITAL

Connecting to a Dolby Digital decoder for
Dolby Digital audio output.
Connecting to the other equipment (an MD deck
or DAT deck etc.) without Dolby Digital decoder.

* To complete these settings, refer to pages 14-15.

Hint

Hint

• The audio source on a disc in a Dolby Digital 5.1 channel surround

format cannot be recorded as digital sound by an MD or DAT deck.

• By hooking this unit up to a Multi-channel Dolby Digital decoder, you

can enjoy high-quality Dolby Digital 5.1 channel surround sound as
heard in the movie theaters.

• Playing a DVD using incorrect settings may generate noise distortion

and may also damage the speakers.

Power on

No disc inserted or
playing DVD Menu

Tray open

Tray closed

Loading the Disc

Power off

Lights up when the inserted
disc is being played back.

Displays a type of the disc
which is inserted on the tray.
• DVD: DVD disc
• CD: Audio CD, MP3

Lights up when the
inserted disc comes
to a pause.

Lights up when the
A-B repeat function
is on.

Lights up when the
repeat function is on.

Lights up when playing back
in slow mode. (DVD)

Displays how long the current title
or track has been played back.
When a chapter or track is
switched, the number of a new title,
chapter or track is displayed.

Lights up when
the ALL repeat
function is on.

GROUP

P.SCAN

DVD

CD

Lights up when the
progressive scan
system is activated.

Front Panel Display

AUDIO OUT

COAXIAL

R

L

Y

S-VIDEO

OUT

COMPONENT

VIDEO OUT

C

R

/P

R

DIGITAL AUDIO OUT

VIDEO

OUT

C

B

/P

B

AUDIO OUT jacks
Connect the supplied
audio cables here
through the audio in
jacks of a television or
other audio equipment.

S-VIDEO OUT jack
Connect an optional
S-Video cable here
through the S-video in
jack of a television.

COMPONENT VIDEO OUT jacks
Connect optional component video
cables here through the component
video in jacks of a television.

VIDEO OUT jack
Connect the supplied yellow
video cable here through
the TV’s video in jack.

COAXIAL jack
Connect an optional coaxial digital audio
cable here through the coaxial digital audio
in jack of a decoder or audio receiver.
