– 6 –

EN

Setup

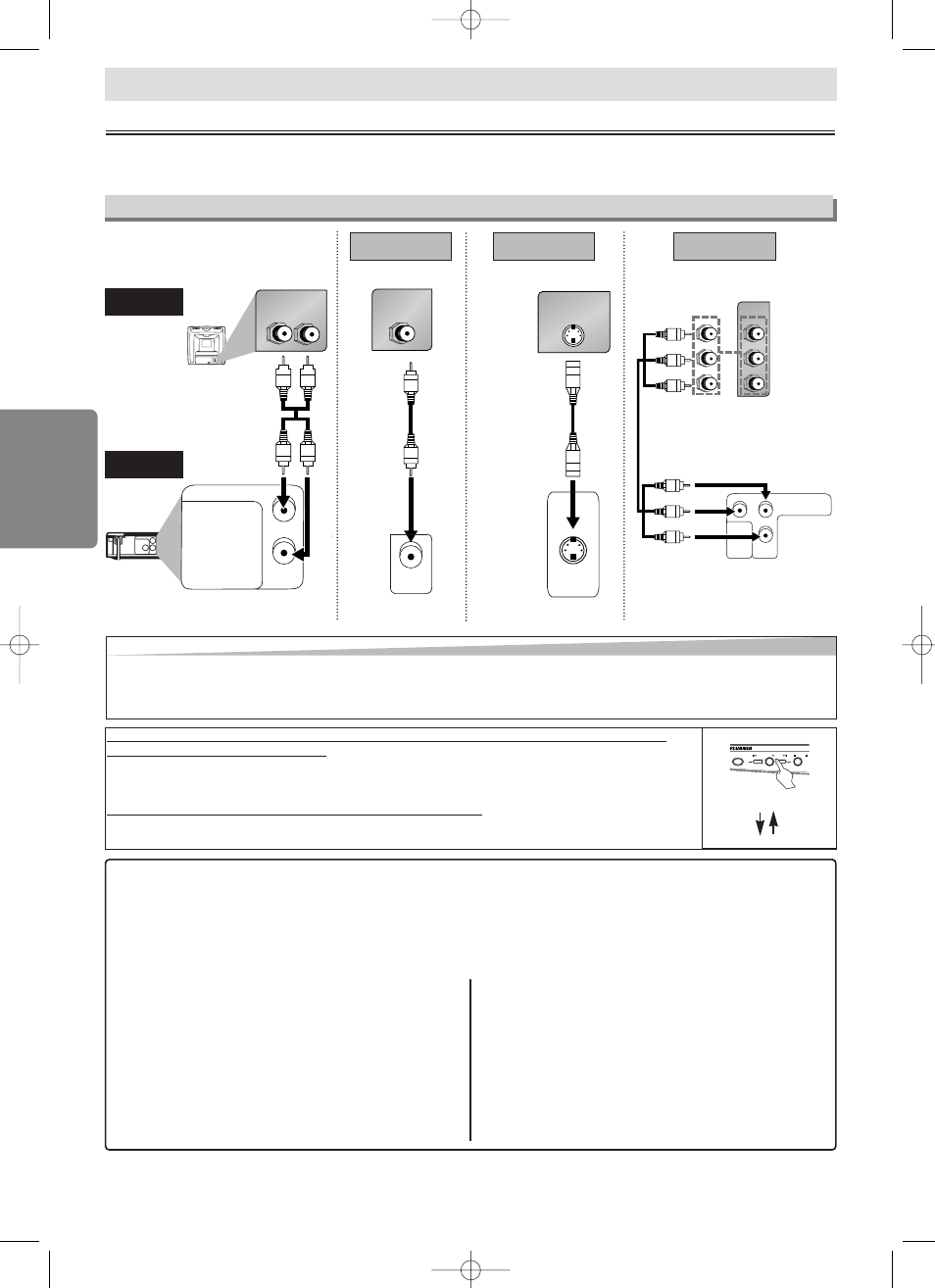

Connection to a TV

Connections

If your TV has AUDIO/VIDEO input jacks, see the following instructions. If not, see the section “Before Using
Your Unit” on the front page.

Setup

AUDIO OUT

COAXIAL

R

L

Y

S-VIDEO

OUT

COMPONENT

VIDEO OUT

CR/PR

DIGITAL AUDIO OUT

VIDEO

OUT

CB/PB

AUDIO OUT

COAXIAL

R

L

DIGITAL AUDIO OUT

L

R

AUDIO IN

VIDEO IN

VIDEO

OUT

S-VIDEO IN

S-VIDEO

OUT

(Analog) AUDIO OUT

VIDEO OUT

TV

Method 1

Good picture

Basic Audio

Method 2

Better picture

S-VIDEO OUT

Video

cable

(supplied)

Audio cable

(supplied)

S-Video

cable

(commercially

available)

This unit

Hint

Hint

• Connect this unit directly to the TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the

copy protection system.

• When progressive scanning mode is selected, no video signal will be output from the VIDEO OUT or S-VIDEO OUT jack.

After you have completed connections

• Hit the input selector button (usually TV/VIDEO, INPUT or AUX) on your TV to switch an appropriate external input chan-

nel (usually near channel 0) for viewing the picture from this unit. If the picture does not appear, also refer to the manual
accompanying your TV.

INPUT MODES FOR COMMON TV BRANDS

• Listed below are inputs for common brand name TV’s.

Admiral:

AUX

Curtis Mathis:

LINE1, LINE2, 00, 90, 91, 92, 93

GE:

INPUT, TV/VCR, 00, 90, 91, 92, 93

Hitachi:

INPUT, AUX

JVC:

A/V CHANNEL, INPUT1, SVIDEO,
INPUT2

Kenwood:

AUX

LXI-Series:

00

Magnavox:

AUX CHANNEL

Panasonic:

TV/VIDEO

RCA:

INPUT, TV/VCR, 00, 90, 91, 92, 93

Samsung:

TV/VIDEO

Sanyo:

VIDEO, IN MENU

Sharp:

00

Sony:

VIDEO1, VIDEO2, VIDEO3

Toshiba:

TV/GAME

Zenith:

00

C

B

Y

C

R

COMPONENT

VIDEO IN

or

P

B

Y

P

R

Y

COMPONENT

VIDEO OUT

C

R

/P

R

VIDEO

OUT

C

B

/P

B

Method 3

Best picture

COMPONENT VIDEO OUT

Component Video cables
(commercially available)

If your TV is compatible with 525p (480p) progressive scanning and you want to
enjoy that high quality picture;

You must select the connection Method 3 above and progressive scanning mode. To set the mode,
press and hold [PLAY B

B

] on the front panel for more than 5 seconds, so that “P.SCAN” will appear on

the display of this unit.

If your TV is not compatible with progressive scanning;

Use this unit in interlace mode. Make sure that no “P.SCAN” is on the display of this unit. If not, press and hold
[PLAY B

B

] on this unit for more than 5 seconds, so that “P.SCAN” on the display of this unit will disappear.

POWER

SKIP

SKIP

PLAY

STOP

O

more than 5 seconds

[Interlace mode]

[Progressive scanning mode]

[DVD]
