Connecting the AV Receiver —Continued
■ Using a Multichannel Connection
If your DVD player supports multichannel audio formats
such as DVD-Audio, and it has a 5.1-channel analog
audio output, you can enjoy DVD-Audio playback.

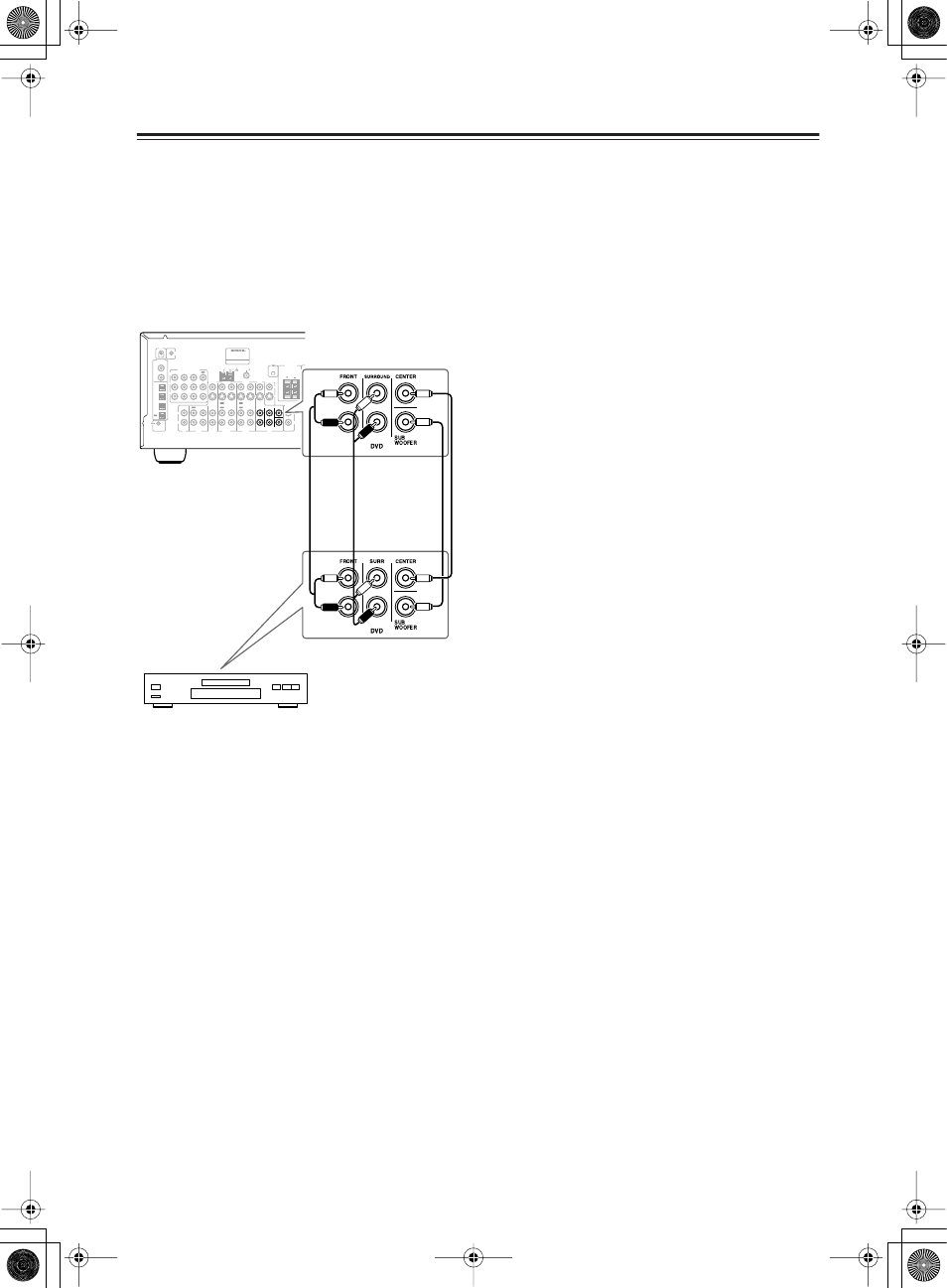

Use a multichannel analog audio cable to connect the AV
receiver’s DVD IN FRONT L/R, CENTER, SUR-
ROUND L/R, and SUBWOOFER jacks to the 5.1-
channel analog audio output on your DVD player, as
shown. Alternatively, use several analog audio cables.
