E n
L
R
SURROUND
SPEAKERS
FRONT
SPEAKERS A
CENTER
SPEAKER
SURROUND BACK
SPEAKER
+ –
+ –
+ –
+ – + –
15 mm
Thank you for your purchase of the Onkyo speaker system.
Please read this manual thoroughly before using it.
Following the instructions in this manual will enable you to
obtain optimum performance and listening enjoyment from
your new speaker system.
Please retain this manual for future reference.
Before using this unit
● The speaker cabinet is made of wood and is therefore sensitive
to extreme temperatures and humidity. Avoid placing the speaker
systems in locations subjected to direct sunlight, or in smoky
or in humid places, such as near an air conditioner, humidifi er,
bathroom, or kitchen. Doing so may result in damage to the
speaker.
● Place the unit on a rigid, level surface. Placing it on a slanted
surface or weak base not only may cause the unit to fall, but
also results in decreased sound quality.
● Be sure to turn off your amplifi er before connecting the speaker
system. Connecting them with the amplifi er's power on may result
in damage to the amplifi er or the speaker system.
● Keep water or other liquids away from the unit. If water is spilled
into the unit, not only the unit but also the speakers themselves
may be damaged.
Precaution on use
● This speaker system can handle the specifi ed input power
when it is used for ordinary music reproduction. If the following
abnormal signals are fed to the speaker, however, an overcurrent
may fl ow in the internal circuits, causing burning or breakage
of the wires even if the input power is below the specifi ed
rating.
1. Noise produced when FM station is not tuned in
2. Sound produced when fast-forwarding cassette tape deck
3. High-frequency sound generated by an oscillator, an
electronic musical instrument, etc.
4. Oscillating amplifi er signals
5. Special test signals produced by audio checking CD, etc.
6. Sound produced when connecting or disconnecting audio
connection cables (Always turn off the amplifi er’s power
before connecting or disconnecting cables.)
7. Howling when a microphone is used
● Do not place magnetic objects such as screwdrivers and iron
parts near the tweeter since they use speakers with strong
magnets. Otherwise, the objects may be attracted, causing
injury or damaging the diaphragm.
Instruction Manual
SKF-4700
SPEAKER SYSTEM
Connections
● Turn the sound volume to the minimum and disconnect the power
cord from the amplifi er before connecting the speaker cables.
● The nominal impedance of this speaker system is 8 Ω. Use
only amplifi ers capable of handling this impedance.
● Use the supplied speaker cables to connect
between speaker’s input terminals and the
amplifi er’s speaker terminals as illustrated
below.
● Connect the speaker cables securely to the
terminals, with the core wires twisted
properly. In this case, make sure that the
core wires do not touch each other. Note
that a short circuit in core wires may result in damage to the
amplifi er.

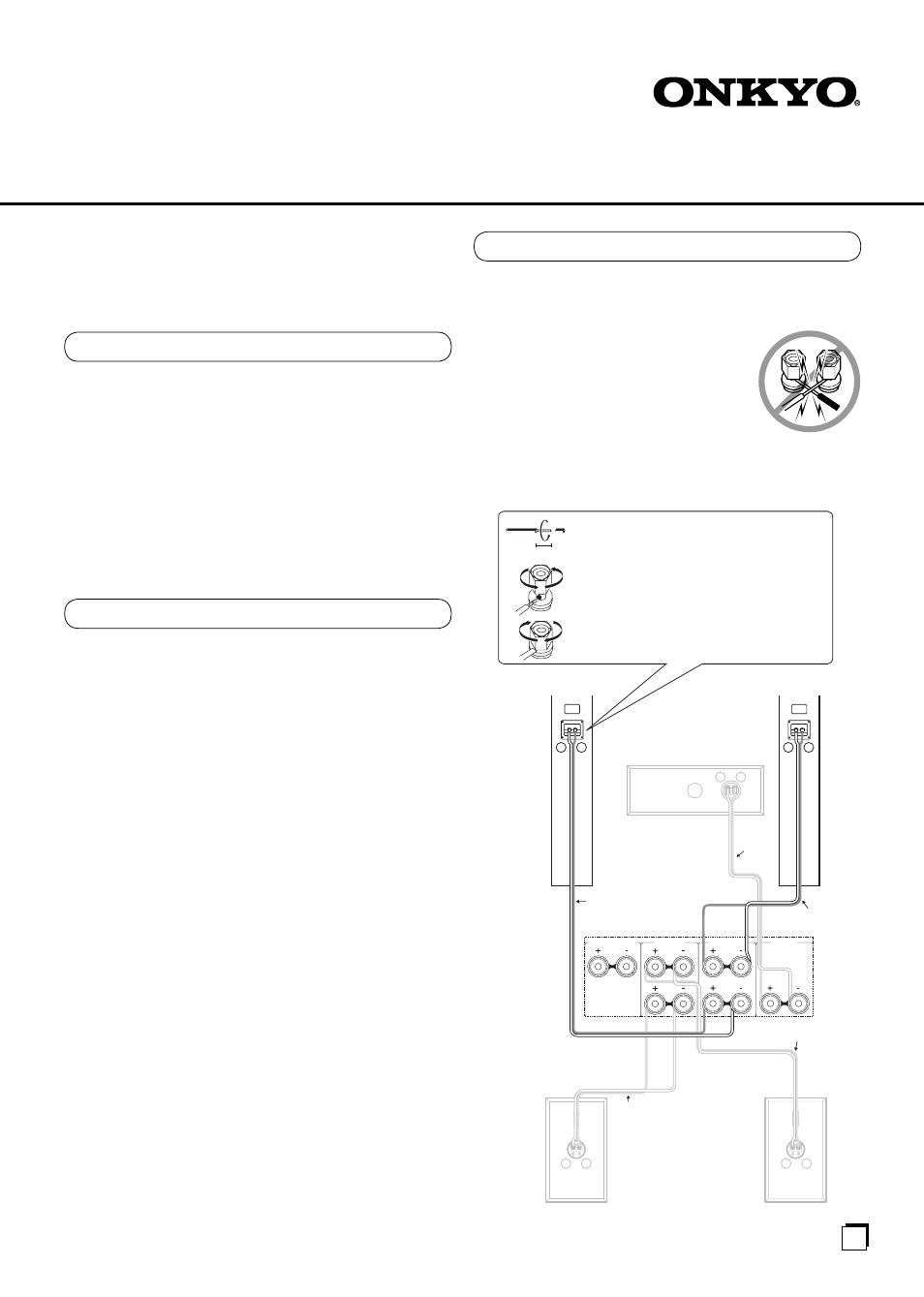

Connecting to AV amplifi er
SKF-4700
Front left speaker
SKC-4700
Center speaker
SKF-4700
Front right speaker
Green
1. Strip the insulation of speaker cables,
and twist the core wires tightly.
2. Loosen the terminal screw, and insert the
wire into the hole (until the core wires are
inserted fully).
3. Fasten the terminal screw.
Gray
Blue
White
Red
AV amplifi er
SKM-4700
Surround left speaker
SKM-4700
Surround right speaker
