Settings for an external source
Connect the external source properly to the unit by using input jacks either LINE 2 (Front) or LINE1 (Rear).
When you want to record to a tape, use either DVD/VCR VIDEO IN jack (Rear) or VIDEO input jack
(Front). S-VIDEO input is useful only in DVD mode.
Use S-Video or Video cable, and an Audio cable for this connection.
Connection to an external source
1. Press SETUP button to display SETUP/DISC
menu.
2. Select “SETUP” using { / B buttons , then
press ENTER button.
3. Select “Select Video” using K / L / { / B
buttons, then press ENTER button.
4. Select “L2 (Front)” using K / L buttons,
then press ENTER button.
5. Select the input jack type to connect using
K / L buttons, then press ENTER button.
If you want to use S-VIDEO IN, select “S-Video In”.*
If you want to use VIDEO IN (Composite), select
“Video In”.
Setup > Select Video
L1 (Rear)
L2 (Front) S-Video In
Video In
DVD
Setup > Select Video
L1 (Rear)
L2 (Front) Video In
Video In Video In
S-Video In
DVD
Setup > Select Video
L1 (Rear)
L2 (Front) Video In
Video In
DVD
1. Press SETUP button to display
SETUP/DISC menu.
2. Select “SETUP” using { / B buttons , then
press ENTER button.
3. Select “Select Video” using K / L / { / B
buttons, then press ENTER button.
4. Select “L1 (Rear)” using K / L buttons,
then press ENTER button.
5. Select the input jack type to connect using
K / L buttons, then press ENTER button.
If you want to use S-VIDEO IN, select “S-Video In”.*
If you want to use VIDEO IN (Composite), select
“Video In”.
Setup > Select Video
L1 (Rear)
L2 (Front) Video In
S-Video In
DVD
Setup > Select Video
L1 (Rear)
L2 (Front) Video In
Video In Video In
S-Video In
DVD
Setup > Select Video
L1 (Rear)
L2 (Front) Video In
Video In
DVD
Front of this unit Rear of this unit
DVD DVD/VCR
ANTENN IN AUDIO OUT AUDIO IN S-VIDEO AUDIO OUT DIGITAL AUDIO OUT
COAXIAL
COMPONENT
VIDEO OUT
VIDEO OUT VIDEO IN
L Y
IN
OUT
C B
C R
L
R L
R
R
OUT
ONE TOUCH DUBBING
CHANNEL VCR RECORD DVD RECORD
DVD -RW/-R
OPEN/CLOSE
PLAY REW POWER F.FWD STOP/EJECT
OUTPUT SELECT
VCR DVD
STOP PLAY
S-VIDEO VIDEO L - AUDIO - R
S-VIDEO VIDEO L - AUDIO - R
DVD
S-VIDEO
IN
DVD/VCR
AUDIO IN
VIDEO IN
L
R
To LINE 2 IN To LINE 1 IN

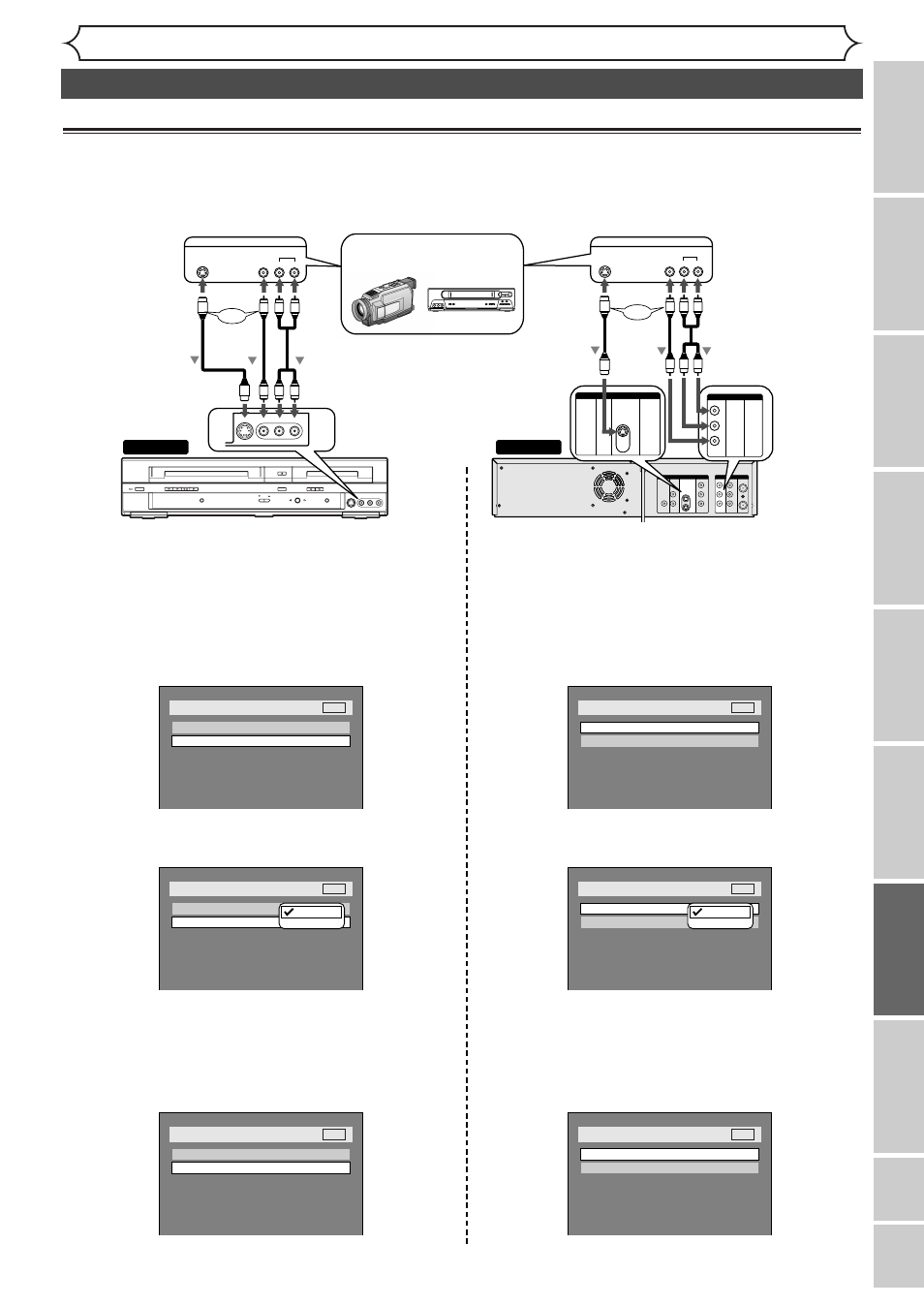

Another source
(VCR camcorder etc.)
S-Video
cable
VIDEO S- VIDEO AUDIO
R L
OUTPUT
VIDEO S -VIDEO AUDIO
L R
OUTPUT
Audio
cable
Video
cable
S-Video
cable
Audio
cable
Video
cable
or
or
