4 © 2008 directed electronics—all rights reserved
9. Lo-Pass Crossover Frequency Control - adjusts the frequency of the crossover.
10. Remote Bass Gain Jack - connects RGC-2 (remote bass control).
11. Status LED - Will indicate any fault condition in amplifier, also lights briefly during
muting phase of turn-on.

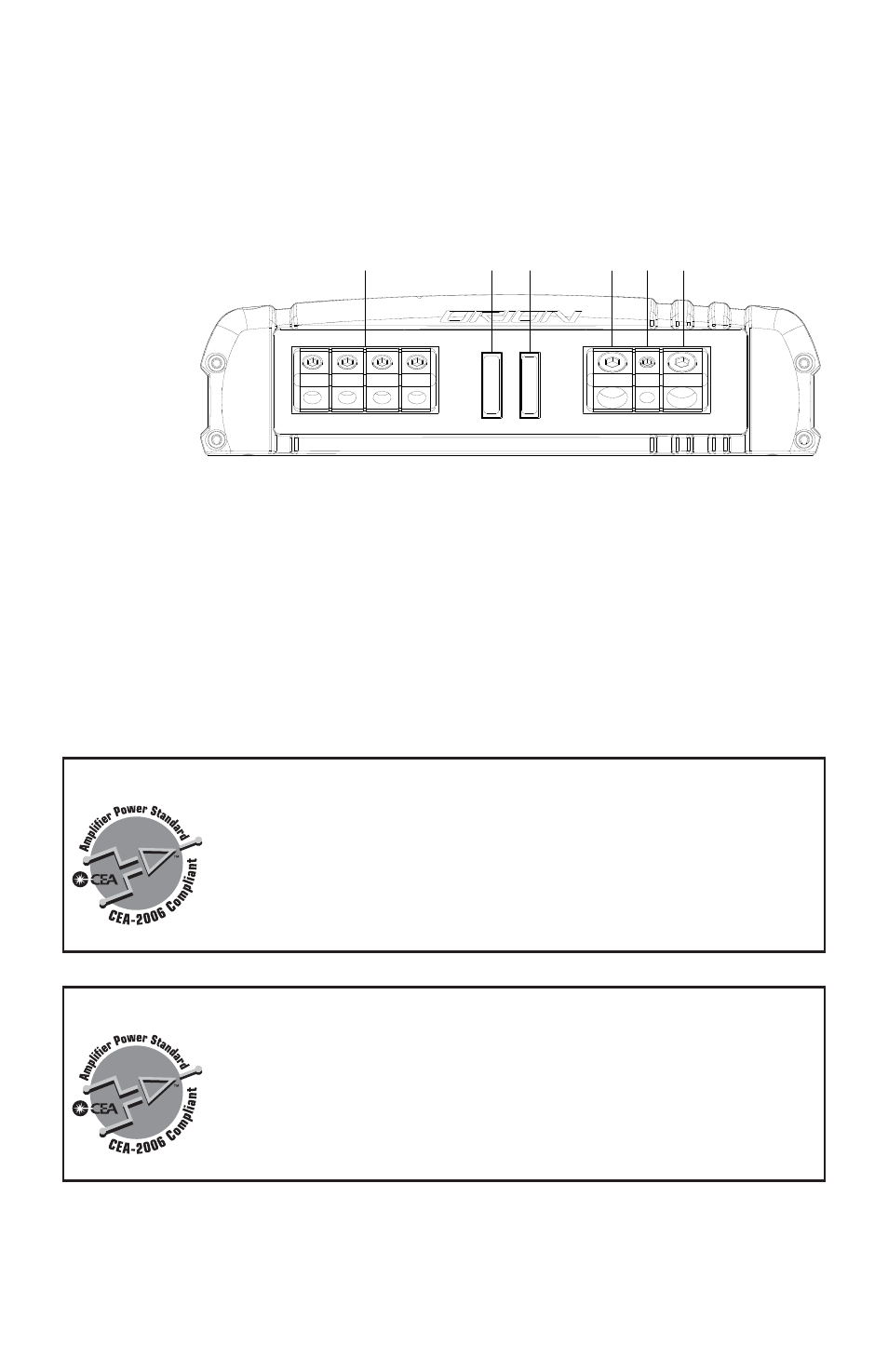

Output Plate
Figure 2
Figura 2
Abbildung 2
1 2 3 2 4 5
1. Speaker Connections - accepts up to 12 AWG speaker wire.
2. 2 ATC Fuses - protects the amplifier from over current situations.
3. Power Connections - accepts up to 4 AWG power cables.
4. REM Remote Turn-on Input - turns on/off the amplifier when fed Switched 9 - 15
V+.
5. Ground Connection - accepts up to 4 AWG ground cable.
CEA SPECIFICATIONS
CO5001
Power Output: 175 Watts RMS x 1 at 4 ohms and < 1% THD+N
Signal to Noise Ratio: -80 dBA (reference 1 Watt into 4 ohms)
Additional Power: 250 Watts RMS x 1 at 2 ohms and < 1% THD+N
CO8001
Power Output: 300 Watts RMS x 1 at 4 ohms and < 1% THD+N
Signal to Noise Ratio: -75 dBA (reference 1 Watt into 4 ohms)
Additional Power: 400 Watts RMS x 1 at 2 ohms and < 1% THD+N
