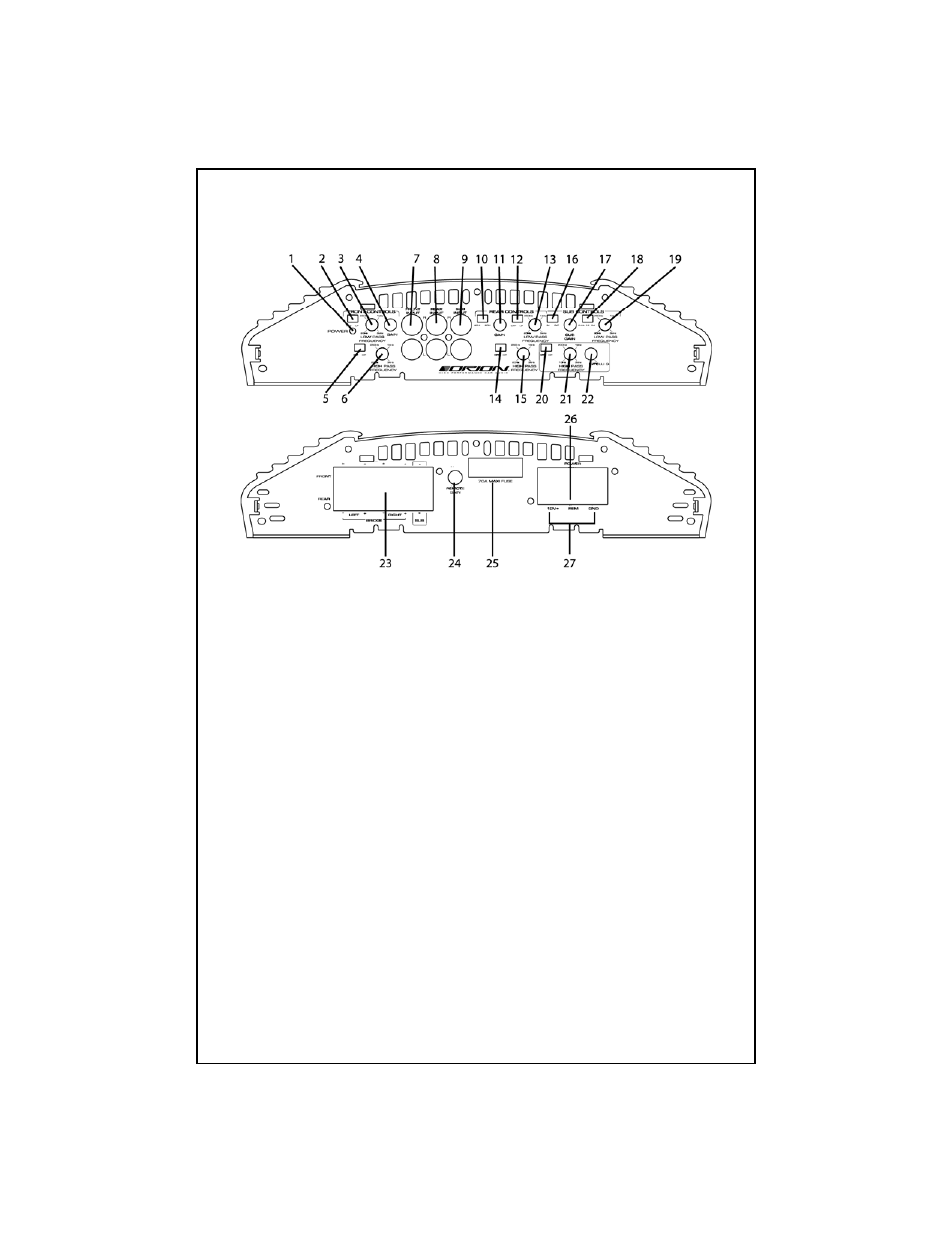

END PANEL LAYOUT
1.
Power LED - indicates that the amplifier is on.
2.
Front Low-Pass Crossover Switch - activates 2nd order low pass crossover.
3.
Front Low-Pass Frequency Control - adjusts the frequency of the low-pass
crossover.
4.
Front Gain Control - continuously adjusts from 200mV to 5V for full power output.
5.
Front High-Pass Crossover Switch - activates 2nd order high pass crossover.
6.
Front High-Pass Frequency Control - adjusts the frequency of the high-pass
crossover.
7.
Front RCA Inputs - accepts RCA input from a source unit, preamplifier, or equalizer.
8.
Rear RCA Inputs - accepts RCA input from a source unit, preamplifier, or equalizer.
9.
Subwoofer RCA inputs - accepts RCA input from a source unit, preamplifier, or
equalizer.
10. 4CH / 2 CH Switch - configures the amplifier for one or two sets of inputs.
11. Rear Gain Control - continuously adjusts from 200mV to 5V for full power output.
12. Copy/Master Switch - Determines the output of the RCA outputs.
13. Rear Low-Pass Crossover Switch - activates 2nd order low pass crossover.
14. Rear Low-Pass Frequency Control - adjusts the frequency of the low-pass
crossover.
15. Rear High-Pass Crossover Switch - activates 2nd order high pass crossover.
16. Rear High-Pass Frequency Control - adjusts the frequency of the high-pass
crossover
17. Subwoofer IN / EXT Switch - configures the subwoofer channel to use external
RCA's or an internal summed input.
5
