Front speaker
(left)
Center
speaker
Front speaker
(right)
Surround
speaker
(left)
Surround
speaker
(right)
Subwoofer
DIGITAL AUDIO OUT
COAXIAL
To COAXIAL DIGITAL
AUDIO INPUT jack
Amplifier/Receiver with
Dolby Digital decorder

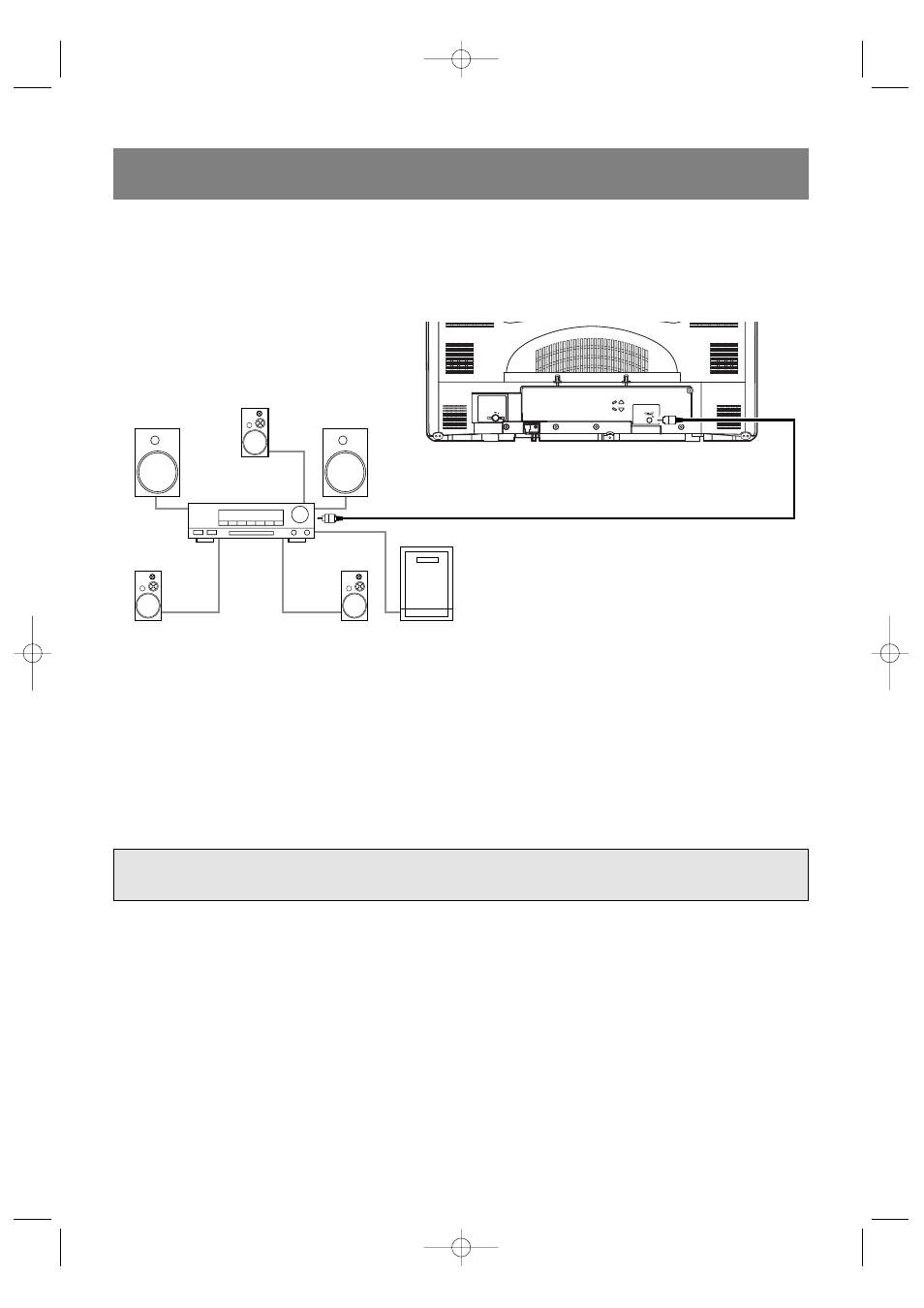

[Fig. 7]
CONNECTING TO AN AMPLIFIER/RECEIVER WITH A DOLBY
DIGITAL DECODER (for DVD)
To use this unit to play a DVD disc in a 5.1 channel Dolby Digital surround format, the unit can output a
DOLBY DIGITAL Data stream from its COAXIAL digital audio out jack. By hooking the unit up to a Dolby
Digital decoder, you can enjoy high-quality surround sound as enjoyed in movie theaters.
Use audio coaxial digital cables available at retail stores for the audio connection.
NOTES:
• Be sure to turn off the power to all components in the system before connecting them together.
• Refer to the Owner's Manuals for the components to be connected to the unit.
• If connected to receiver with a Dolby Digital decoder, set DOLBY DIGITAL to ON for audio output in the
setup mode. (See page 45 to set DOLBY DIGITAL to ON.)
• Unless connected to a receiver with a Dolby Digital decoder, set DOLBY DIGITAL to OFF for audio out-
put in the setup mode. Playing a DVD using incorrect settings may generate noise distortion and may also
damage the speakers.
• Only DVD, CD, MP3 sound is available using this jack.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
