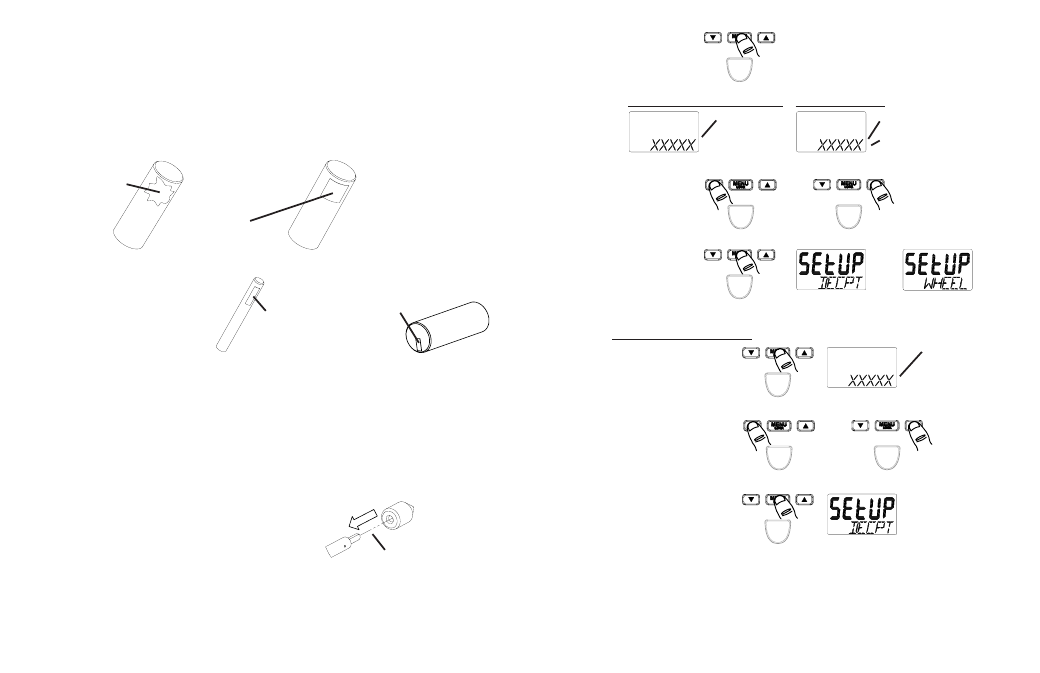

5.0 PREPARATION FOR MEASUREMENT

5.1 Non-Contact Preparation

For Internal operation (Red laser) or External operation
using optional Remote Optical Sensor (ROS-Red LED).

5.2 Direct Contact Preparation

For External operation ONLY using optional Remote
Contact Assembly (HHT13-RCA).

1. Clean
Shaft

As small as 1/8” wide
on side or radius edge

2. Apply 1/2”
square T-5
Reflective
tape

For Small Shafts:

Select and install contact option:

1. Contact Tip (Convex tip shown.
Use Concave tip for small shafts.)

Align flats

Enter
selection of
Units

Select Units

Save and
advance

Rotational: REV

Linear: INCH, FEET,
YARDS, CM, METER

Different options displayed for
Internal or External operation.

Internal or External ROS: External RCA:

COUNT

Only

Repeat until
desired Units
displayed

COUNT or REV

Linear Units

8a. Enter selection

of Wheel

8b. Select Wheel

8c. Save and

Advance

Only for Linear Units:

Toggles
between
10CM and
1 2 I N

Last Wheel
selected is
displayed
