– 6 –
80Hz 500µF
100Hz 400µF
130Hz 300µF
200Hz 200µF
260Hz 150µF
400Hz 100µF

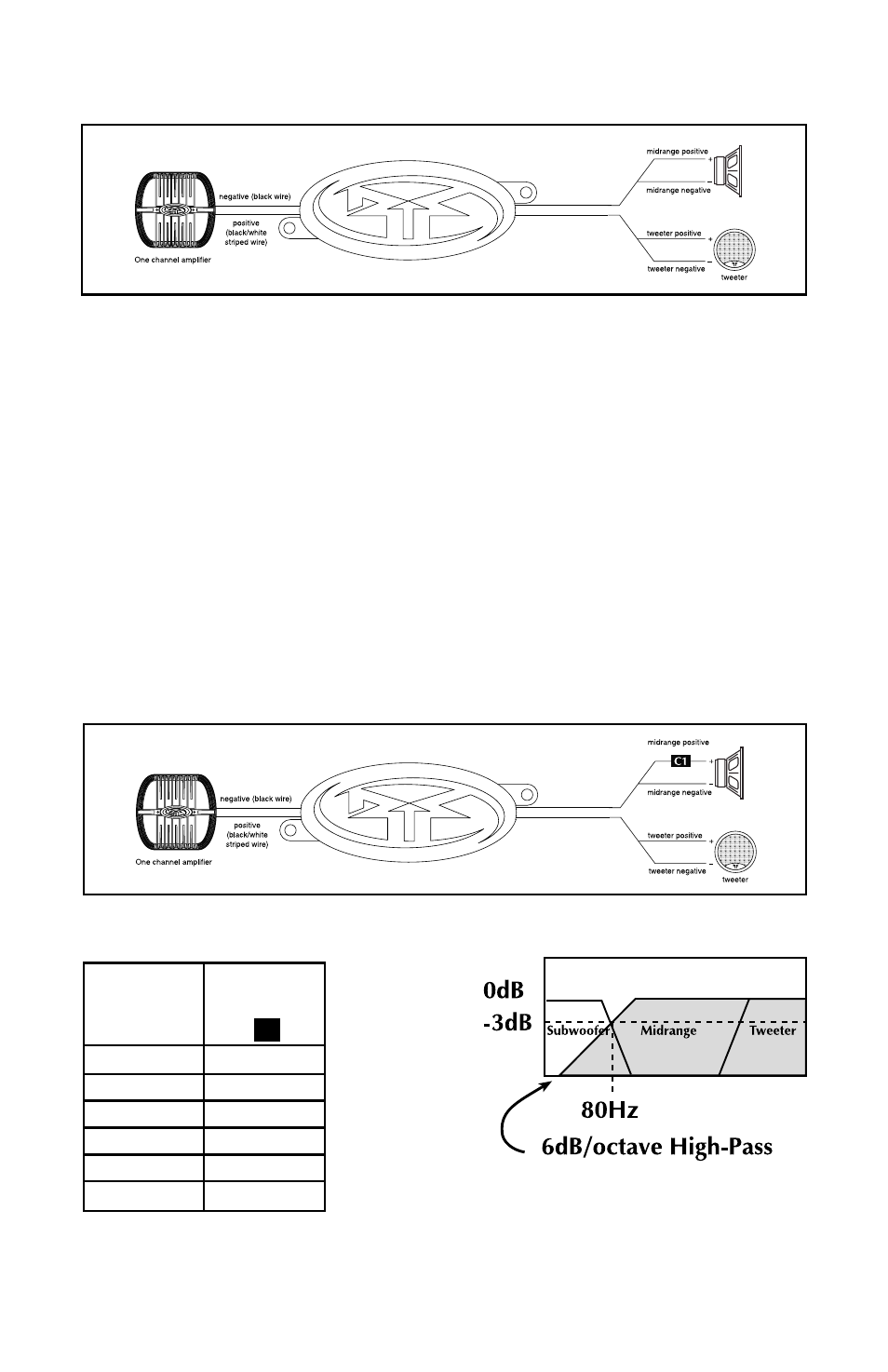

Crossover Connections
High-Passing the Midrange
The fanaticP Component Systems are optimized for full range music repro-
duction. In cases where a subwoofer is used, the midrange can be high-
passed in order to prevent overlapping frequncies from the midrange into
the subwoofer.
1. Determine the frequency range that the subwoofer will play (i.e.: 20Hz-
80Hz).
2. Use the low-pass crossover frequency of the subwoofer system (i.e.:
80Hz) as the high-pass crossover frequency for the midrange.
3. Select the appropriate capacitor value (i.e.: 500µF) to properly high-pass
the midrange.
4. Place the capacitor in series with the "+" terminal of the speaker.
Frequency
(Hertz)
Speaker
(4 ohms)
C1
