9 Installation
CONNECTING THE TAD
Follow these steps to connect your TAD to the telephone line
and phone.
1. Unplug the telephone’s modular cord from its line jack and
plug it into the TO LINE jack on the bottom of the TAD.
2. Plug one end of the supplied modular cord into the TO
PHONE jack on the bottom of the TAD.
3. Plug the cord’s other end into the phone’s modular line
jack.
4. Insert the supplied AC adapter’s barrel plug into the AC 9V
440 mA jack on the bottom of the TAD.

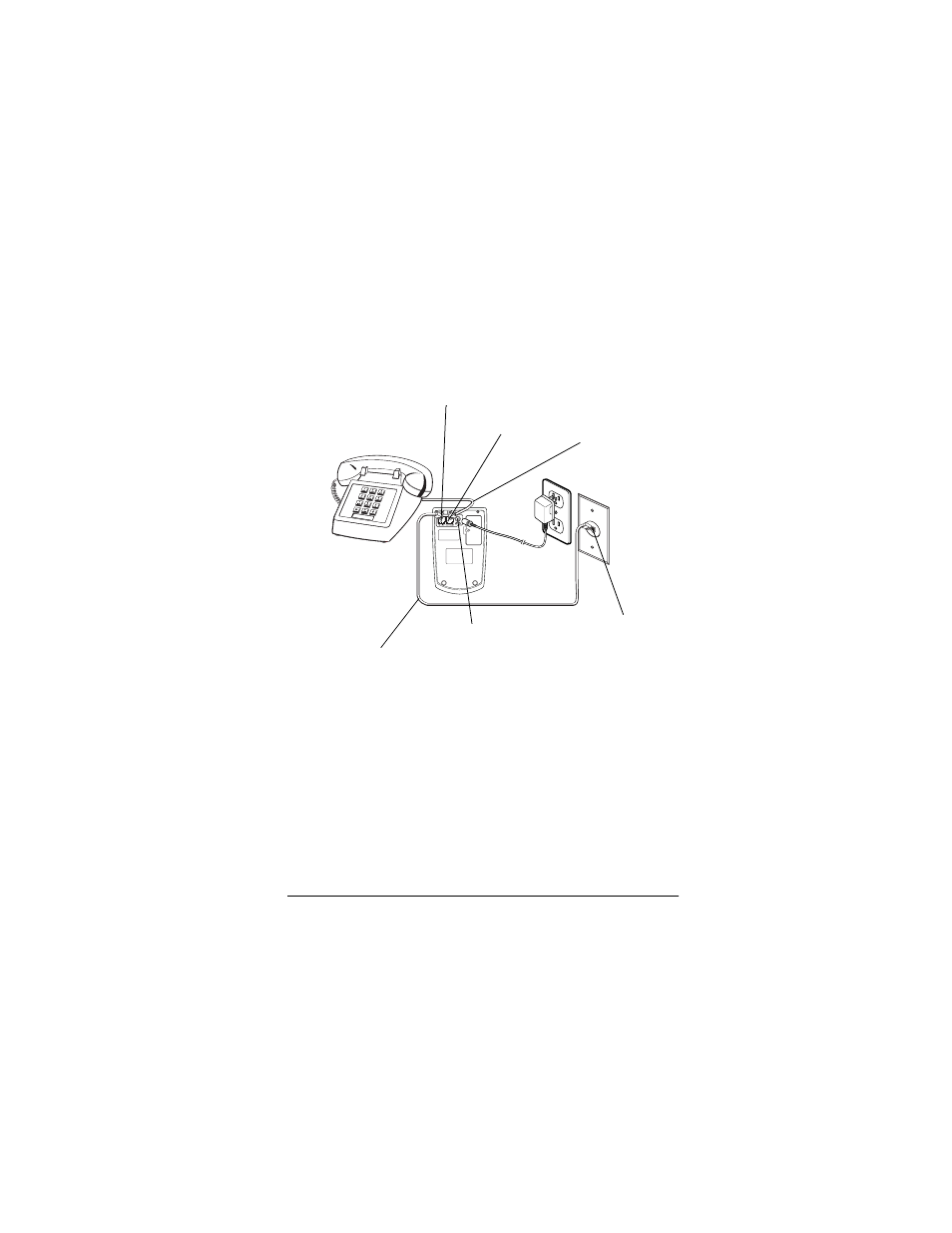

Telephone’s Modular Cord
TO LINE Jack
TO PHONE Jack
Supplied
Modular
Cord
AC 9V 440 mA Jack
Telephone Wall Jack
