Connecting Your Amplifier
2. Connect the other end of the speaker’s positive (+) and negative (–) wires to
the amplifier’s red SPEAKER LEFT and SPEAKER RIGHT terminals.
Note: SPEAKER RIGHT (+) on the amplifier is used as a negative (–)
terminal for a bridged connection.
3. Make sure STEREO/MONO is set to MONO.
Note: In the bridged mono mode, only the LEFT volume control adjusts
the output level.
Connecting Power
To power the amplifier, plug the attached power cord into a standard AC
outlet. Your amplifier’s fuse protects it from voltage surges. If the amplifier
does not turn on when you press POWER, check the fuse. If it is blown, see
“Replacing the Fuse.”

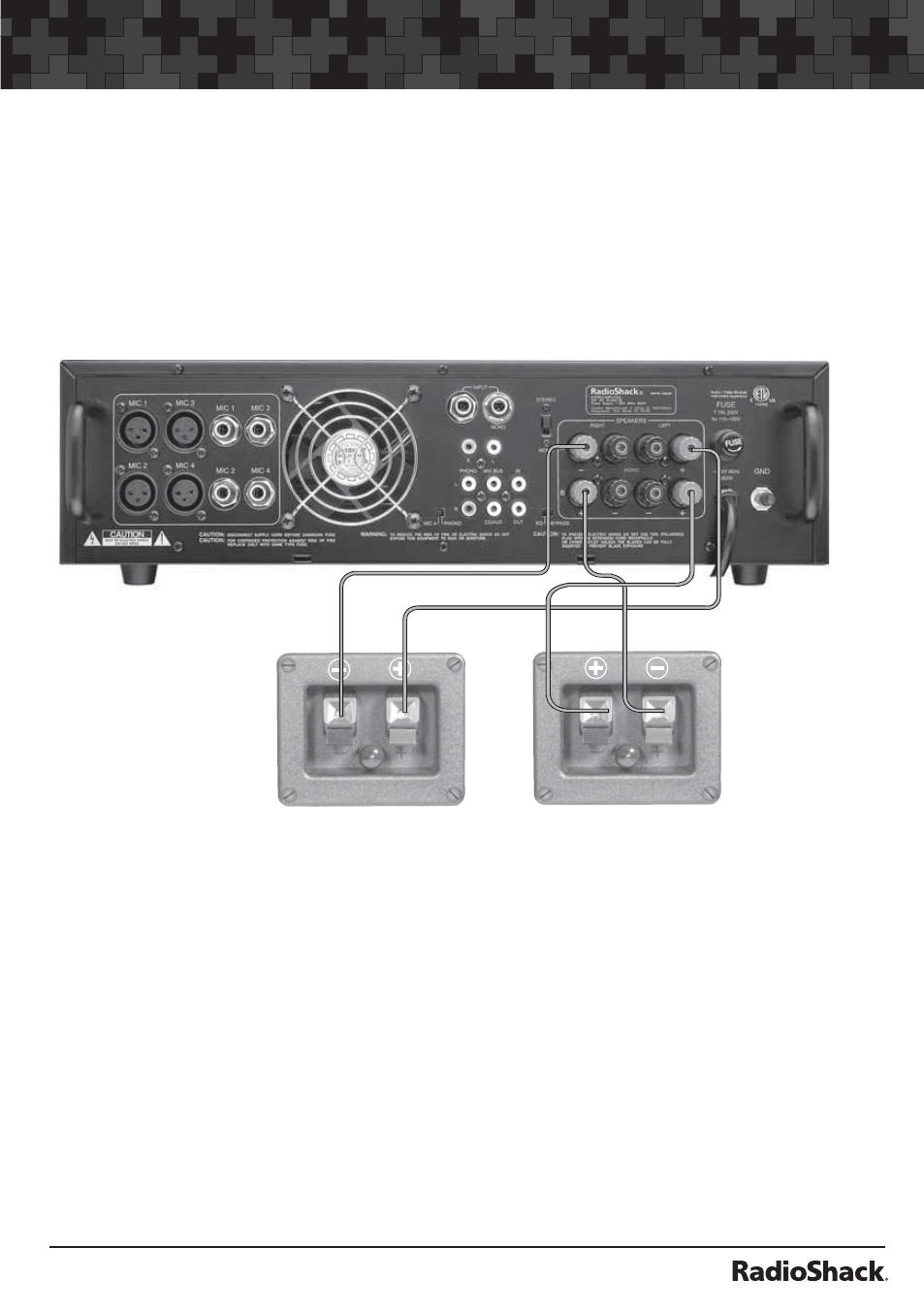

LEFT Speaker RIGHT Speaker
