UM10032
ISP1362 OTG add-on eval kit with Intel PXA250/255 IDP rev. 4

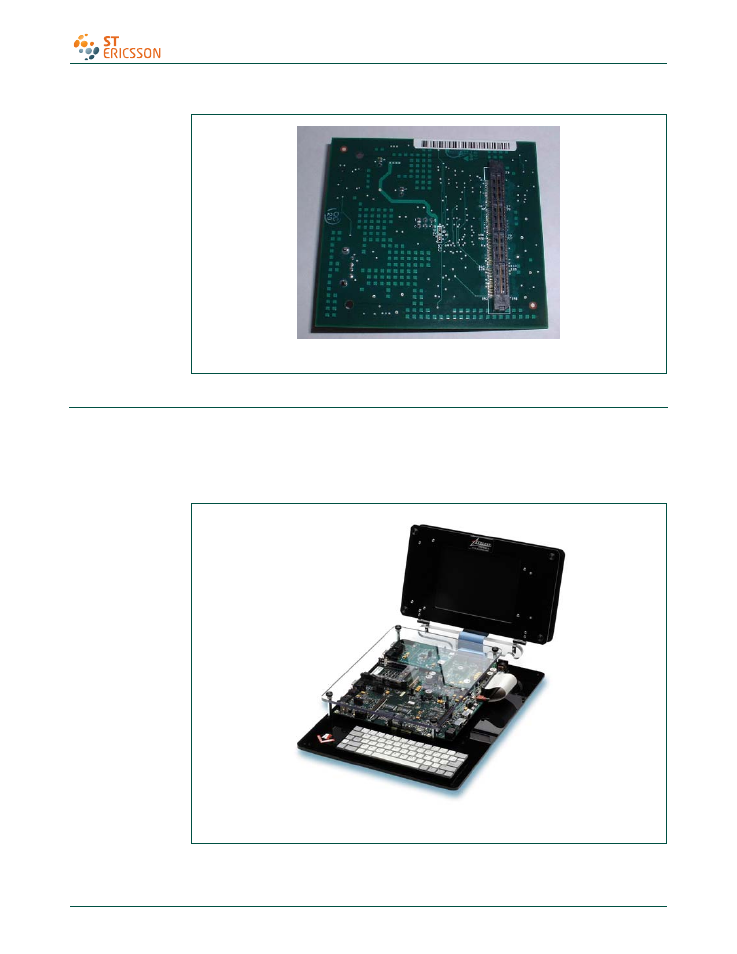

Fig 4. Bottom view of the ISP1362 OTG add-on card for PXA250/255 IDP
2. System requirements
• Two BSQUARE Linux IDP boards (version 2 or later) with the ISP1362 OTG add-on
cards attached.
• One OTG cable.
• A USB speaker.
Fig 5. BSQUARE IDP version 2
