Rowe ISP1362 OTG add-on eval kit with Intel PXA250/255 IDP rev. 4 UM10032 User Manual

Page 16

For DMA accesses, use the following address ranges. This will generate the DMA Acknowledge signals needed. Processor uses CS2#.

User ma

nual

UM10

032

PIO Address Map: 0000 0000h to 00FF FFFFh.
DMA Channel 0 Address Map: 0200 0000h to 02FF FFFFh.
DMA Channel 1 Address Map: 0100 0000h to 01FF FFFFh.

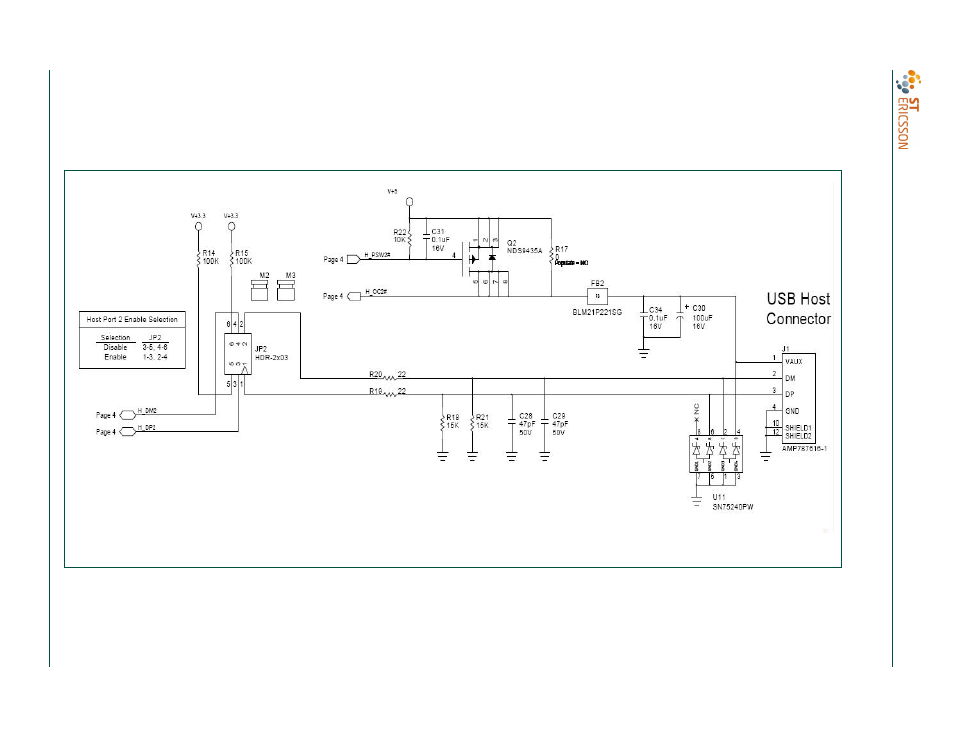

Fig 14. USB OTG and host connectors – part 1 (page 5)
