Chapter 1 7
Connections & Setup
ANTENNA
VIDEO
L
AUDIO
R
75 OHMS
INPUTS
CH3
CH4
SATELLITE RECEIVER
L R VIDEO
OUT
OUT TO TV SATELLITE
IN
IN FROM ANT
OUT TO TV
CH3
CH4
VCR
VIDEO
OUT
L R
AUDIO
IN
L R
From Cable or Antenna
Satellite
Signal
TV
(back panel)
TV
VCR
Satellite

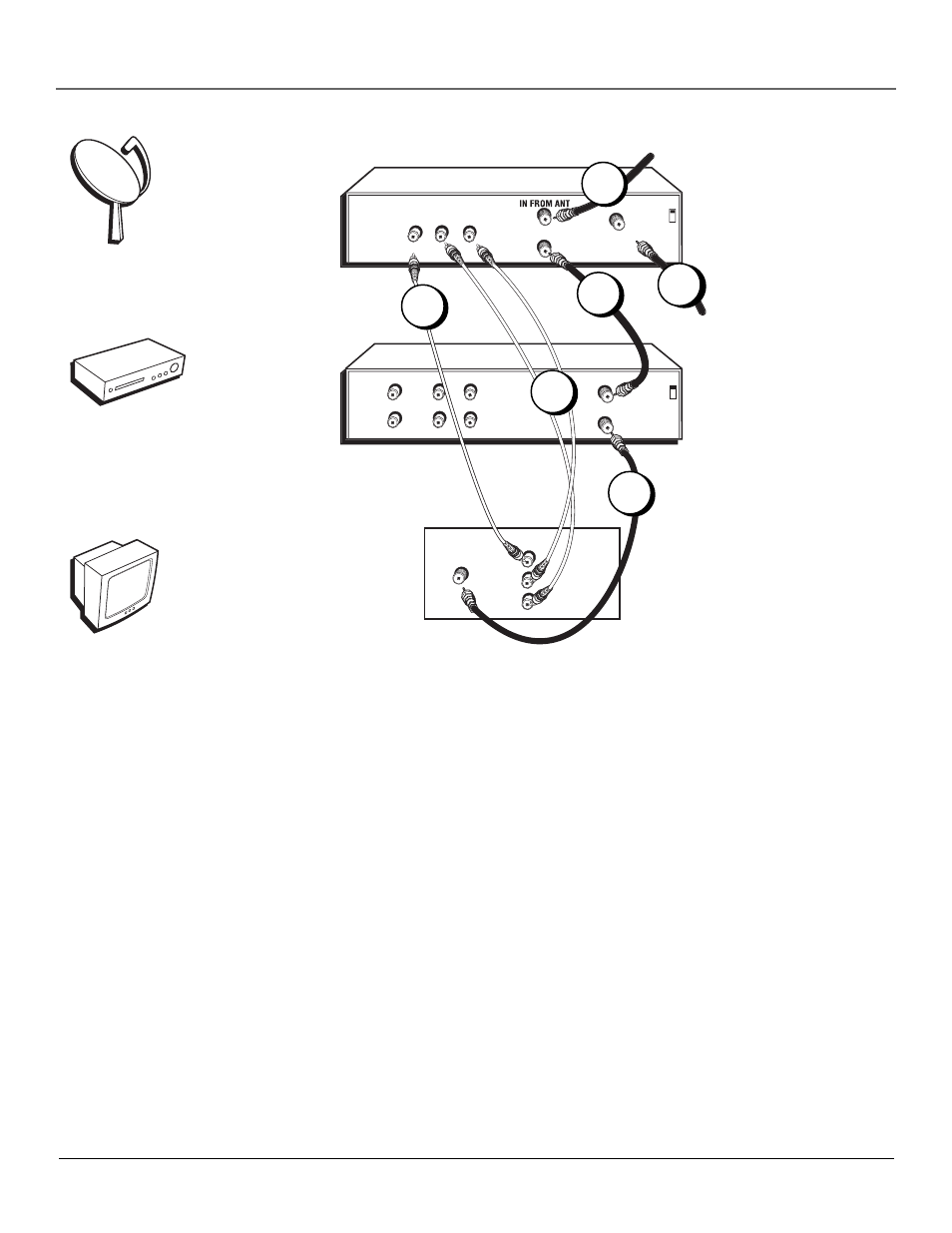

Connection: TV + VCR + Satellite Receiver
1. Connect your Satellite Receiver to your TV
A. Connect the white and red audio cables to the AUDIO IN jacks on the back of the TV and to the
audio output jacks on the satellite receiver.
B. Connect the video cable (yellow) to the VIDEO IN jack on the back of the TV and to the Video
Output Jack on the satellite receiver.
2. Connect coaxial cables to the Satellite Receiver
A. Connect the coaxial cable from your cable outlet, cable box, or antenna to the Input Jack on your
satellite receiver (sometimes labeled IN FROM ANT).
B. Connect the coaxial cable from your satellite dish antenna to the Input Jack on your satellite
receiver (sometimes labeled SATELLITE IN).
3. Connect the Satellite Receiver to the VCR and to the TV
A. Connect a coaxial cable to the Output Jack (sometimes labeled OUT TO TV) on the satellite
receiver and to the Input Jack on the VCR (sometimes labeled IN FROM ANT).
B. Connect a coaxial cable to the Output Jack on the VCR (sometimes labeled OUT TO TV) and to
the CABLE/ANTENNA jack on the TV.
Go to page 9
1A
1B
3A
3B
2B
2A
