Connections & Setup
ANTENNA
VIDEO
L
AUDIO
R
75 OHMS
INPUTS
IN FROM ANT
OUT TO TV
CH3
CH4
VCR
VIDEO
OUT
L R
AUDIO
IN
L R
From Cable,
Cable Box,
or Antenna
TV (back panel)
TV (back panel)
From Cable, Cable Box or Antenna
ANTENNA
VIDEO
L
AUDIO
R
75 OHMS
INPUTS
TV
VCR
2
TV

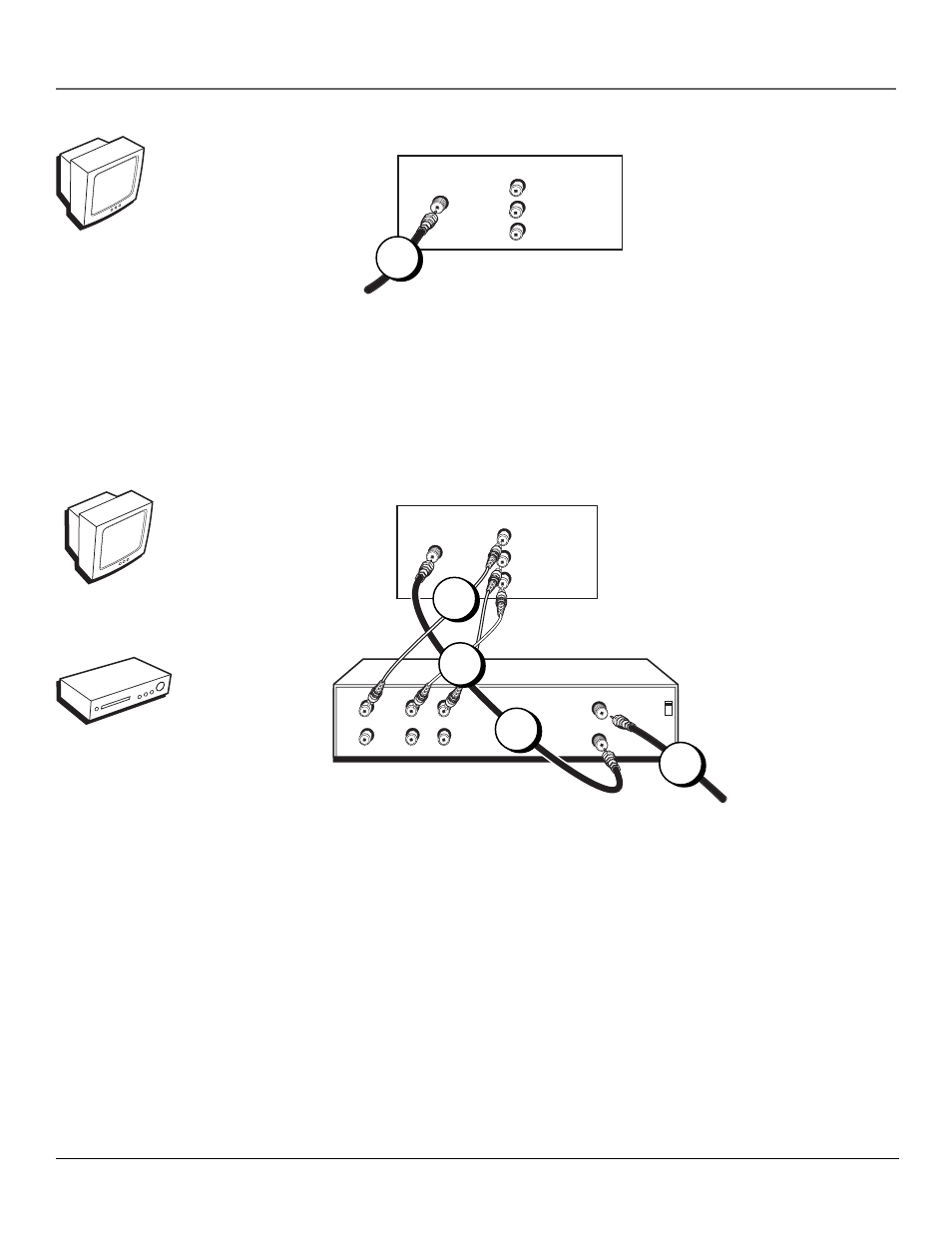

Connection: TV + VCR
1. Connect your TV to your VCR
A. Connect a coaxial cable to the ANTENNA jack on your TV and to the Output Jack on your VCR
(sometimes labeled OUT TO TV).
B. Connect the white and red audio cables to the AUDIO IN jacks on the back of the TV and to
the corresponding audio output jacks on the VCR.
C. Connect the video cable (yellow) to the VIDEO IN jack on the back of the TV and to the Video
Output Jack on the VCR.
2. Connect cable or antenna to your VCR
Connect the coaxial cable from your cable outlet, cable box, or antenna to the Input Jack on your
VCR (sometimes labeled IN FROM ANTENNA or IN FROM ANT).
Go to page 9
1
Connection: TV Only
1. Connect the TV to your cable or antenna
Connect the coaxial cable from your cable or antenna to the ANTENNA jack on the back of your TV.
Go to page 9
