Example: The Punch 3x ships with three (3) 100Hz XCards set in the
Full Range position. The crossover will pass through all 20Hz - 20kHz

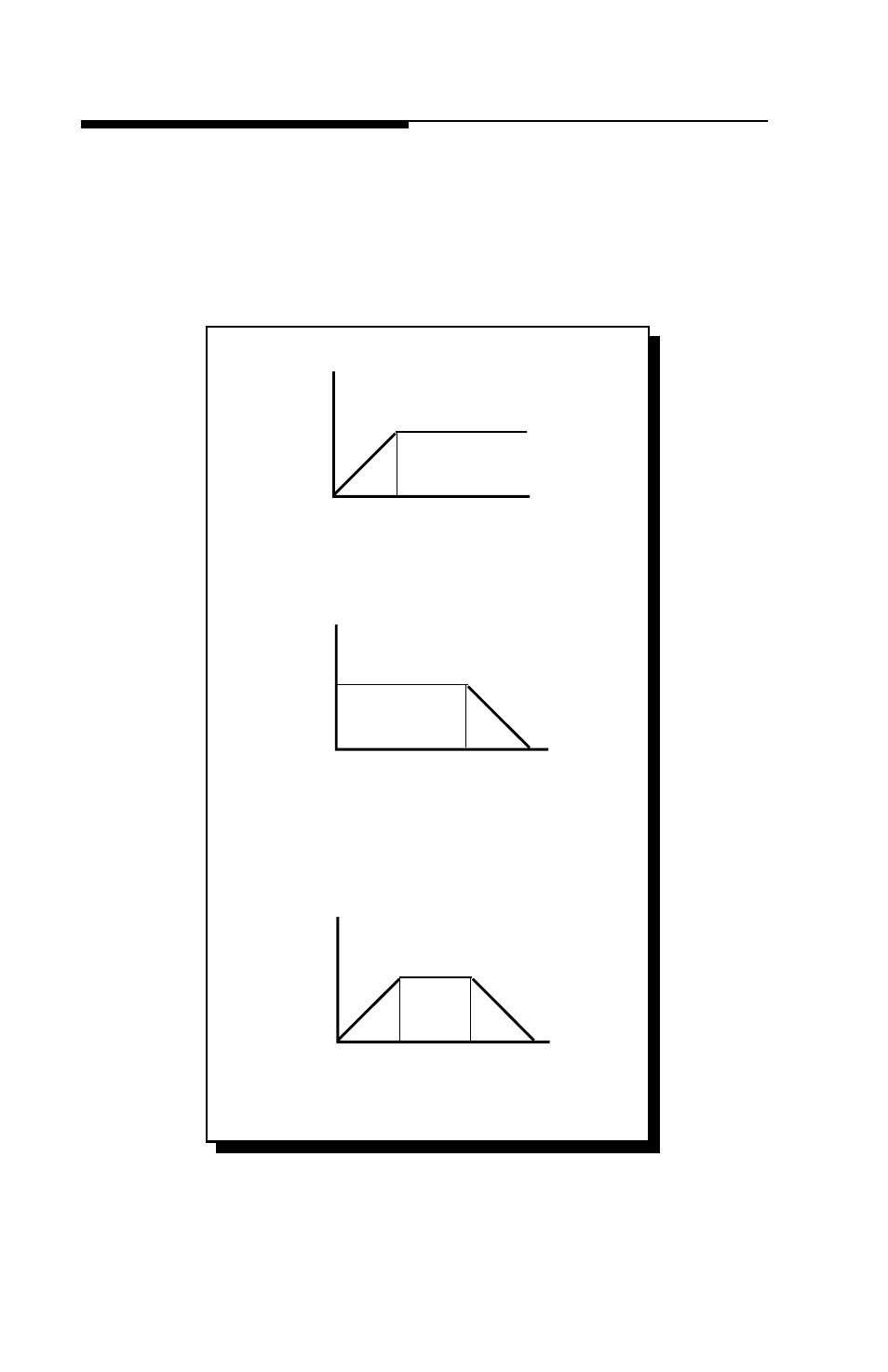

frequencies. The following diagram shows examples of the types of
response curves when programming for a High-Pass, Low-Pass or
Bandpass setting.
– 9 –
High-Pass Crossover Setting Response
Low-Pass Crossover Setting Response
Bandpass Crossover Setting Response
(3x and 5x only)
Note: The Punch 3x and 5x Dual-Filtered Output Channels contain a blank
crossover card. As with the Front and Rear Outputs, the default positioning
for these cards is set at Full Range.
