10 — English
TElEsCopINg booM

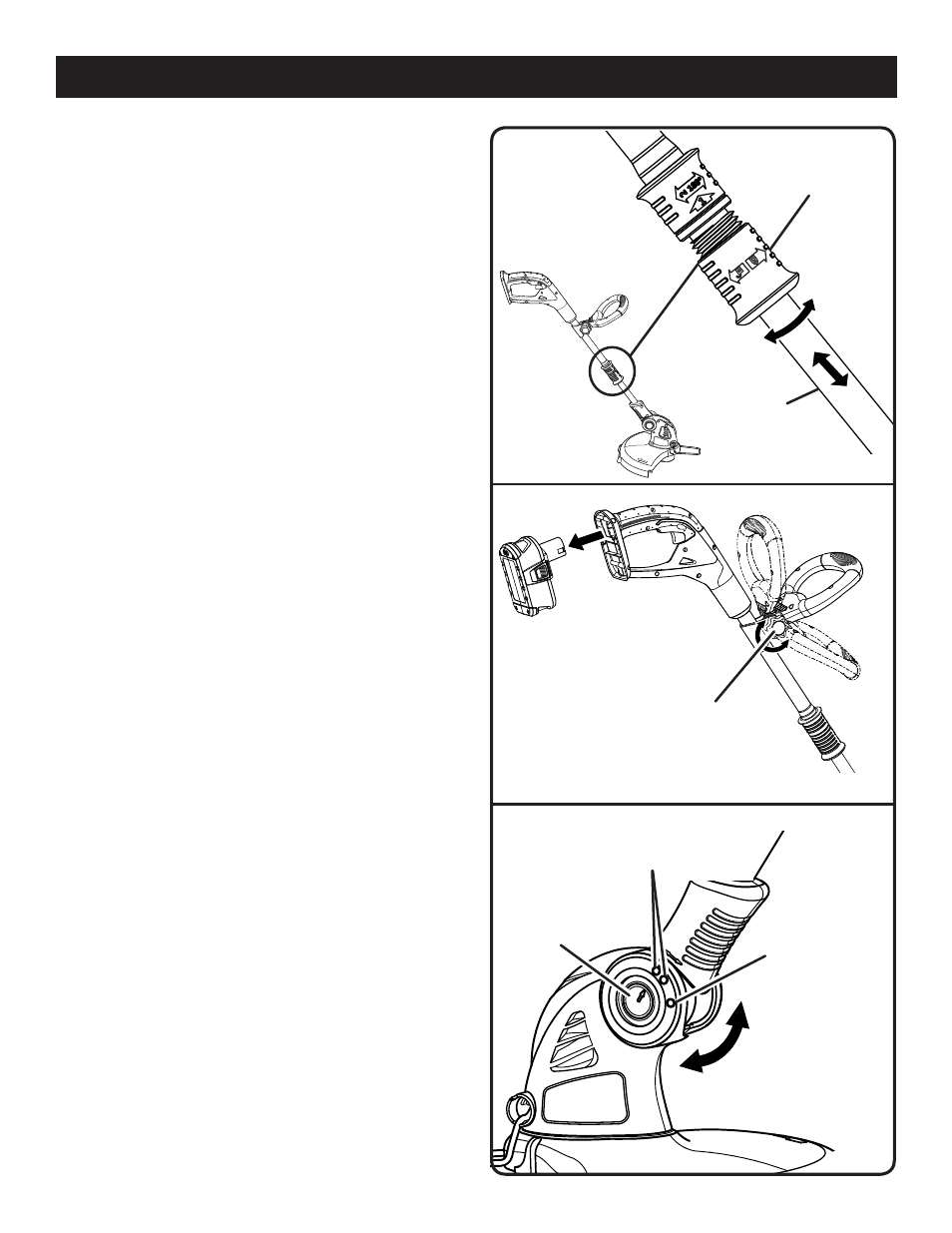

See Figure 6.
The boom can be extended or shortened for ease of use.

Remove the battery pack.
 Loosen the telescoping boom coupler by turning it coun-
terclockwise. Slide the boom to the desired position.
 Tighten the coupler by turning clockwise. Make sure the
boom is securely tightened before reinstalling the battery
pack.
ADjUsTAblE FRoNT hANDlE
See Figure 7.
The angle of the front handle can be adjusted 180°.

Remove the battery pack.
 Set the trimmer on a flat surface and turn the knob coun-
terclockwise to loosen the handle.
 For trimming, adjust the handle upward.
 For edging, adjust the handle downward.
 Turn the knob clockwise until the handle is securely
tightened before reinstalling the battery pack.
ThREE-posITIoN pIVoTINg hEAD
See Figure 8.
The trimmer head can be adjusted to three different
positions.

Remove the battery pack.
 Depress the pivot button and move the trimmer head up
or down to one of the three positions indicated by the
notches.
NoTE: Adjust the trimmer head to the first and second
notches for trimming and edging. Adjust to the third notch
for storage only.
 Make sure the trimmer head is securely locked into place
before reinstalling the battery pack.
opERATIoN
tElEscoPING
BooM coUPlER
Fig. 6
Fig. 7
PIVot
BUttoN
kNoB
NotcH 3: stoRaGE
PosItIoN oNlY
loosEN
tIGHtEN
BooM
Fig. 8
NotcHEs 1 aND 2: tRIMMING
aND EDGING
