C HAPTER 4: T WO -T IER C ONFIGURATION 11
Chapter 4: Two-Tier Configuration
You may cascade MasterConsole II units to create a two-tier configuration. In a two-tier configuration, a
mix of devices – computers and MasterConsoles – may be connected to the channels of the first tier-
referred to as the base MasterConsole II.
The second-tier MasterConsole may be any combination of MasterConsole IIs, or MasterConsole P Models,
which may be banked. Only computers may be connected to the channels of the any second-tier
MasterConsole.

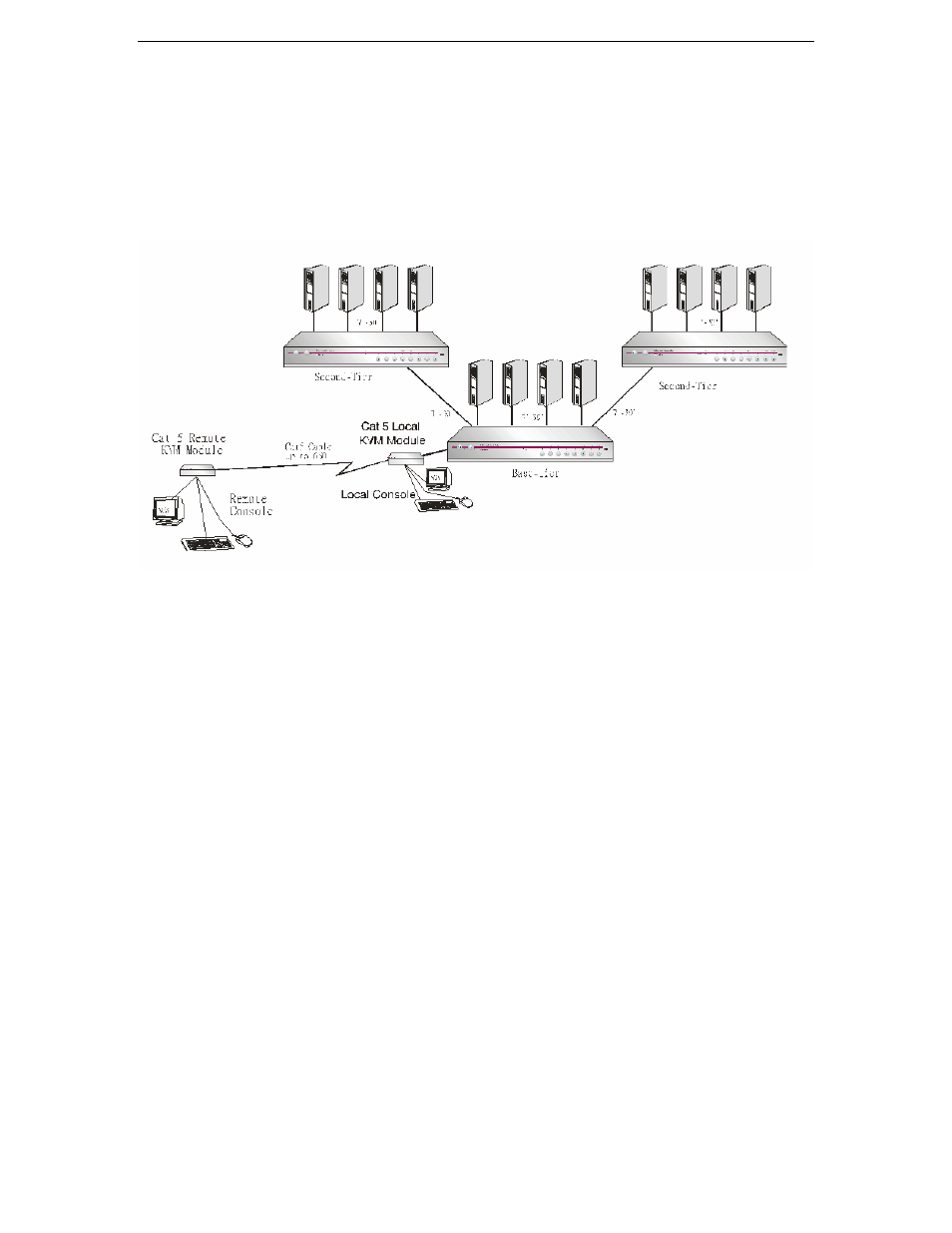

Figure 17 Two-Tier Configuration (with optional Remote Access Kit)
