12

Lens Option 1: Throw Distance 1.2 - 1.4 x Width of Screen

When only Vertical or only Horizontal Shift is used:
Maximum. Vertical Shift = 60% of screen height (.6 x height)
Maximum Horizontal Shift = 25% of screen width (.25 x width)

Amount of Horizontal Shift when Vertical is @ maximum:
Maximum Horizontal Shift = 5% of screen width (.05 x width)

Amount of Vertical Shift when Horizontal is @ maximum:
Maximum Vertical Shift = 10% of screen height (.10 x height)

Explanation:
• 0% shift is when the image center is even with the projector lens center - also known

as zero-degree projection-angle

• Shifting beyond the maximum values above will cause image loss in corners or edges
• When Vertical Shift is maximum, Horizontal shift can only be adjusted 5% left or right

in example above

• The maximum diagonal movement of the image is expressed as shift in 2 directions,

this is the maximum combination of
adjustment (ex. Up & Left, Down & Right, Up & Right, Down & Left)

• Throw distance does not affect image quality
• Lens shift does not affect image quality if within above limits

Example: 56" x 100" Screen
TD = 120" to 140" lens to screen

0.60 X 56" = 33.6" up or down
0.25 X 100" = 25.0" left or right

0.05 X 100" = 5.0" left or right

0.10 X 56" = 5.6" up or down

Lens Option 2: Throw Distance 1.4 - 1.77 x Width of Screen

When only Vertical or only Horizontal Shift is used:
Maximum. Vertical Shift = 60% of screen height (.6 x height)
Maximum Horizontal Shift = 25% of screen width (.25 x width)

Amount of Horizontal Shift when Vertical is @ maximum:
Maximum Horizontal Shift = 5% of screen width (.05 x width)

Amount of Vertical Shift when Horizontal is @ maximum:
Maximum Vertical Shift = 10% of screen height (.10 x height)

Explanation:
• 0% shift is when the image center is even with the projector lens center - also known

as zero-degree projection-angle

• Shifting beyond the maximum values above will cause image loss in corners or edges
• When Vertical Shift is maximum, Horizontal shift can only be adjusted 5% left or right

in example above

• The maximum diagonal movement of the image is expressed as shift in 2 directions,

this is the maximum combination of adjustment (ex. Up & Left, Down & Right, Up &
Right, Down & Left)

• Throw distance does not affect image quality
• Lens shift does not affect image quality if within above limits

Example: 56" x 100" Screen
TD = 140" to 177" lens to screen

0.60 X 56" = 33.6" up or down
0.25 X 100" = 25.0" left or right

0.05 X 100" = 5.0" left or right

0.10 X 56" = 5.6" up or down

Normal Projection Position

104% or 58.2"

104% or 58.2"

48% or 48"

48% or 48"

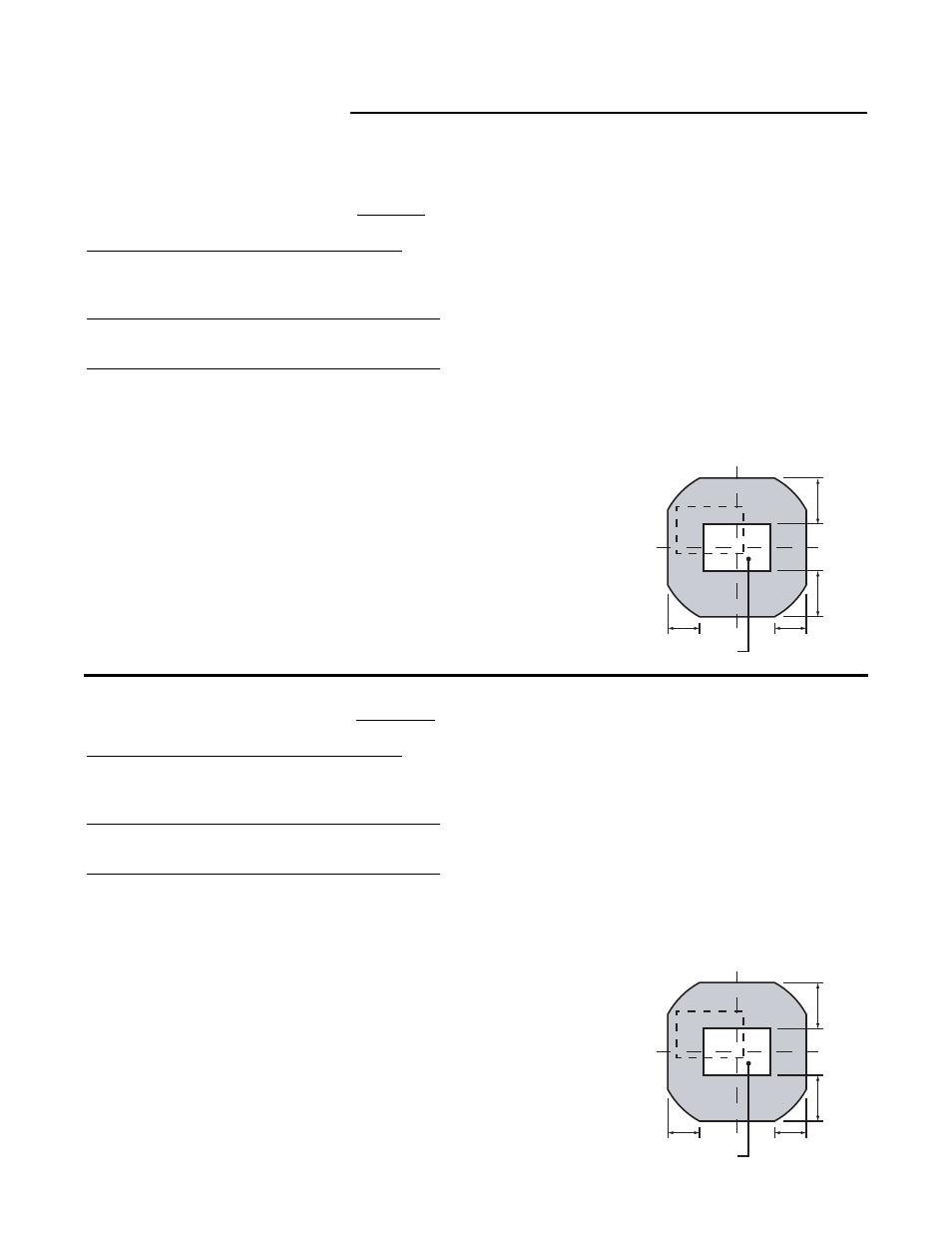

The examples show the location of the image position in the lens. The lens can be shifted within the shaded area as shown using the
normal projection position as a starting point. Note: If lens is shifted in two directions combined, max. range in either direction cannot be
obtained due to rounded off area near edge of lens. (Example: shift up and left). See diagrams below:

Lens Shift Range

Normal Projection Position

90% or 50.4"

90% or 50.4"

40% or 40"

40% or 40"
