FEATURES

KNOW YOUR PLANER

See Figure 2.
Before attempting to use your portable planer, familiarize
yourself with all the operating and safety requirements.

15 AMP MOTOR

Your planer has a powerful 15 amp motor with sufficient
power to handle tough cutting jobs.

AUTOMATIC FEED

Infeed and outfeed rollers feed the wood through the
planer.

CUTTER HEAD ASSEMBLY

The cutter head assembly controls the depth of cut.

DEPTH ADJUSTMENT HANDLE

The depth adjustment handle is used to raise and lower the
cutter head assembly.

DUST COLLECTION HOOD

The dust collection hood features a quick flip-up dumping
door and a 2-1/4 in. dust port for connecting to a shop
vac.

HIGH-SPEED REVERSIBLE BLADES

Two reversible high-speed blades provide twice the cutting
life.

POWER SWITCH AND SWITCH KEY

Your planer has an easy access power switch with a remov-
able switch key.

THICKNESS SCALE

The thickness scale accurately displays the height of the
cutter blades to a maximum of 6 in.

WORK TABLE

The work table supports your workpiece.

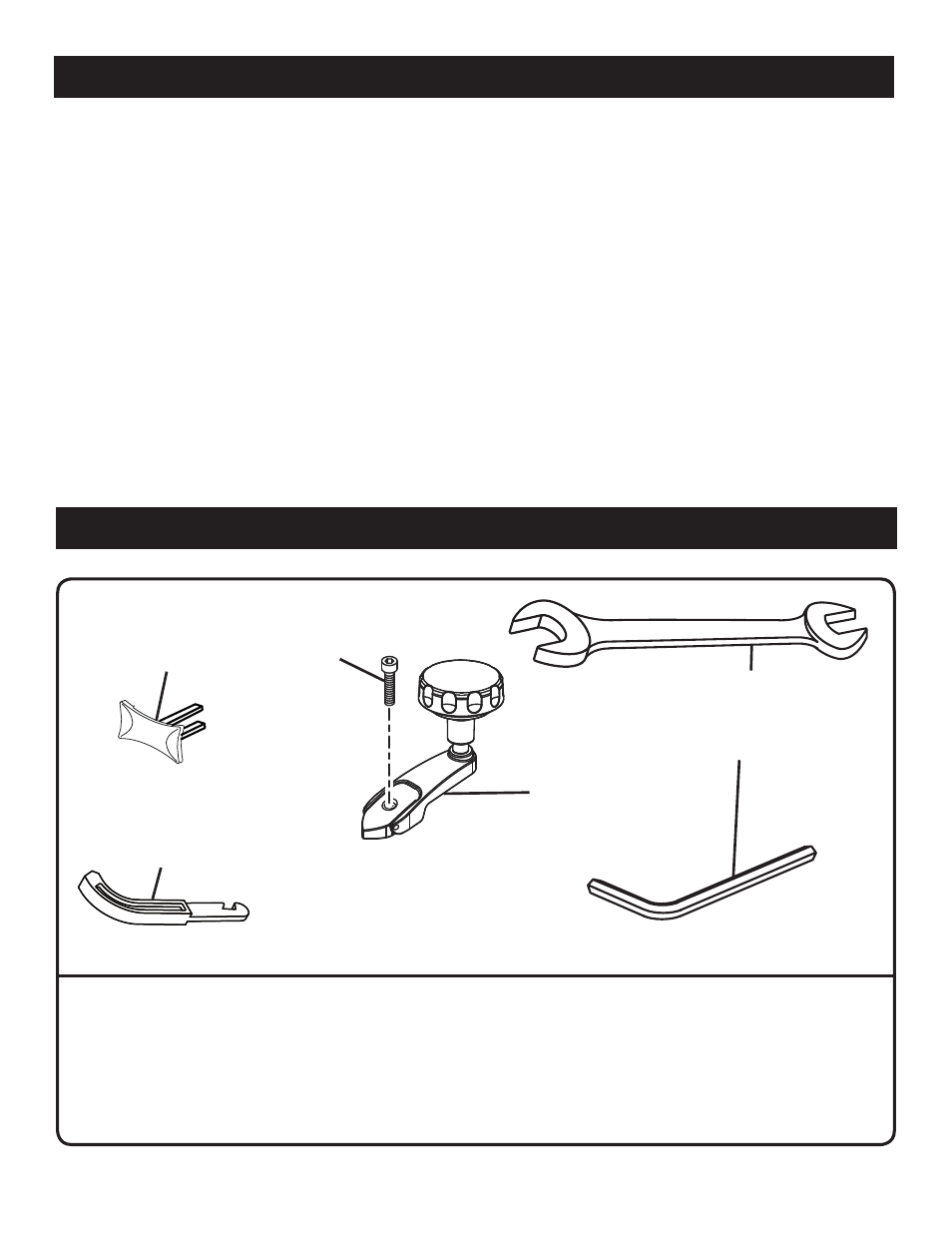

LOOSE PARTS

1

Depth Adjustment Handle ...................................................................................................................1

2

Screw...................................................................................................................................................1

3

Switch Key...........................................................................................................................................1

4

Magnetic Blade Wrench ......................................................................................................................1

5

Hex Key ...............................................................................................................................................1

6

Open-end Wrench ...............................................................................................................................1

Key No.

Description

Qty.

5

Fig. 3

3

4

1

6

2
