To connect the ANT1450 with the
amplifier to a converter box:
1. Make sure your converter box is turned
off.
2. Connect the ANT1450’s built-in cable
to the input jack of the amplifier.
3. Connect the amplifier’s cable to the
antenna input on the converter box.
4. Connect the converter box to your TV
using either audio/video cables or a
coaxial cable:
a. Audio/Video cable connection:
Connect the video (yellow) and stereo
audio (red and white) cables to the
video and audio outputs on your
converter box. Connect the other ends
to the video and audio inputs on your
TV. Make sure you match the colors
of the jacks on each—yellow plug to
yellow jack, red plug to red jack, and
white plug to white jack.
b. Coaxial cable connection: Connect a
coaxial cable to the antenna output on
your converter box. Connect the other
end of the coaxial cable to the antenna
input on your TV.
5. Plug the amplifier’s power cord into an
electrical outlet.
Important: This power unit is intended to be
correctly oriented in a vertical or floor mount
position.
6. Re-scan for channels on your converter
box.

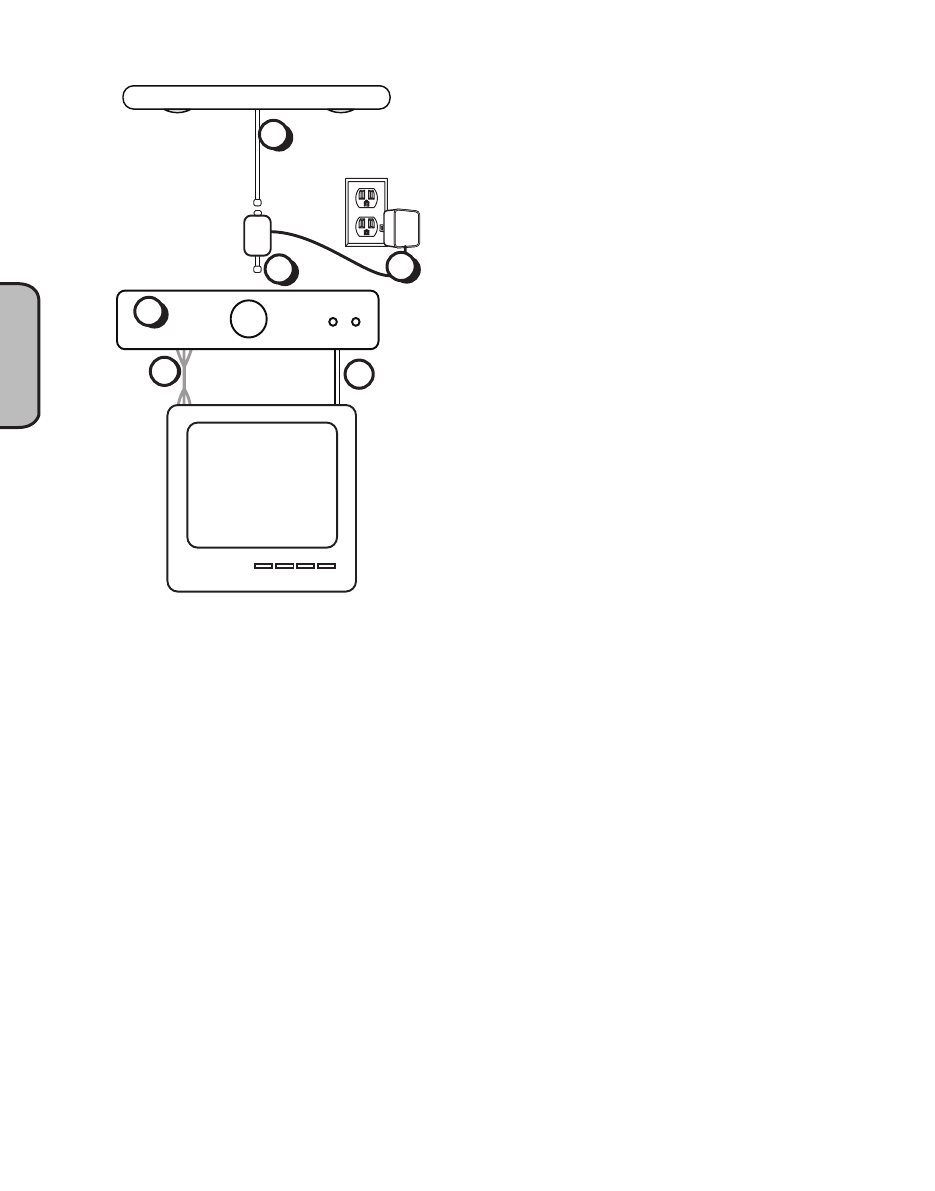

Converter Box
