Blade removal-
refer figure 5
•
Move the throttle control to the stop position and remove the spark plug lead from the spark plug
•
Tilt the mower back on it’s handle bars with the spark plug upwards and secure safely in
position
•
Remove the single central retaining bolt and large domed washer and remove the blade from
the blade boss
•
Check the condition of the blade and replace the blade if badly damaged or return to an
authorized service dealer for blade sharpening and balancing
Blade fitting- refer figure 5
•
Move the throttle control to the stop position
and remove the spark lead from the spark plug
•
Tilt the mower back on it’s handle bars with the
spark plug upwards and secure safely
•
Check the condition of all components before
fitting to the engine shaft and
replace any if damaged
•
Ensure that the key is located in the
engine shaft if the blade boss has been re-
moved
•
Fit the blade to the bottom side of the blade
boss aligning the two spigots on the blade
boss with the two holes in the blade. The flutes
at the ends of the blade should be facing into
the mower base.
•
Fit the centre bolt with the large domed washer
through the centre of the blade and into the
engine shaft and torque to 57 to 62Nm (42 to 46 ft.lbs). Note: the domed washer needs to be
fitted to the blade with the raised dome pointing away from the blade bottom face
•
Lower the mower to the ground and fit the spark plug lead to the spark plug
Cleaning
To prevent the build up of grass under the deck and to maintain the appearance of the mower it
should be cleaned at the end of each days mowing.
•
Stop the engine and remove the spark plug lead when the blade has stopped
•
Remove the grass catcher and tilt the mower back on it’s handle bars
•
Hose the underside of the mower housing to remove all grass build up
•
Lower the mower to the ground and fit the spark plug lead to the spark plug
•
Hose the fabric grass catcher inside and out to remove all grass debris and hang up to dry
before storage

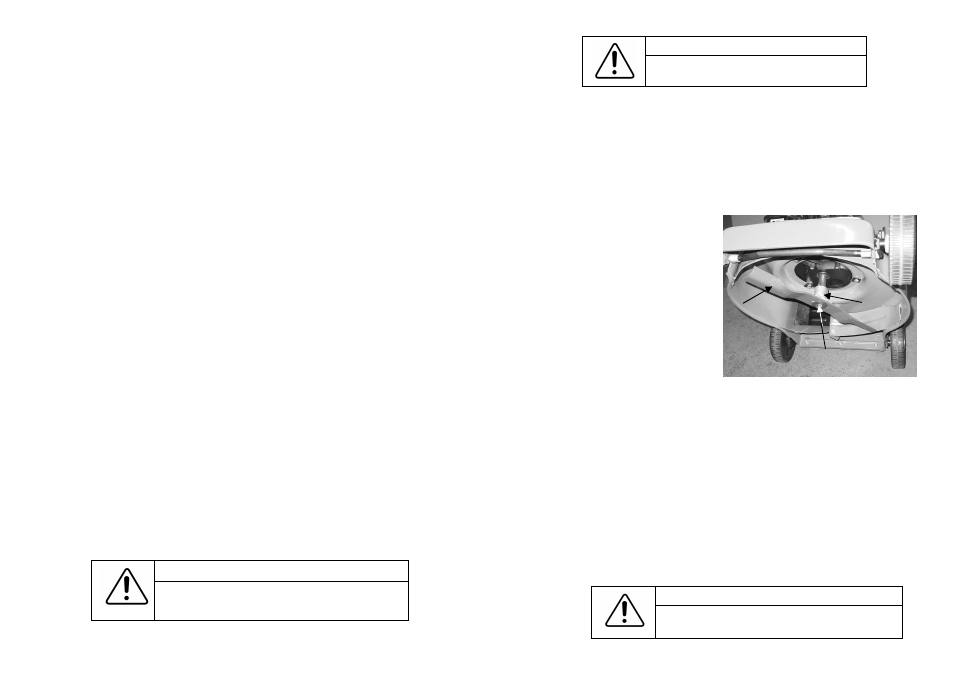

Figure 5. Underside of mower base
Blades should only be sharpened and balanced by
an authorized service dealer.
WARNING
Do not hose the engine as water can damage the air
cleaner and ignition system
CAUTION
SAFETY INSTRUCTIONS
• Never mow while barefoot or wearing open sandals or thongs. Wear long trousers and heavy
shoes
• Know your controls. Read the owner’s manual carefully. Learn how to stop the engine quickly
in any emergency
• Make sure the lawn is clear of sticks, stones, bones, wire and debris. They could be thrown by
the blade
• Stop the engine and disconnect the spark plug wire before clearing blockages, checking or
working on the mower.
• Before using, always inspect to see that blades, blade bolts and cutter assembly are not worn
or damaged. Replace worn or damaged blade to preserve balance.
DAMAGED BLADES AND WORN BOLTS ARE MAJOR HAZARDS.
• Check all nuts, bolts and screws often; always be sure the mower is in a safe operating
condition. Use only genuine replacement parts.
• Refuel outdoors only. Do not smoke while fuelling engine. Add fuel before starting the engine.
Never remove the cap off the fuel tank or add petrol while the engine is running or the engine
is hot. If petrol is spilled, do not attempt to start the engine but move the machine away from
the area of the spill and avoid creating any source of ignition until petrol vapours have
dissipated.
• Do not mow whilst people, especially children or pets are in the mowing area.
• Replace worn or faulty silencers (muffler)
• Mow only in good daylight.
• Never use the mower unless the grass catcher or guards (rear flap) provided by the
manufacturer are in position.
• Start the engine carefully with feet well away from the blade.
• Do not operate the engine in a confined space where exhaust fumes (carbon monoxide) can
collect.
• Stop the engine whenever you leave the mower, even for a moment.
• Do not allow children or people unfamiliar with these instructions to use the mower.
• Store the mower in a well-ventilated room away from naked flames such as may be found in
hot water heaters.
• Do not over-speed the engine or alter governor settings. Excessive speed is dangerous and
shortens the mower life.
• It is advisable to wear suitable eye protection when operating a mower.
• Turn the fuel off at the conclusion of mowing and reduce the throttle setting during engine
run-out.
• Store fuel in a cool place in a container specifically designed for the purpose. In general,
plastic containers are unsuitable.
• Stop the engine, disconnect the spark plug wire and inspect the mower if :
a) the mower begins to vibrate abnormally; or
b) after striking a foreign object.
• Never cut grass while walking backwards.
• Stop the engine before pushing the mower across gravel drives, walkways or roads.
• Walk, never run.
• Mow across the face of slopes, never up and down. Exercise extreme caution when changing
direction on slopes. Do not mow excessively steep slopes.
• Never pick up or carry a mower when it is operating.
CAUTION
To avoid engine damage drain the oil and fuel from the
engine before turning the lawnmower over in any direction.
1
6
Blade Blade boss
Centre bolt & domed
washer
