US-3

HTZ2460/HTZ2460L/CHTZ2460/CHTZ2460L

U
S

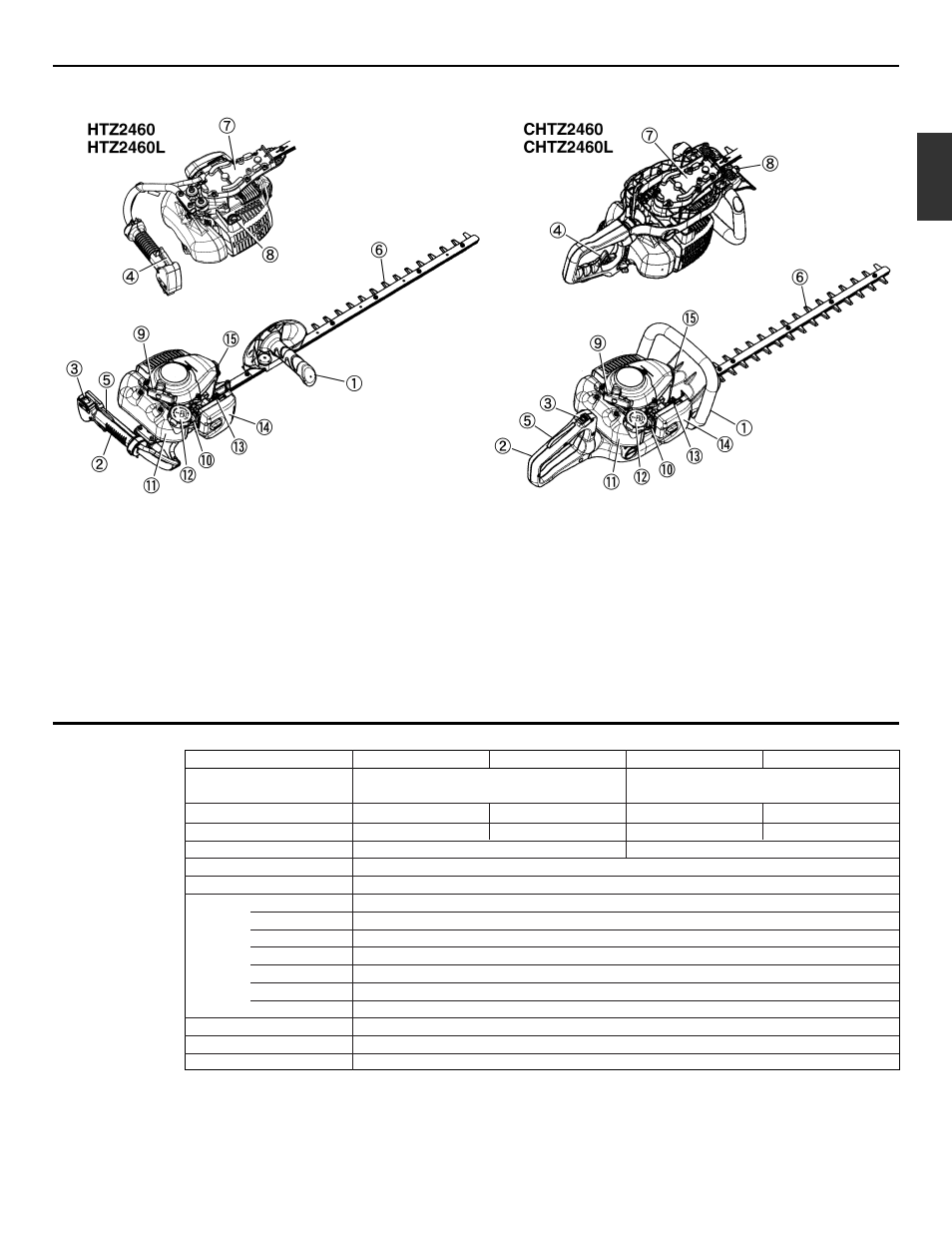

1. Parts location

2. Specifications

1. Front handle
2. Rear handle
3. Ignition switch
4. Throttle lever
5. Safety lock
6. Blade
7. Gear case
8. Spark arrester

9. Starter knob

10. Primer pump
11. Fuel tank
12. Fuel tank cap
13. Choke lever
14. Air cleaner cover
15. Spark plug cap

Model

HTZ2460

HTZ2460L

CHTZ2460

CHTZ2460L

Type

Reciprocating

Reciprocating

single-sided dual blades

double-sided dual blades

Dry weight

5.8(kg)/12.6(lbs)

6.4(kg)/14.1(lbs)

5.8(kg)/12.8(lbs)

6.0(kg)/ 13.2(lbs)

Blade size

750(mm)/ 30(in)

1080(mm)/ 42.5(in)

600(mm)/ 24(in)

750(mm)/ 30(in)

Blade pitch

35(mm)/ 1.38(in)

34(mm)/ 1.34(in)

35(mm)/ 1.38(in)

Transmission

Centrifugal clutch, Cam-crank

Reduction ratio

4.5

Engine

Type

Air-cooled 2-stroke gasoline

Mode

GZ23N

Displacement

23.6(cm

3

)/ 1.44(cu-in)

Max. output

1.15Hp(0.85kW)/8000 min

-1

(rpm)

Idle speed

3000±200 / min

-1

(rpm)

Fuel

mixture(Gasoline 50 : Oil 1)(when using RedMax genuine oil)

Carburetor

Walbro Diaphragm type

Spark plug

NGK CMR7H

Fuel tank capacity

0.47(litter)/15.9(fl.oz)

Durability period

300(hrs.)

Specifications are subject to change without notice.
