www.pyleaudio.com
2

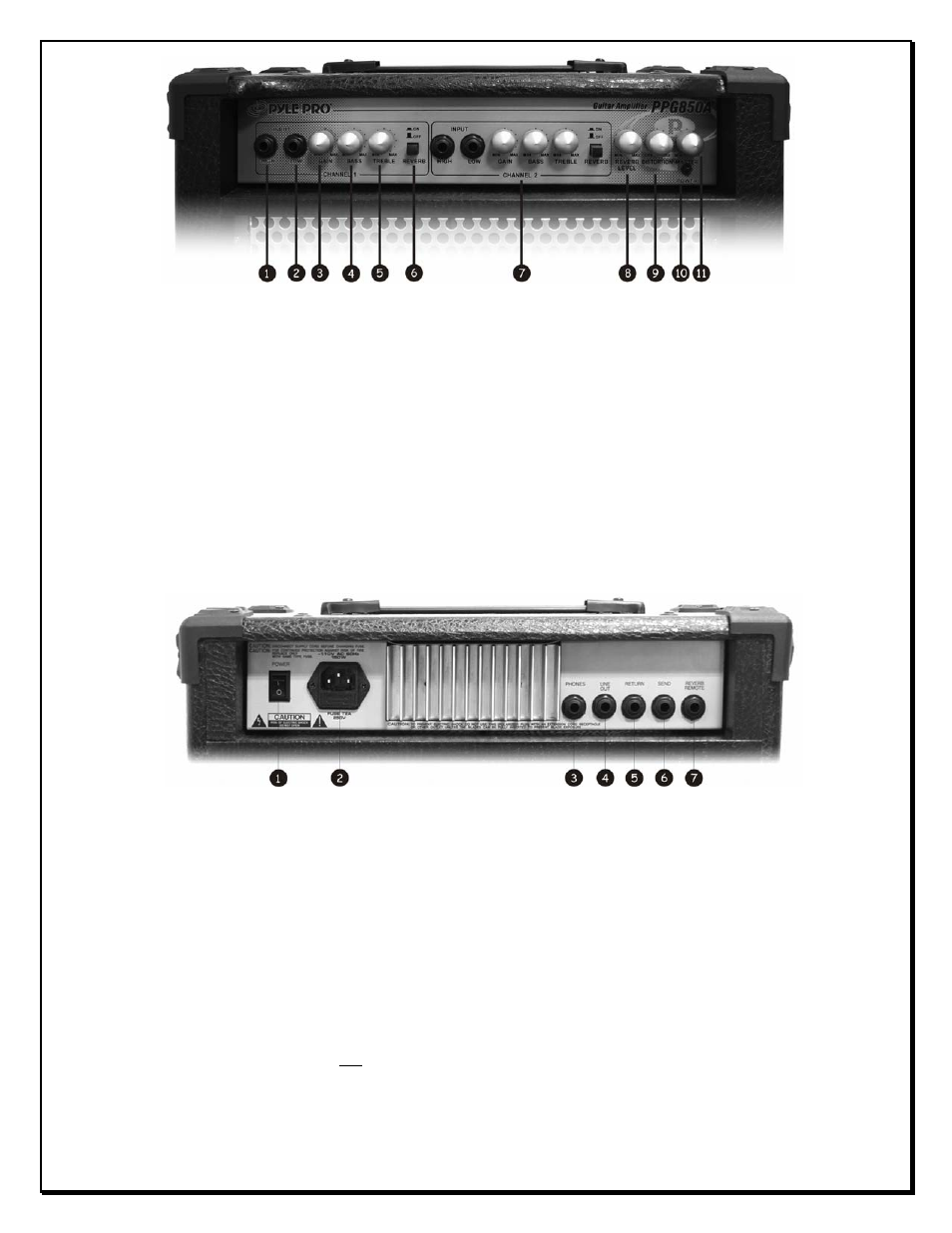

1)
High Input Jack: Connect high
level devices to this jack.
2)
Low Input Jack: Connect low
level devices to this jack.
3) Gain: This sets the volume gain
level for Channel 1.
4) Bass: This control adjusts the low
frequency level.
5) Treble: This control adjusts the
high frequency level.
6) Reverb: Switches on/off the
reverb effect for Channel 1.
7)
Channel 2 Controls: Same as for
Channel 1.
8)
Reverb level: Adjusts overall
reverb level for both channels.
9) Distortion: Adjusts overall
distortion effect. Turn to off for
no effect.
10) Power LED: Illuminates when
power is switched on.
11) Master: Adjusts overall volume.
1) Power Switch: Switches amplifier
on/off.
2) Power Cord: Connect the included
power cord here. Plug into a
grounded power outlet only!
3)
Phones: This is your headphone
connection. Inserting the
headphones disables the internal
speaker (great for practicing).
4) Line Out: Lets you output a line
level signal (non-amplified).
Internal speaker is not disabled.
5)
Return: Use this jack to bring
back processed signal (see 6).
6) Send: This jack lets you insert an
effects processor into the signal
path.
7)
Reverb Remote: Connect a
footswitch (not included) to
remotely switch on/off the
internal reverb effect.
