RocketFish RF-TVMUC01 - Manual

Tools you will need:
Thank you for choosing the
Rocketfish RF-TVMUC01.
The RF-TVMUC01 TV mount
is designed to support
a TV weighing up to
35 lbs. (15.9 kg).

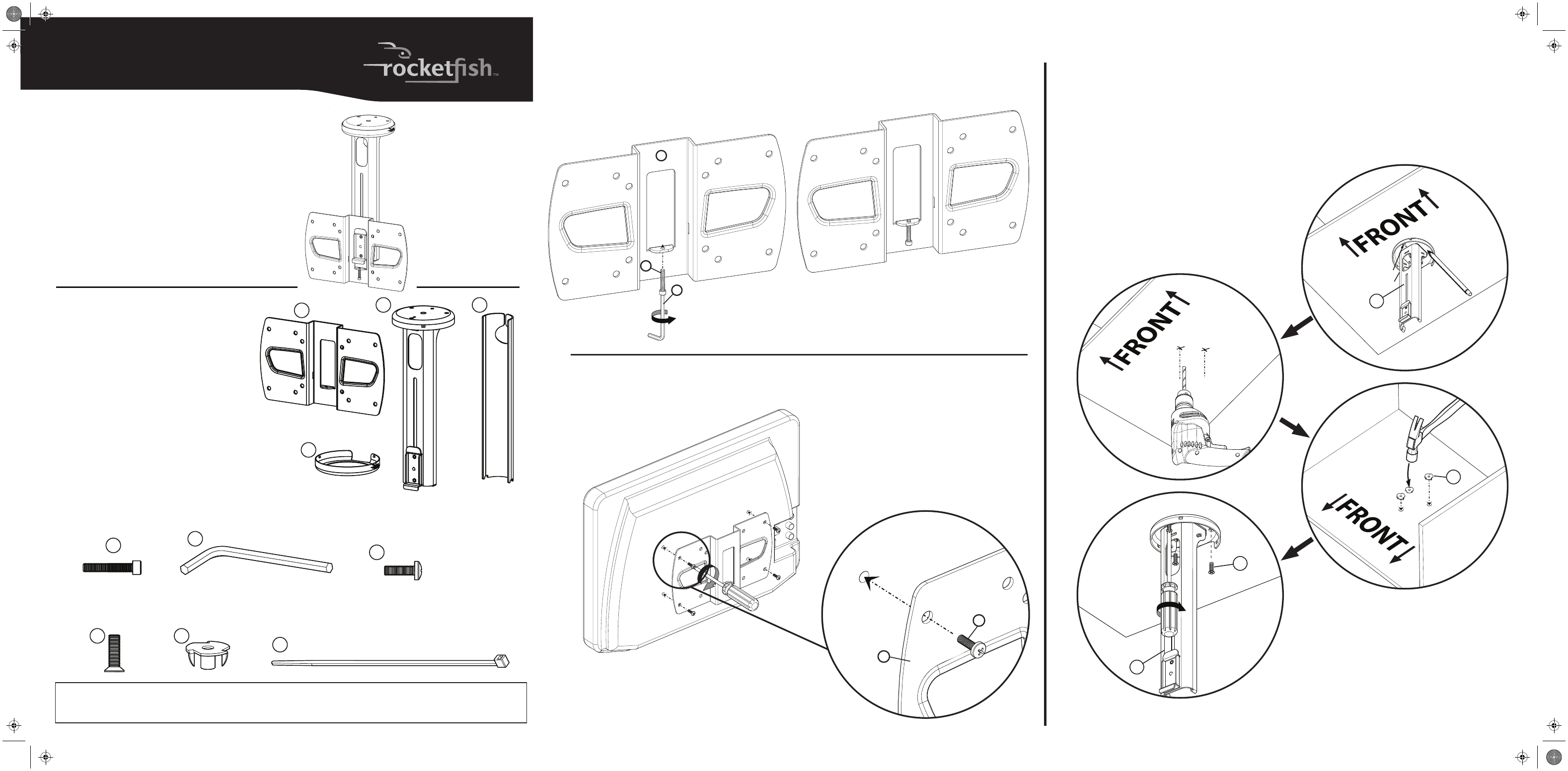

QUICK SETUP GUIDE
RF-TVMUC01
1: Install the locking screw
Screw the TV bracket locking screw (E)into the TV bracket (A) using the
hex key (F). Do not screw in more than three or four turns.
3: Install the under cabinet mount
Note: Cabinet thickness must not be less than 7/16 in.
a. Use the ceiling plate of the under cabinet mount (B) as a template to mark the hole locations.
b. Drill holes through the bottom of the cabinet using a 1/4” drill bit.
c. Tap the three 3-prong T-nuts (I) into the holes in the upper surface of the cabinet. Be careful not to
damage cabinet surface.
d. Attach the under cabinet mount (B) to the bottom surface of the cabinet using the
three cabinet mounting screws.
Package contents
A TV bracket (1)
B Under cabinet mount (1)
C Plate cover (1)
D Cable cover (1)
Locking hardware
E TV bracket screw (1)
F 5/32 in. hex key (1)
M4 bag
G M4 x 12 mm screws (4)
Mounting hardware
H Cabinet mount screws (3)
10-24 x 5/8 in. phillips flat head screws
I 3 prong T-nuts (3)
Wire ties
J 8 in. Black Wire Ties (3)
2: Attach the TV bracket
Attach the TV bracket (A) to the back of the TV using the four screws (G).
F
H I
J
G
E
Locking hardware
Mounting hardware Wire ties
M4 bag
• Pencil
• Phillips screwdriver
• Hammer
• ¼ in. wood drill bit
• Power drill
E
F
A
A
G
a
b
c
d
10-24 x 5/8 in.
M4 x 12 mm
5/32 in.
B
B
H
I
A
B
C
D
RF-TVMUC01_10-0665 QSG _V3_EN_final press.pdf 1 8/4/2010 2:01:50 PM
