RocketFish RF-TVMFM02 - Manual

1 Install the TV bracket
Option 1: Installing for a flat mounting surface
1 Align the TV bracket (A) with the screw holes on the back of the TV.
2 Place the M4/M5 washers (H) or M6/M8 washers (O) over the holes in the TV bracket,
then insert the M4 screws (F), M5 screws (J), or M6 screws (L or M) through the washers.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
2 Install the arm assembly
Note: Any material covering the wall must not exceed 5/8 in. (16 mm).
Option 1: Installing to a wood stud wall
1 Locate the stud. Verify the center of the stud with an awl
or thin nail or use an edge-to-edge stud finder.
2 Level the arm assembly (B) and mark the hole locations.
3 Drill pilot hole to a depth of 3 in. using a 7/32 in. diameter drill bit.
4 Align the arm assembly (B) with the pilot holes.
5 Place the washers (D) over the holes in the
arm assembly, insert the lag bolts (E)
through the washers, then tighten
the lag bolts only until the washers
are pulled firmly against the arm
assembly.
CAUTION: Avoid potential injuries or
property damage!
DO NOT over-tighten the lag bolts (E).
Option 2: Installing for an obstructed mounting surface
Note: Use additional washers (H) with M4/M5 hardware only.
1 Align the TV bracket (A) with the screw holes on the back of the TV.
2 Place the M4/M5 washers (H) or M6/M8 washers (O) over the holes in the TV bracket,
then insert the M4 screws (G), M5 screws (K), or M6 screws (N or Q) through the washers.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
Option 2: Installing to a solid concrete or concrete block wall
1 Level the arm assembly (B) and mark the hole locations.
2 Drill pilot hole to a depth of 3 in. using a 3/8 in. diameter drill bit.
3 Insert the concrete wall anchors (C) into the pilot holes
and make sure that the anchors are seated flush with
the concrete surface.
4 Align the arm assembly (B) with the anchors.
5 Place the washers (D) over the holes in the arm assembly,
insert the lag bolts (E) through the washers, then tighten
the lag bolts only until the washers (D) are pulled firmly
against the arm assembly.
CAUTION: Avoid potential injuries or property damage!
DO NOT over-tighten the lag bolts (E).

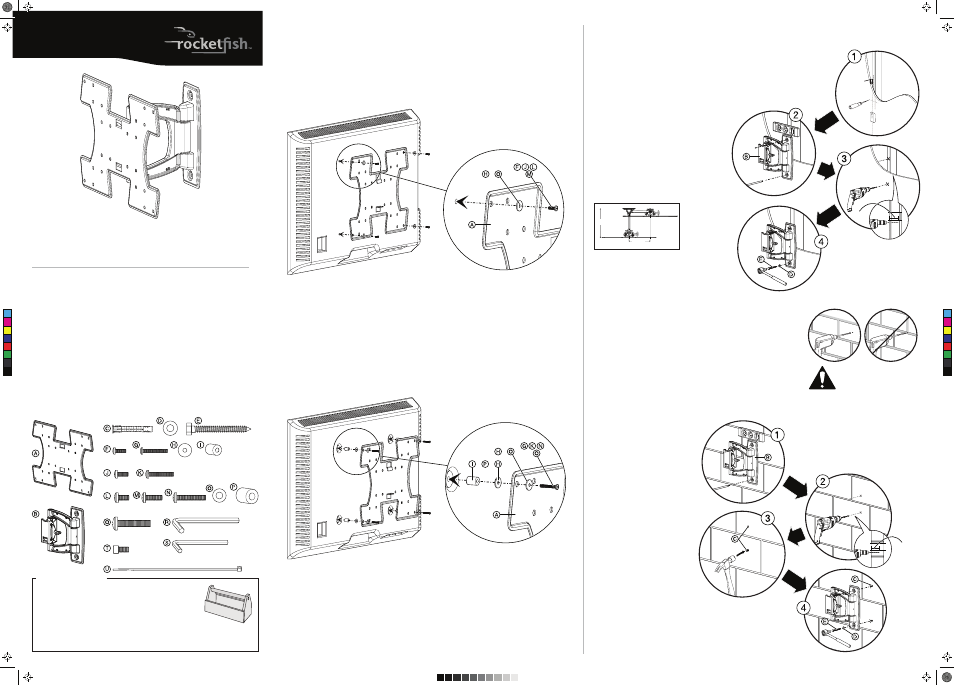

QUICK SETUP GUIDE
RF-TVMFM02
Tools you will need:
• Stud
finder
• Awl
• Pencil
• Level
• Tape
measure
• Phillips screwdriver
• Hammer (concrete only)
• Socket wrench with
1/2 in. socket or
adjustable wrench
• 7/32 in. wood drill bit
• 3/8 in. masonry drill bit
(concrete
only)
• Power drill
Package contents
A TV bracket (1)
B Arm assembly (1)
Lag bolt bag
C Concrete anchor (2)
D Lag bolt washer (2)
E 5/16 in. × 2-3/4 in. lag bolt (2)
M4 bag
F M4 × 12 mm screws (4)
G M4 × 30 mm screws (4)
H M4/M5 washers (8)
I M4/M5 spacers (4)
M5 bag
J M5 × 12 mm screws (4)
K M5 × 30 mm screws (4)
Thank you for choosing the Rocketfish RF-TVMFM02.
The RF-TVMFM02 TV mount is designed to support a
flat-panel TV weighing up to 60 lbs. (27.2 kg).
M6 bag
L M6 × 12 mm screws (4)
M M6 × 20 mm screws (4)
N M6 × 35 mm screws (4)
O M6/M8 washers (4)
P M6/M8 spacers (4)
M8 bag
Q M8 × 40 mm screws (4)
Hex key bag
R 3/16 in. hex key (1)
S 5/32 in. hex key (1)
Cap screw
T Cap screw (1)
Cable ties
U 8 in. nylon cable ties (5)
M4/M5
M6/M8 M6 × 20 mm M6 × 35 mm M6 × 12 mm
M4 × 30 mm M4 × 12 mm
M5 × 30 mm M5 × 12 mm
M4/M5
M6/M8
M8 × 40 mm
M4 bag
Cap screw
M5 bag
M6 bag
M8 bag Hex key bag
Cable ties
Lag bolt bag
5/16 in. × 2-3/4 in.
3/16 in.
5/32 in.
CAUTION: To prevent property
damage or personal injury, never
drill into mortar between blocks.
Mount wall plate directly onto the
concrete surface.
7 in.
9 7 / 10 in.
7 in.
9-7/10 in.
TV shifts 7 in. from the home position
to full extension.
