• Detach the 4 pin connector to
have a 20 pin main connector

• Plug the 20 pin connector onto
the motherboard.

• Attach the 4 pin connector to have
a 24 pin main connector

• Plug the 24 pin connector onto the
motherboard.

Installation

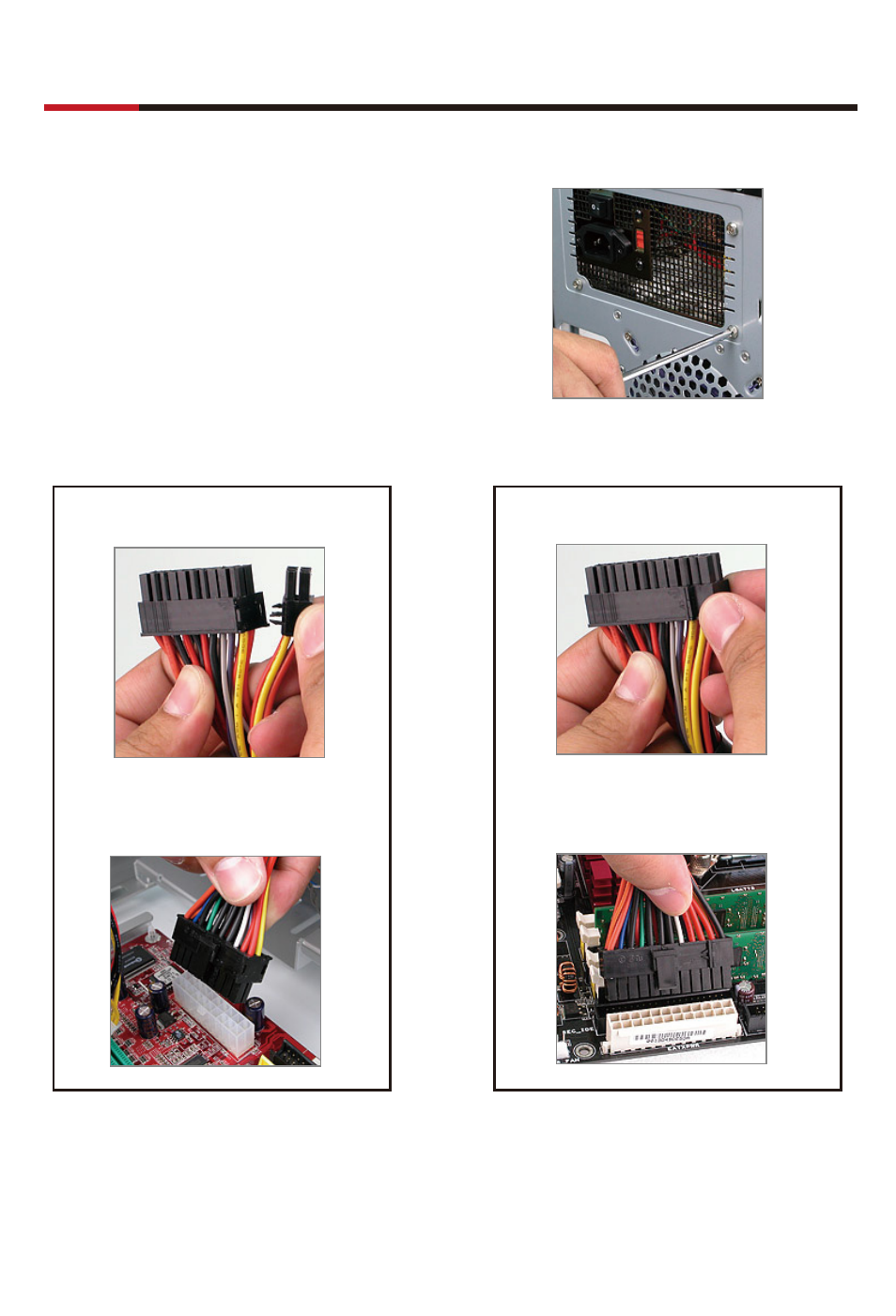

1.Installing Power supply
Affix the power supply to the case with screws.

NOTE :
1.Confirm 20 pin or 24 pin main connector your motherboard needs before the
installation.
2. 4 pin here is used for switching between 20 & 24 pin only.

2. 20+4 pin Main Connector

20pin

24pin
