Connections & Setup
Chapter 1 9
ANTENNA/
CABLE
S
-V
ID
EO
AUDIO/VIDEO OUTPUT
FIXED AUDIO
VARIABLE
AUDIO
EXTERNAL SPEAKERS
EXT/INT
LEFT RIGHT
+
TV/DVD
L/ MONO R Y P B P R
ANTENNA IN
VIDEO AUDIO
O
L
R
ANTENNA OUT
IN
OUT
VCR VIDEO AUDIO L R
CABLE
OFF-AIR ANTENNA
O
R
CMP1
CM
P
2
L/ MONO R Y P B P R
L/ MONO R V V
ID
1
S -V
ID
EO
L/ MONO R V
V
ID
2
+
R L V
R L SUBWOOFER
L
COMPONENT INPUTS
COMPOSITE INPUTS
DVI-HDTV
L/ MONO
R
DIGITAL
AUDIO
OUTPUT

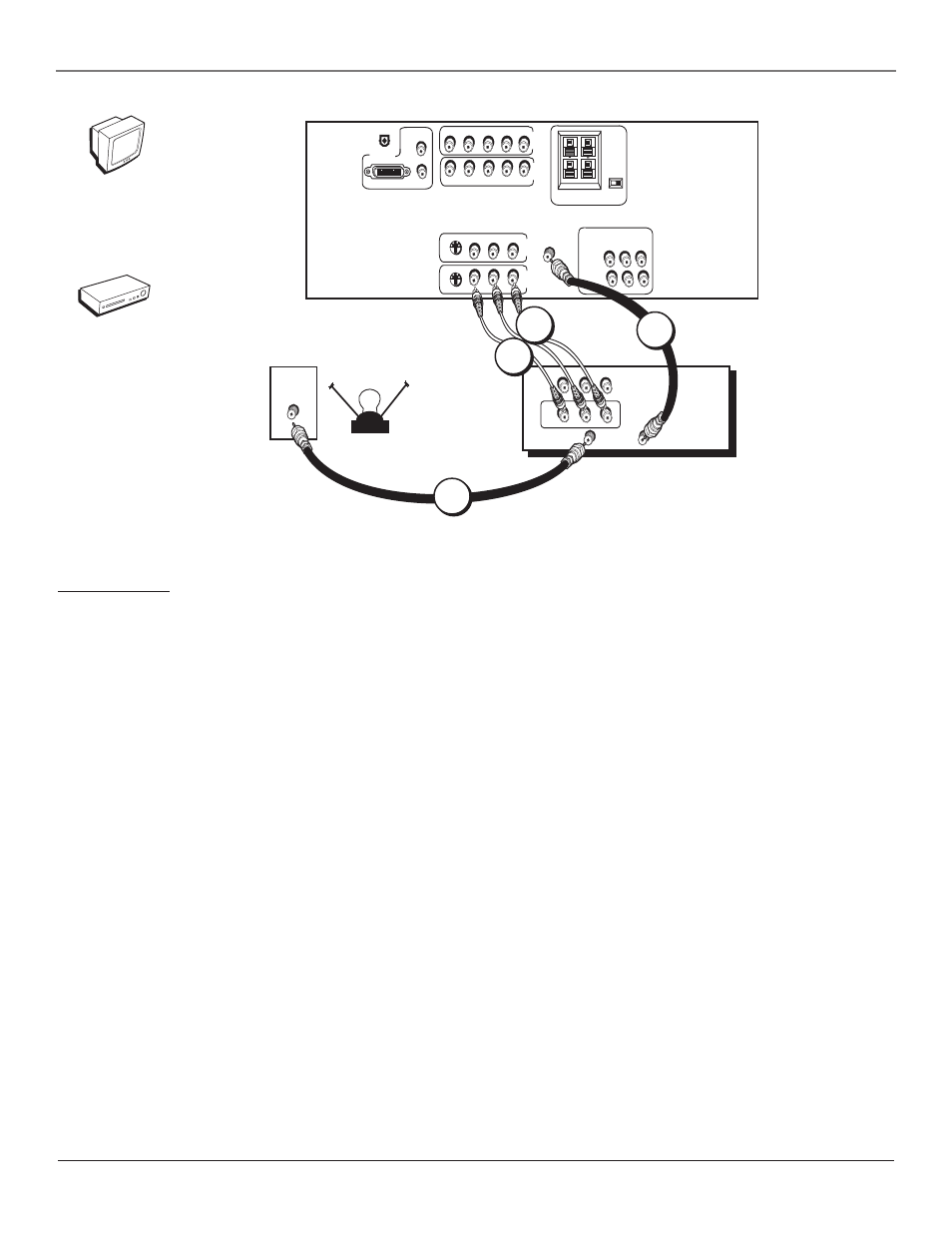

TV/DVD + VCR
1. Connect your VCR to your TV/DVD.
A. Connect a coaxial cable to the VCR’s antenna output and to the ANTENNA/CABLE Input jack on the TV/DVD.
B. Connect the audio (white and red) cables to the VID2 L/MONO and R Audio jacks on the back of the TV/DVD and to the Audio Output jacks on
the VCR.
C. Connect the video cable to the VID2 V (Video) jack on the back of the TV/DVD and to the Video Output jack on the VCR.
2. Make sure cable or antenna is connected to your VCR.
Connect the coaxial cable from your cable outlet or antenna to the antenna input on the VCR.
Go to page 13
1A
2
TV/DVD
VCR
1B
1C
