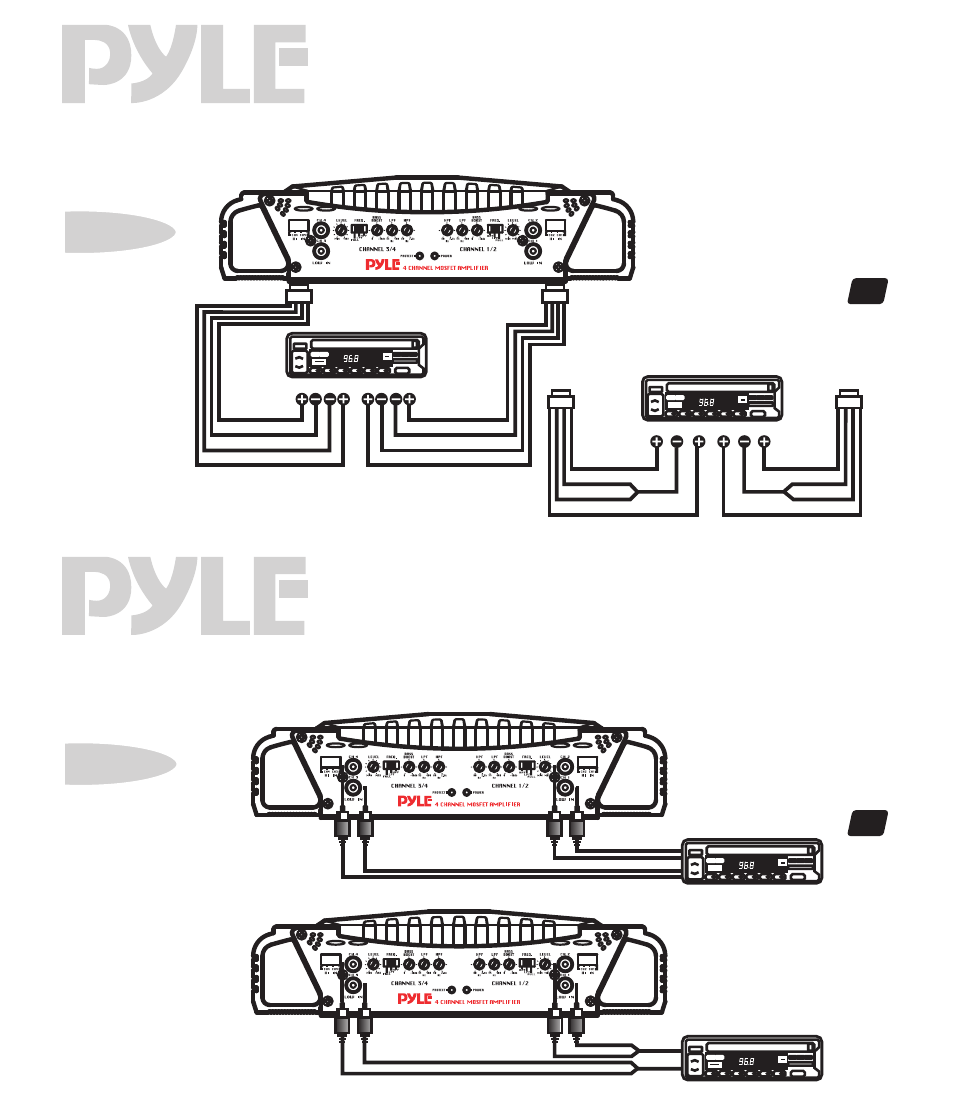

h i g h l e v e l i n p u t c o n n e c t i o n s
4 c h a m p s P L M R A 4 2 0
4 CH floating gr ound connections
from speaker terminals
L R FRONT R L REAR
ORANGE
ORANGE
ORANGE
ORANGE
BLACK
BLACK BLACK
BLACK
PLEASE NOTE! If using high level inputs, do not
use the low level RCA inputs at the same time!
CH 1/2
4 CH harness wiring for common gr ound connections
from speaker terminals
L R FRONT R L REAR
ORANGE
ORANGE
ORANGE
ORANGE
BLACK
BLACK BLACK
BLACK
CH 3/4
m o n o i n p u t c o n n e c t i o n s
4 c h a m p s P L M R A 4 2 0
4 CH mono input connections using
low level inputs
2 CH input connections using
low level inputs
head unit
LEFT FRONT Audio Outputs
LEFT REAR Audio Outputs RIGHT FRONT Audio Outputs
RIGHT REAR Audio Outputs
Y adaptors
L
R
PLMRA420
PLMRA420
