15 Connecting Inputs
3. Repeat Steps 1–2 to connect the front
right speaker’s positive (+) and negative
(–) wires to the amplifier’s
CH2 (+) and
CH2 (–) terminals.
4. Use a screwdriver to connect the sub-
woofer’s positive (+) wire to the ampli-
fier’s
CH3 (+) or CH4 (+) terminal.
5. Repeat Step 4 to connect the sub-
woofer’s negative (–) wire to the ampli-
fier’s negative (–) terminal for the same
channel you connected in Step 4. For
example, if you connected the sub-
woofer’s positive (+) wire to the ampli-
fier’s
CH3 (+) terminal, connect the
subwoofer’s negative (–) wire to the
amplifier’s
CH3 (–) terminal.
Connecting Two Unbridged Speakers and One Bridged Subwoofer
Note: CH4 (+) is used as a negative (–) termi-
nal for a bridged connection.
1. Use a screwdriver to connect the left
front speaker’s positive (+) wire to the
amplifier’s
CH1 (+) terminal.
2. Use a screwdriver to connect the left
front speaker’s negative (–) wire to the
amplifier’s
CH1 (–) terminal.
3. Repeat Steps 1–2 to connect the right
front speaker’s positive (+) and negative
(–) wires to the amplifier’s
CH2 (+) and
CH2 (–) terminals.
4. Use a screwdriver to connect the sub-
woofer’s positive (+) wire to the ampli-
fier’s
CH3 (+) terminal.
5. Repeat Step 4 to connect the sub-
woofer’s negative (–) wire to the ampli-
fier’s
CH4 (+) terminal.
6. Make sure the BRG/ST switch on the
right side of the amplifier is set to ST ,
then set the BRG/ST switch on the left
side of the amplifier to BRG .

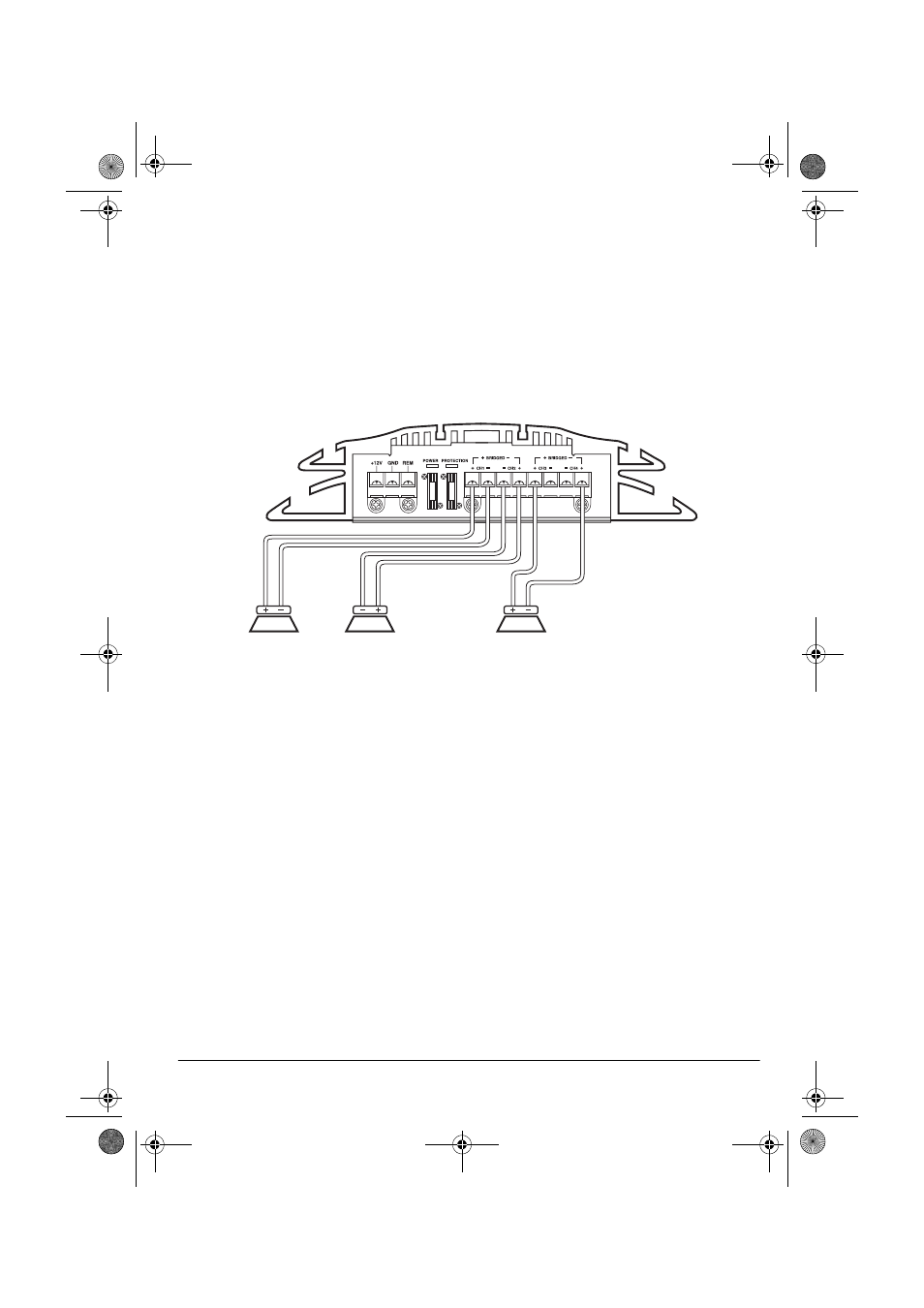

Subwoofer
CH2 Front
Right Speaker CH1 Front
Left Speaker
