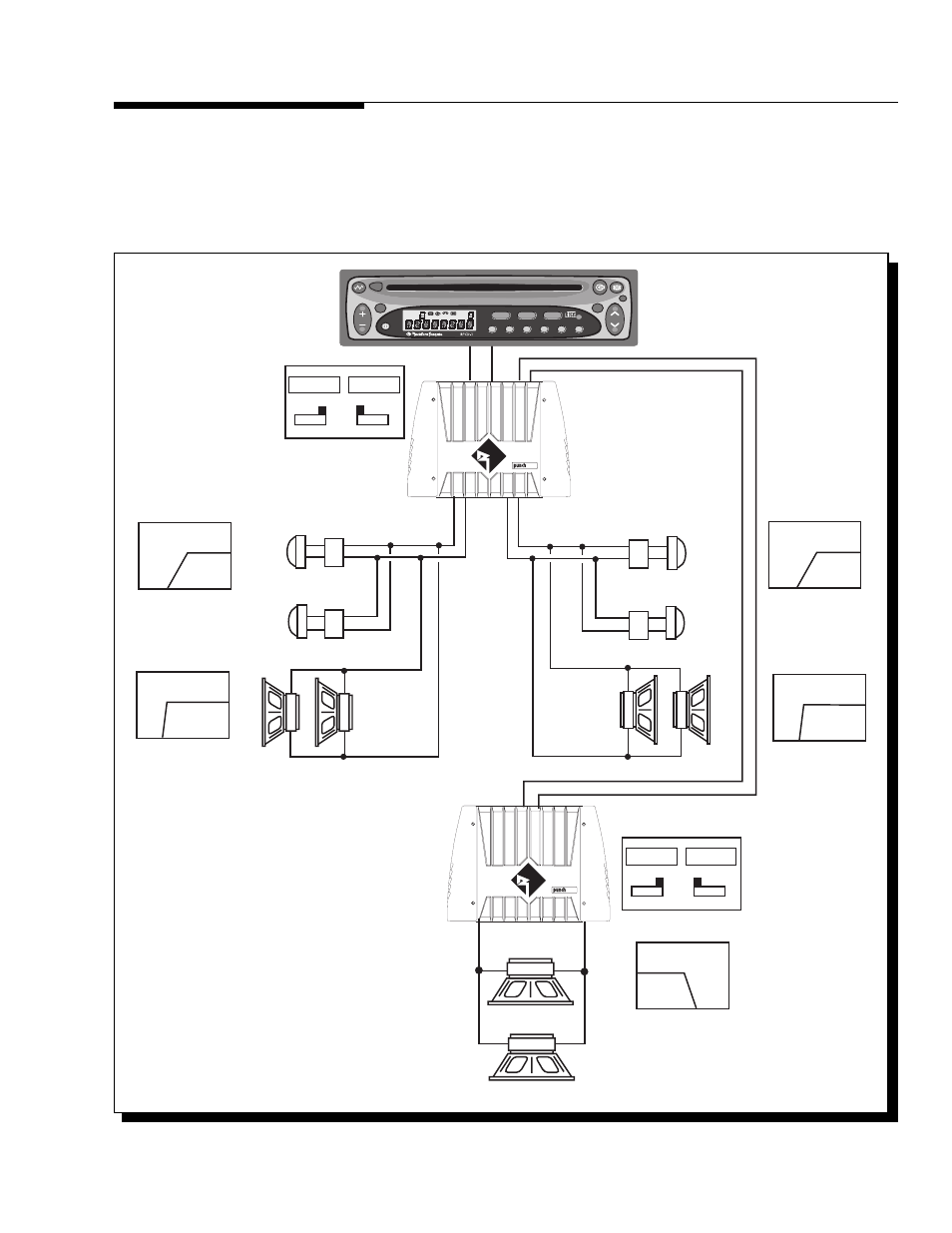

100 Watt System
(rated @ 4 ohms)
Total Power Delivery (RMS)
Tweeters 100 Watts
Midrange 100 Watts
Woofers 200 Watts
50. 2
50. 2
Pass-Thru
PWR-14X
PWR-54
4
Ω
80Hz HP 80Hz HP
80Hz LP 80Hz LP
PWR-14X
TX-4183
TX-4183
18dB/octave HP
3kHz-20kHz
18dB/octave HP
3kHz-20kHz
24dB/octave HP
80Hz-20kHz
RFR-1410
4
Ω
PWR-14X
PWR-54
4
Ω
PWR-14X
TX-4183
TX-4183
24dB/octave LP
20Hz-80Hz
24dB/octave HP
80Hz-20kHz
